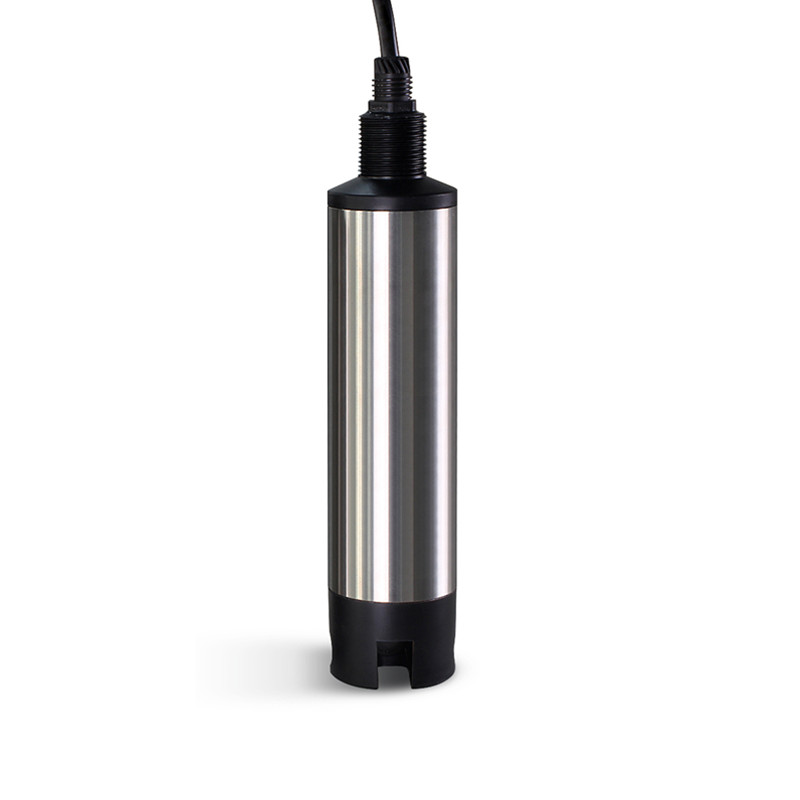

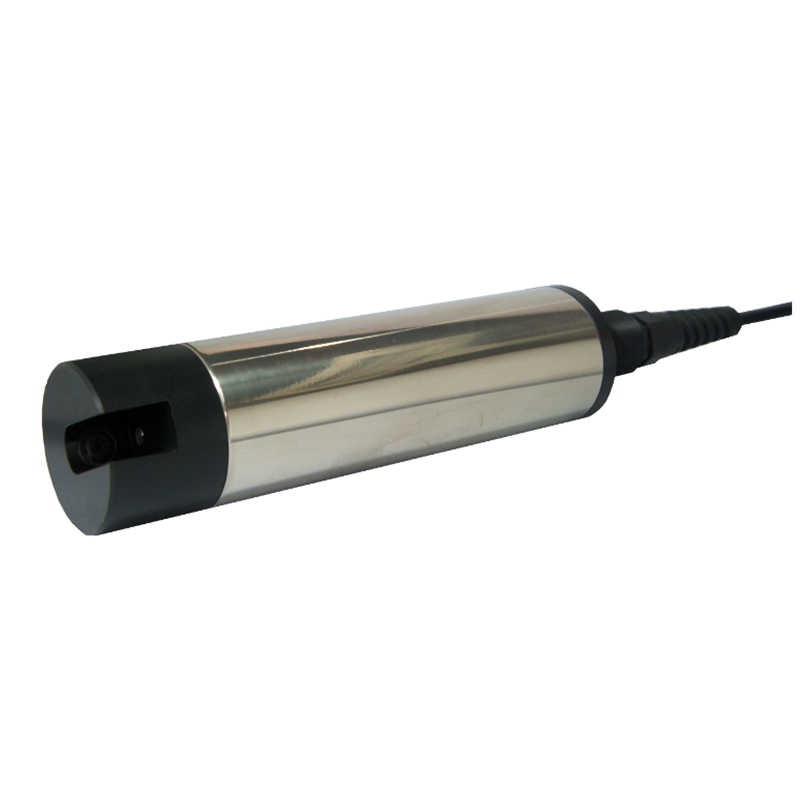

CS7820D Online Immersion Type Turbidity Sensor

Product Name:  Digital Turbidity Sensor

Product model: CS7820D

Product brand:FLUIDINGS

Power supply voltage: 9-36VDC

The principle of the turbidity sensor is based on the combined infrared absorption and scattered light method. The ISO7027 method can be used to continuously and accurately determine the turbidity value. According to ISO7027 infrared double-scattering light technology is not affected by chromaticity to determine the sludge concentration value. The self-cleaning function can be selected according to the use environment. Stable data, reliable performance; built-in self-diagnosis function to ensure accurate data; simple installation and calibration.

The electrode body is made of 316L stainless steel, which is corrosion-resistant and more durable. The seawater version can be plated with titanium, which also performs well under strong corrosion.

IP68 waterproof design, can be used for input measurement. Real-time online recording of Turbidity/MLSS/SS, temperature data and curves, compatible with all water quality meters of our company.

0.01-400NTU-2000NTU-4000NTU, a variety of measuring ranges are available, suitable for different working conditions, the measurement accuracy is less than ±5% of the measured value.


DESCRIPTION

Features:

Turbidity monitoring of water from waterworks, water quality monitoring of municipal pipeline network; industrial process water quality monitoring, circulating cooling water, activated carbon filter effluent, membrane filtration effluent,etc.

Model No.CS7820D/CS7821D/CS7830D
Power/Output9~36VDC/RS485 MODBUS RTU
Measurement mode90°IR scattered light method
DimensionsDiameter 50mm*Length 223mm
Housing materialPOM+316 Stainless steel
Waterproof ratingIP68
Measurement range0.01-400 NTU/2000NTU/4000NTU
Measurement accuracy±5% or 0.5NTU,whichever is grater
Pressure resistance≤0.3Mpa
Measuring temperature0-45℃
CalibrationStandard liquid calibration, water sample calibration
Cable lengthStandard 10m,can be extended to 100m
ThreadG3/4
InstallationImmersion type
ApplicationGeneral applications, rivers, lakes, environmental protection, etc.
