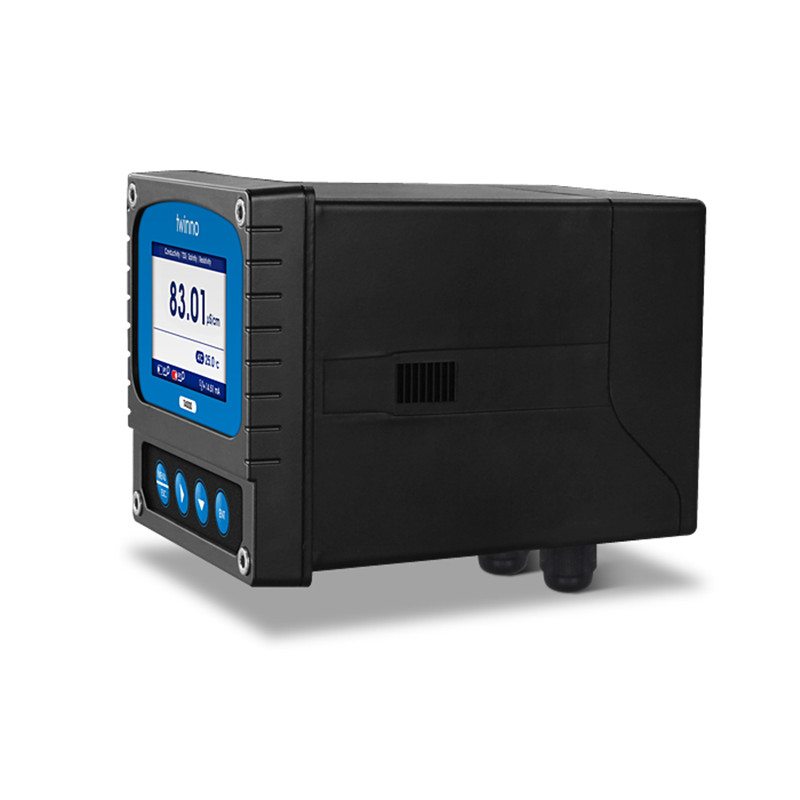

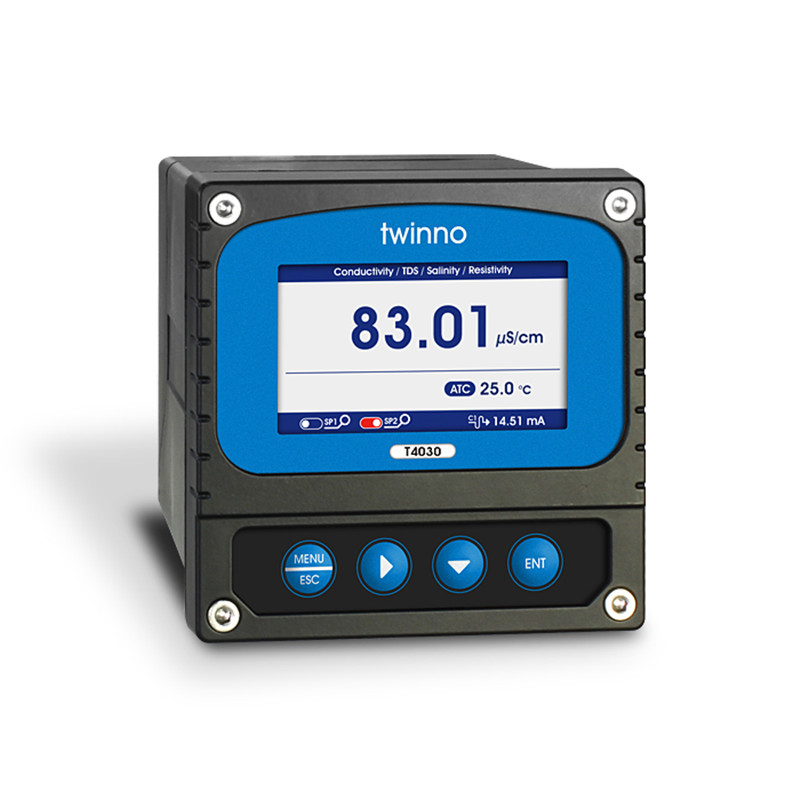

Online Conductivity / Resistivity / TDS / Salinity Meter T4030
Product Name:Online Conductivity / Resistivity / TDS / Salinity Meter
Product model:T4030
Product brand：FLUIDINGS
Power supply voltage: 9-36VDC
Industrial online conductivity meter is a microprocessor-based water quality online monitoring control instrument, the salinometer measures and supervises the salinity (salt content) by conductivity measurement in freshwater. The measured value is displayed as ppm and by comparing the measured value to a user defined alarm set point value, relay outputs are available to indicate if salinity is above or below the alarm set point value.
Features:
1. Large display, standard 485 communication, with online and offline alarm, 98*98*130mm meter size, 92.5*92.5mm hole size,3.0 inch large screen display.
2. The data curve recording function is installed, the machine replaces the manual meter reading, and the query range is arbitrarily specified, so that the data is no longer lost.
3. It can be matched with our high-quality stainless steel, PBT
quadrupole conductivity electrode, and the measurement range covers 0.00us/cm-500ms/cm to meet your measurement requirements for various working conditions.
4. Built-in conductivity/resistivity/salinity/total dissolved solids measurement functions, one machine with multiple functions,meeting the requirements of various measurement standards.
5. The design of the whole machine is waterproof and dustproof,and the back cover of the connection terminal is added to extend the service life in harsh environments.Output System
6. Panel/wall/pipe installation, three options are available to
meet various industrial site installation requirements.
| Conductivity | 0~500mS/cm |
| Resolution | 0.1us/cm;0.01ms/cm |
| Intrinsic error | ±0.5%F.S |
| Resistivity | 0~18.25MΩ/cm |
| Resolution | 0.01KΩ/cm;0.01MΩ/cm |
| TDS | 0~9999mg/L; 0~250g/L |
| Resolution | 0.01mg/L;0.01g/L |
| Salinity | 0~700ppt |
| Resolution | 0.01ppm;0.01ppt |
| Temperature | -10~150℃ |
| Resolution | ±0.3℃ |
| Temperature compensation | Automatic or manual |
| Current output | 2 Rd 4~20mA |
| Communication output | RS 485 Modbus RTU |
| Other function | Data recording, curve display, data uploading |
| Relay control contact | 2 Groups: 3A 250VAC,3A 30VDC |
| Optional power supply | 85~265VAC,9~36VDC, Power: ≤3W |
| The work environment | In addition to the earth's magnetic field around no strong magnetic field interference |
| The environmental temperature | -10~60℃ |
| Relative humidity | No more than 90% |
| Protection grade | IP65 |
| The instrument weight | 0.6kg |

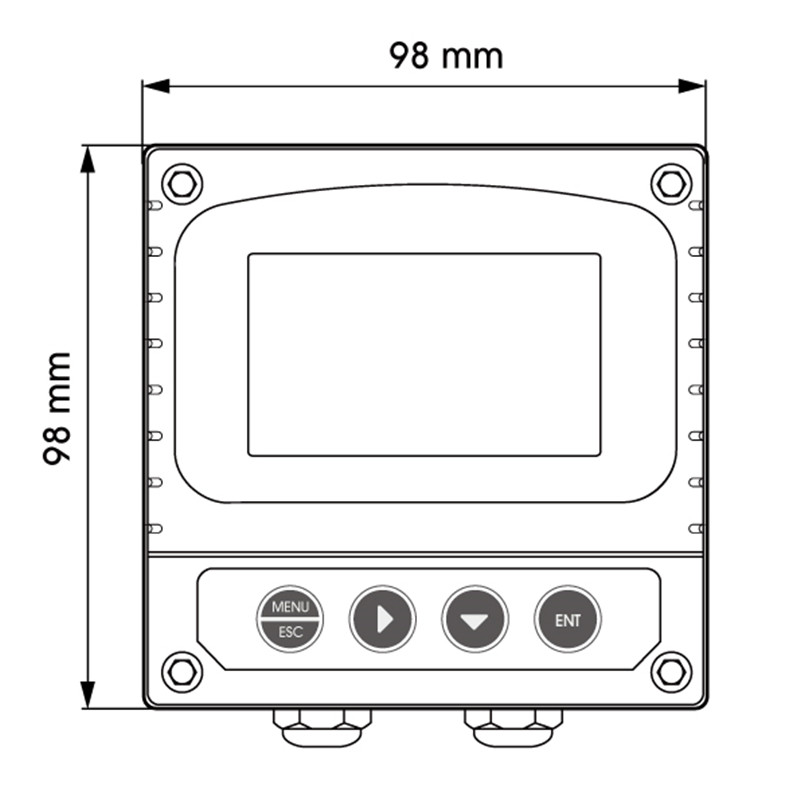

| Instrument dimensions | 98*98*130mm |

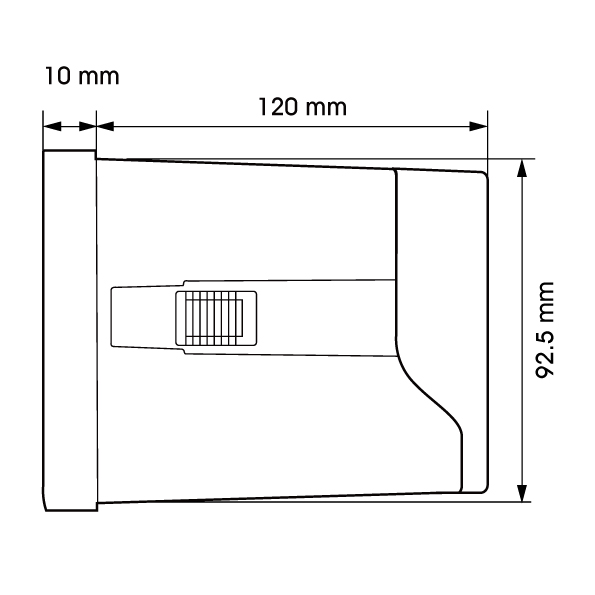

| Mounting hole dimensions | 92.5*92.5mm |
| Installation | Embedded, wall - mounted, pipeline |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
