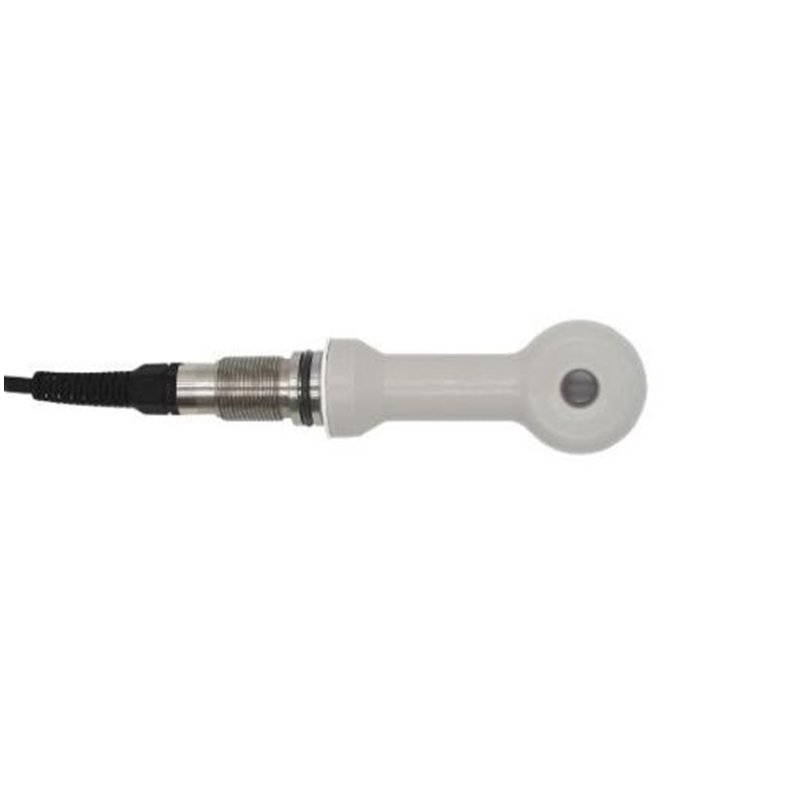

CS3790 Electromagnetic Conductivity Sensor
Product Name:Electromagnetic Conductivity Sensor
Product model:CS3790
Product brand：FLUIDINGS
Power supply voltage: 9-36VDC
Electrodeless conductivity sensor generates current in the closed loop of the solution, and then measures the current to measure the conductivity of the solution. The conductivity sensor drives the coil A, which induces alternating current in the solution; coil B detects the induced current, which is proportional to the conductivity of the solution. The conductivity sensor processes this signal and displays the
corresponding reading
The CS3790 series of electrode less conductivity sensors are available in four different water resistant materials for a wide range of applications. Electromagnetic conductivity sensor can be used in metal surface treatment and mining, chemical and refining, food and beverage, pulp and paper, textile manufacturing, water treatment,wastewater treatment and other conductivity measurement.
Features:
1.Selection of solid material, no pollution
2.Low maintenance
3.A variety of conductivity sensor installation methods, including sanitary installation
4.Optional materials: Polypropylene, PVDF, PEEK or PFA Teflon
5.Standard integrated cable
| Model No. | CS3790 |
| Measuring Mode | Electromagnetic |
| Housing Material | PFA |
| Waterproof Rating | IP68 |
| Measuring Range | 0～2000mS/cm |
| Accuracy | ±0.01%F.S |
| Pressure Range | ≤1.6Mpa (Maximum flow rate 3m/s) |
| Temperature Compensation | PT1000 |
| -20℃- 130℃(Limited by the sensor body material and | |
| Temperature Range | installation hardware only) |
| Calibration | Standard solution calibrate and field calibration |
| Connection Methods | 9 core cable |
| Cable Length | Standard 10m cable, can be extended |
| Application | Metal surface treatment and mining,chemical and refining, food and beverage,pulp and paper,textile manufacturing, water treatment, wastewater treatment and other conductivity measurement. |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
