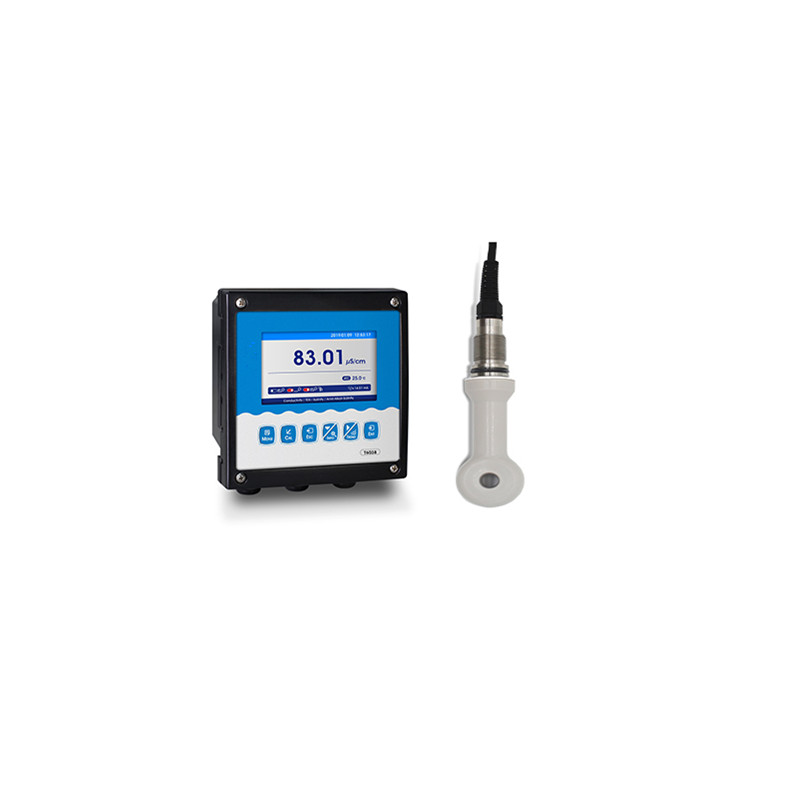

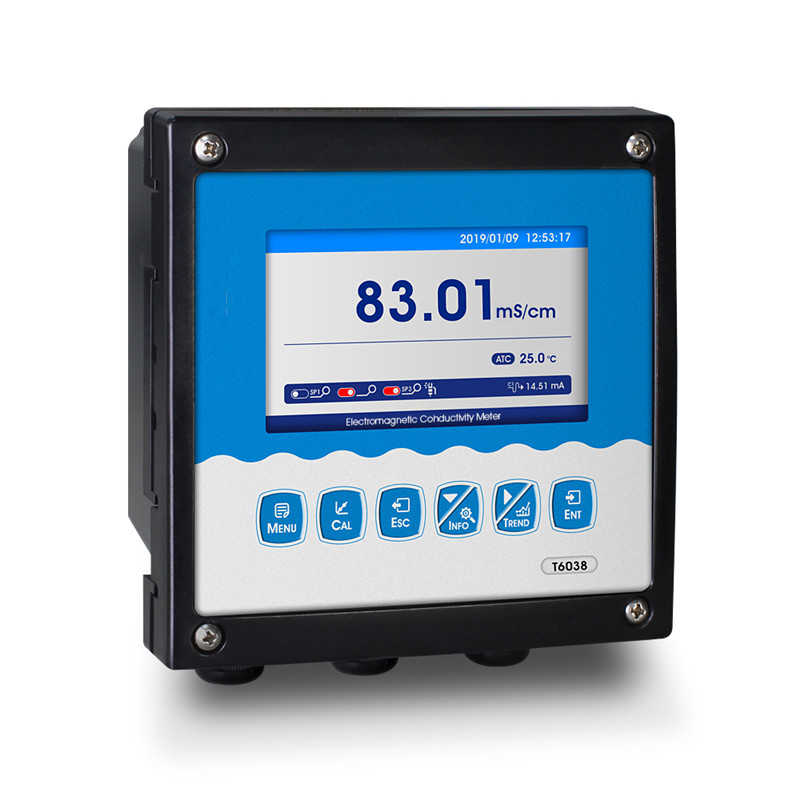

On-line Acid Electromagnetic Conductivity Transmitter T6038
Product Name:Online Acid Electromagnetic Conductivity Transmitter
Product model:T6038
Product brand：FLUIDINGS
Power supply voltage: 9-36VDC
Industrial online conductivity meter is a microprocessor-based water quality Online monitoring control instrument, the salinity meter measures and supervises the salinity (salt content) by conductivity measurement in fresh water.The measured value is displayed as percent and by comparing the measured value to a user defined alarm set point value,relay outputs are available to indicate if salinity is above or
belowthe alarm set point value
This instrument is widely used in power plants, petrochemical industry,metallurgical electronics, mining industry, paper industry, medicine, food and beverage, water treatment, modern agricultural planting and other industries. It is suitable for softening water, raw water, steam condensate water, seawater distillation and deionized water, etc. It can continuously monitor and control the Acid, Alkali, Salt Concentration and temperature of aqueous solutions.
Features:
1.Large display, standard 485 communication, with online and offline alarm,144*144*118mm meter size, 138*138mm hole size, 4.3inch large screen display.
2.The data curve recording function is installed, the machine replaces the manual meter reading, and the query range is arbitrarily specified, so that the data is no longer lost.
3.It can be matched with our high quality stainless steel, PBT quadrupole conductivity electrode, and the measurement range covers 0.00us/cm-2000ms/cm; NaOH: 0 - 16%; CaCL2: 0 -22%; NaCL: 0 - 10%; HCL: 0~18%, 22%~36% to meet your measurement requirements for various working conditions.
4.Built in conductivity/resistivity/salinity/total dissolved solids measurement functions,one machine with multiple functions,meeting the requirements of various measurement standards.
5.The design of the whole machine is waterproof and dustproof,and the back cover of the connection terminal is added to extend the service life in harsh environments.
6.Panel/wall/pipe installation,three options are available to meet various industrial site installation requirements.
| Conductivity | 0 ~ 2000ms/cm |
| HCL | 0~18%, 22 ~ 36% |
| NaOH | 0 ~ 16% |
| NaCL | 0 ~ 10% |
| CaCL2 | 0 ~ 22% |
| Temperature | -10~150℃ |
| Resolution | ±0.3℃ |
| Temperature compensation | Automatic or manual |
| Current output | 2 Rd 4~20mA |
| Communication output | RS 485 Modbus RTU |
| Other function | Data recording, curve display, data uploading |
| Relay control contact | 3 Groups: 5A 240VAC,5A 28VDC or 120VAC |
| Optional power supply | 85~265VAC,9~36VDC, Power: ≤3W |
| The work environment | In addition to the earth's magnetic field around no strong magnetic field interference |
| The environmental temperature | -10~60℃ |
| Relative humidity | No more than 90% |
| Protection grade | IP65 |
| The instrument weight | 0.8kg |
| Instrument dimensions | 144*144*118mm |
| Mounting hole dimensions | 138*138mm |
| Installation | Embedded, wall - mounted, pipeline |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
