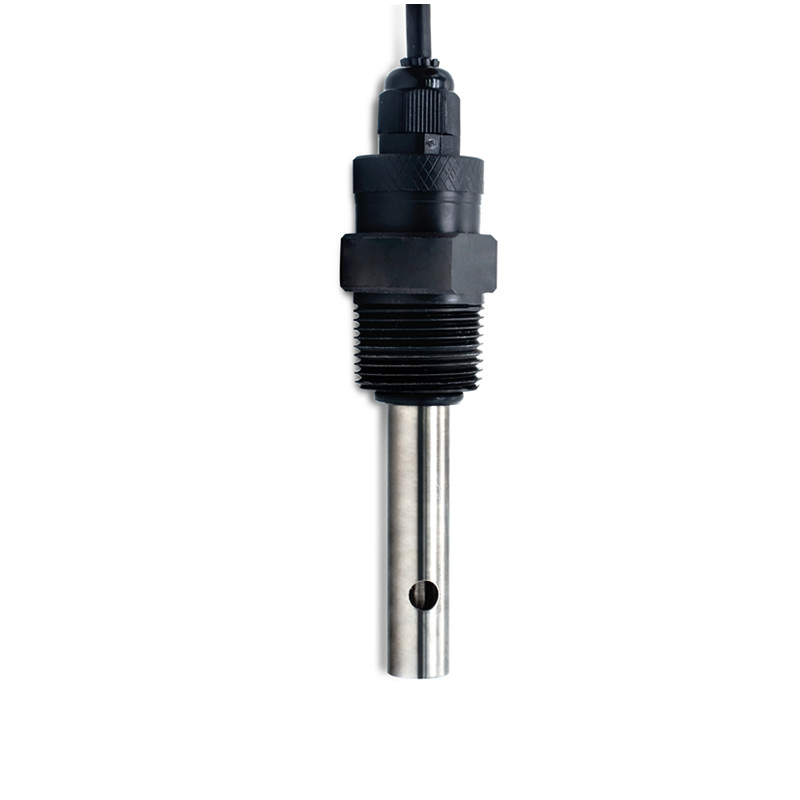

CS3523 Conductivity Sensor

Product Name:Conductivity Sensor

Product model:CS3523

Product brand:FLUIDINGS

Power supply voltage: 9-36VDC

Measuring specific conductivity of aqueous solutions is becoming increasingly important for determining impurities in water.The measurement accuracy is greatly affected by temperature variation, polarization of the contact electrode surface, cable capacitance, etc.Twinno has designed a variety of sophisticated sensors and meters that can handle these measurements even in extreme conditions.

Suitable for low conductivity applications in the semiconductor, power, water and pharmaceutical industries, these sensors are compact and easy to use.The meter can be installed in several ways, one of which is through the compression gland, which is a simple and effective method of direct insertion into the process pipeline.

The sensor is made from a combination of FDA-approved fluid receiving materials.This makes them ideal for monitoring pure water systems for the preparation of injectable solutions and similar applications.In this application, the sanitary crimping method is used for installation.


DESCRIPTION


Features:


Model No.CS3523
Cell constantK=0.01
Electrode type2-electrode Conductivity sensor
Measure materialTitanium alloy
Waterproof ratingIP68
Measurement range0.01-20.00us/cm
Accuracy±1%F.S
Pressure resistance≤0.8Mpa
Temperature compensationPT1000 ATC
Temperature range-10-80℃
Measuring/Storage Temperature0-45℃
CalibrationSample calibration, standard liquid calibration
Connection methods4 core cable
Cable lengthStandard 5m cable, can be extended to 100m
Installation threadPG13.5, NPT3/4” or NPT1/2” (Optional)
ApplicationUltra-Pure Water


application area

safety

environmental protection

oil

chemical

pharmaceutical

metallurgy

coal chemical industry
