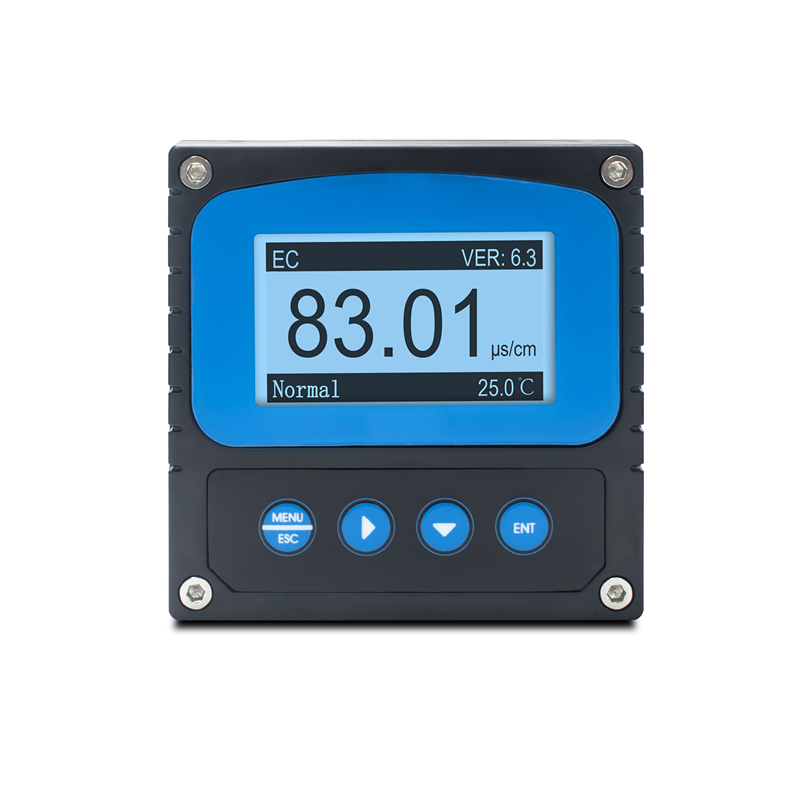

Features:

1.Color LCD Display

2.Intelligent menu operation

3.Multiple signal output modes

4.Manual or automatic temperature compensation

5.Two sets of relay control switches

6.High & low alarm, hysteresis control

7.Display pH/ORP, temperature, state, etc. on

8.the same interface

9.With password protect function to prevent

10.misoperation by non-staff

(1)Measurement range:

Conductivity:0~500mS/cm;

TDS:0~250g/L;

Temperature:0~150.0℃;

(2)Resolution:

Conductivity:0.01μS/cm;0.01mS/cm;

TDS:0.01mg/L;0.01g/L;

Temperature:0.1℃;

(3)Intrinsic error:±0.5%F.S;

Temperature:±0.3℃;

(4)Stability:±0.2%F.S/24h;

(5)Current outlet:

0/4~20mA(load resistance<750Ω);

20~4mA(load resistance<750Ω);

(6) Communication output:

RS485 MODBUS RTU;

(7)Two sets of relay control contacts:

3A 250VAC,3A 30VDC;

(8)Power supply (selection):

85~265VAC±10%,50±1Hz,power ≤3W;

9~36VDC,power consumption≤3W;

(9)Dimensions:98x98x130mm;

(10)Installation:Panel or wall mounting;

Panel hole opening size:93x93mm;

(11)Protection level:IP65;

(12)Weight:0.6kg;

(13)Working environment:

Operating temperature:-10~60℃;

Relative humidity: ≤90%

No strong magnetic field except the

geomagnetic field
