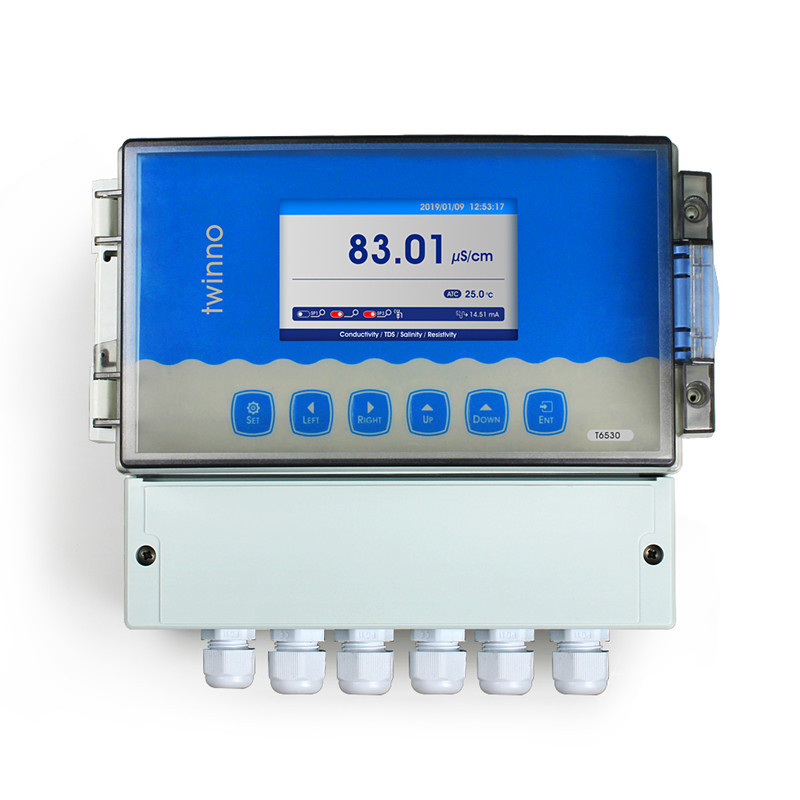

T6530 Online Conductivity / Resistivity / TDS / Salinity Meter
Product Name: Online Conductivity
Product model:T6530
Product brand:FLUIDINGS
Power supply voltage: 9-36VDC
Industrial online conductivity meter is a microprocessor-based water quality online monitoring control instrument. This instrument is widely used in power plants, petrochemical industry, metallurgical electronics, mining industry, paper industry, medicine, food and beverage, water treatment, modern agricultural planting and other industries.It is suitable for softening water, raw water, steam condensate water, seawater distillation and deionized water, etc. It can continuously monitor and control the conductivity, resistivity, TDS, salinity and temperature of aqueous solutions.
Features:
1.Color LCD Display.
2.Intelligent menu operation.
3.Data Recording & Curve Display.
4.Manual or automatic temperature compensation.
5.Three sets of relay control switches.
6.High& low alarm,and hysteresis control.
7.4-20mA&RS485Multiple output modes.
8.Display measurements, temperature, state, etc. on the same interface.
9.Password protection function to prevent
(1)Measuring range:
Conductivity: 0~500mS/cm;
Resistivity: 0~18.25MΩ/cm;
TDS: 0~250g/L;
Salinity: 0~700PPT; 0~70%; 0~700g/L;
Temperature: -10~150.0ºC;
(2)Resolution:
Conductivity: 0.01μS/cm; 0.01mS/cm;
Resistivity: 0.01KΩ/cm; 0.01MΩ/cm;
TDS: 0.01mg/L; 0.01g/L;
Salinity: 0.01PPT; 0.1%; 0.01mg/L;
Temperature: 0.1ºC;
(3)Basic error:±0.5%F.S;
Temperature:±0.3ºC;
(4)Stability:±0.2%F.S/24h;
(5)Two current output:
0/4~20mA(load resistance<750Ω);
20~4mA(load resistance<750Ω);
(6)Signal output:RS485 MODBUS RTU;
(7) Three sets of relay control contacts:
5A 250VAC,5A 30VDC;
(8)Power supply:
85~265VAC±10%,50±1Hz,power ≤3W;
9~36VDC,power consumption≤3W;

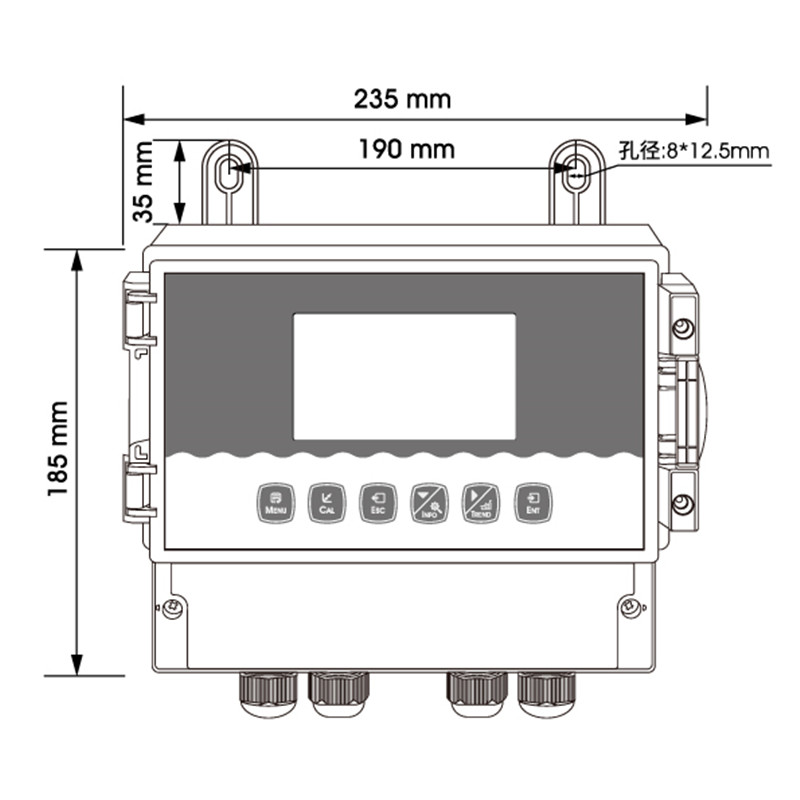

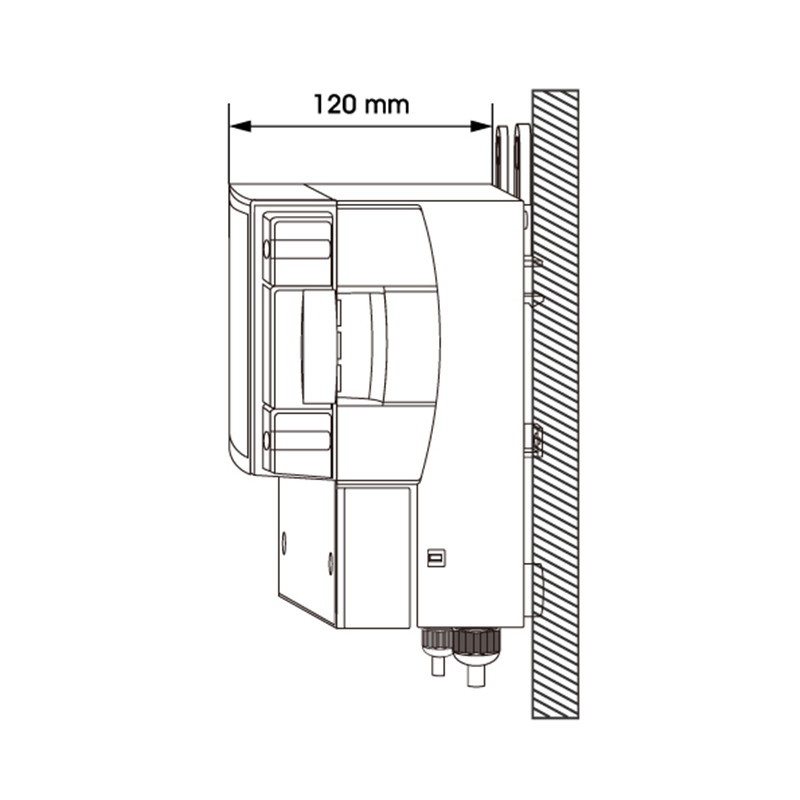

(9)Dimensions:235x185x120mm;
(10)Installation: wall mounting;
(11)Protection level:IP65;
(12)Weight:1.5kg;
(13)Working environment:
Operating temperature:-10~60ºC;
Relative humidity: ≤90%;
No strong magnetic field interference except the geomagnetic field.
