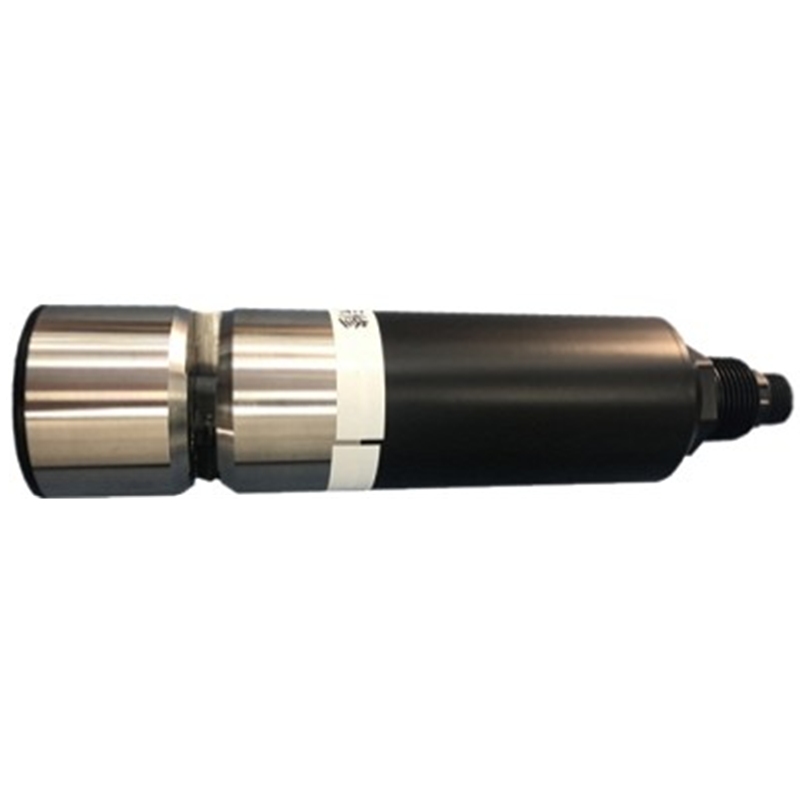

CS6604D Digital COD Sensor
Product Name:Digital COD Sensor
Product model:CS6604D
Product brand：FLUIDINGS
Power supply voltage: 9-36VDC
COD sensor is a UV absorption COD sensor, combined with a lot of application experience, based on the original basis of a number of upgrades, not only the size is smaller, but also the original separate cleaning brush to do one, so that the installation is more convenient, with higher reliability.
It does not need reagent, no pollution, more economic and environmental protection.On-line uninterrupted water quality monitoring.Automatic compensation for turbidity interference, with automatic cleaning device, even if long-term monitoring still has excellent stability.
Features:
1.Digital sensor, RS-485 output, support Modbus
2.No reagent, no pollution, more economic and environmental protection Automatic compensation of turbidity interference, with excellent test performance
3.With self-cleaning brush, can prevent biological attachment, maintenance cycle more
| Model No. | CS6602D |
| Power/Output | 9~36VDC/RS485 MODBUS |
| Measure methods | UV light source |
| Housing material | SUS316L+POM |
| Size | 50mm *215mm |
| Waterproof rating | IP68 |
| Measurement range | 0~500mg/L |
| Resolution | 0.1mg/L |
| Accuracy | ±5% |
| Pressure range | ≤0.3Mpa |
| Temperature range | 0-50℃ |
| Connection methods | 4 core cable |
| Cable length | Standard 10m cable or extend to 100m |
| Application | General application, tap water, drink water, environmental protection, etc. |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
