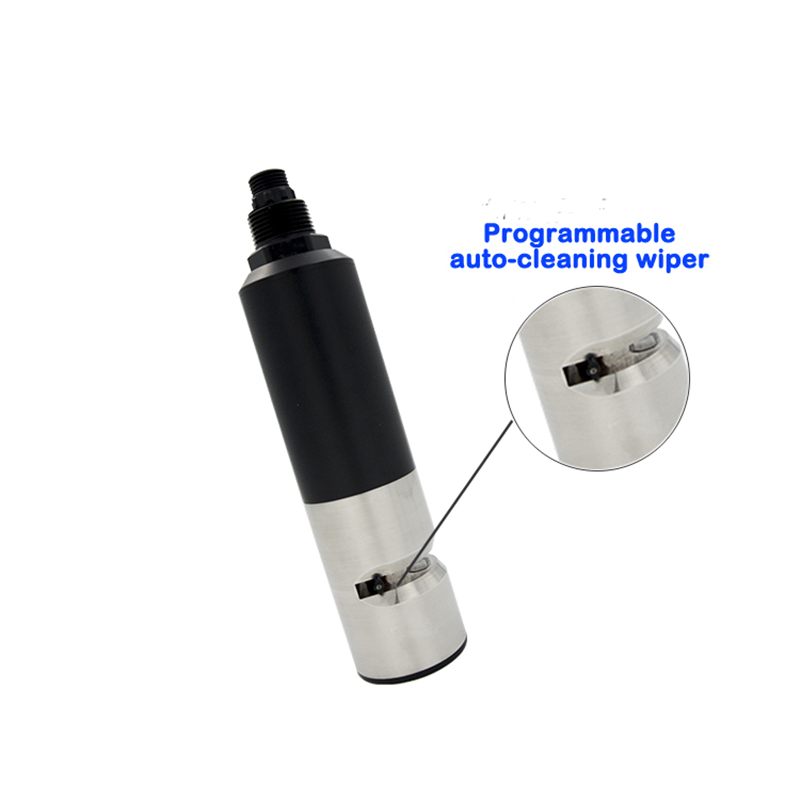

CS6604D Digital COD Sensor

Product Name:Digital COD Sensor

Product modelCS6604D

Product brand:FLUIDINGS

Power supply voltage: 9~36VDC

DG-Y551-B UV254 probe features highly reliable UVC LED for light absorption measurement. This proven technology provides reliable and accurate analysis of organic pollutants for water quality monitoring at low cost and low maintenance. With rugged design, and integrated turbidity compensation, it is an excellent solution for continuous monitoring of source water, surface water, municipal and industrial waste waters.


DESCRIPTION

Features:

1. Modbus RS-485 output for easy system integration

2. Programmable auto-cleaning wiper

3. No chemicals, direct UV254 spectral absorption measurement

4. Proven UVC LED technology, long lifetime, stable and instant measurement

5. Advanced turbidity compensation algorithm

Name

Parameter

Interface

Support RS-485, MODBUS protocols

COD Range

0.75 to 370mg/L equiv.KHP

COD Accuracy

<5% equiv.KHP

COD Resolution

0.01mg/L equiv.KHP

TOC Range

0.3 to 150mg/L equiv.KHP

TOC Accuracy

<5% equiv.KHP

TOC Resolution

0.1mg/L equiv.KHP

Tur Range

0-300 NTU

Tur Accuracy

<3% or 0.2NTU

Tur Resolution

0.1NTU

Temperature Range

+5 ~ 45℃

Housing IP Rating

IP68

Maximum pressure

1 bar

User Calibration

one or two points

Power Requirements

DC 12V +/-5%,current<50mA(without wiper)

Sensor OD

50 mm

Sensor Length

214 mm

Cable Length

10m (default)


application area

safety

environmental protection

oil

chemical

pharmaceutical

metallurgy

coal chemical industry

storage
