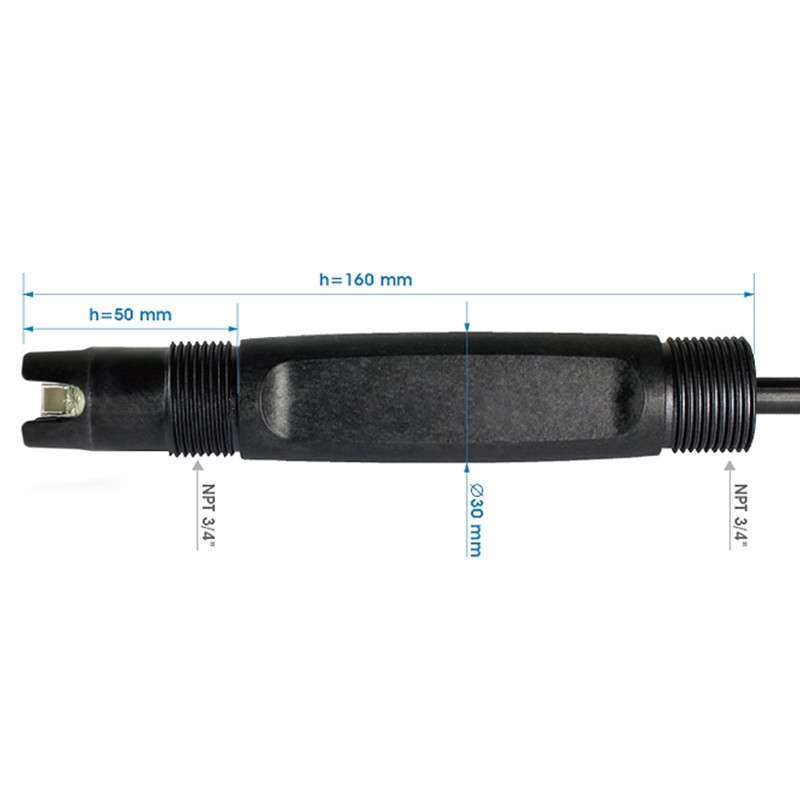

CS3740D Digital Conductivity Electrode
Product Name: Digital Conductivity Sensor
Product model:CS3740D
Product brand：FLUIDINGS
Power supply voltage: 9-36VDC
Easy to connect to PLC, DCS, industrial control computers, general purpose controllers, paperless recording instruments or touch screens and other third party devices.
Measuring specific conductivity of aqueous solutions is becoming increasingly important for determining impurities in water.The measurement accuracy is greatly affected by temperature variation, polarization of the contact electrode surface, cable capacitance, etc.Twinno has designed a variety of sophisticated sensors and meters that can handle these measurements even in extreme conditions.
DESCRIPTION
Features:
| Model Number | CS3740D |
| Power supply/Signal output | 9~36VDC/RS485 MODBUS RTU |
| Measure material | Graphite(4 Electrode) |
| Housing material | PP+ |
| Waterproof rating | IP68 |
| Measurement range | Con：0-500ms/cm；TDS：0-250g/L； |
| Salinity：0-700ppt；0-70%；0-700g/L | |
| Accuracy | ±1%F.S |
| Pressure resistance | ≤0.6Mpa |
| Temperature compensation | NTC10K |
| Temperature range | 0-80℃ |
| Calibration | Sample calibration, standard liquid calibration |
| Connection methods | 4 core cable |
| Cable length | Standard 10m cable, can be extended to 100m |
| Installation thread | NPT3/4’’ |
| Application | General application, river, lake, sea water, industrial water and so on. |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
