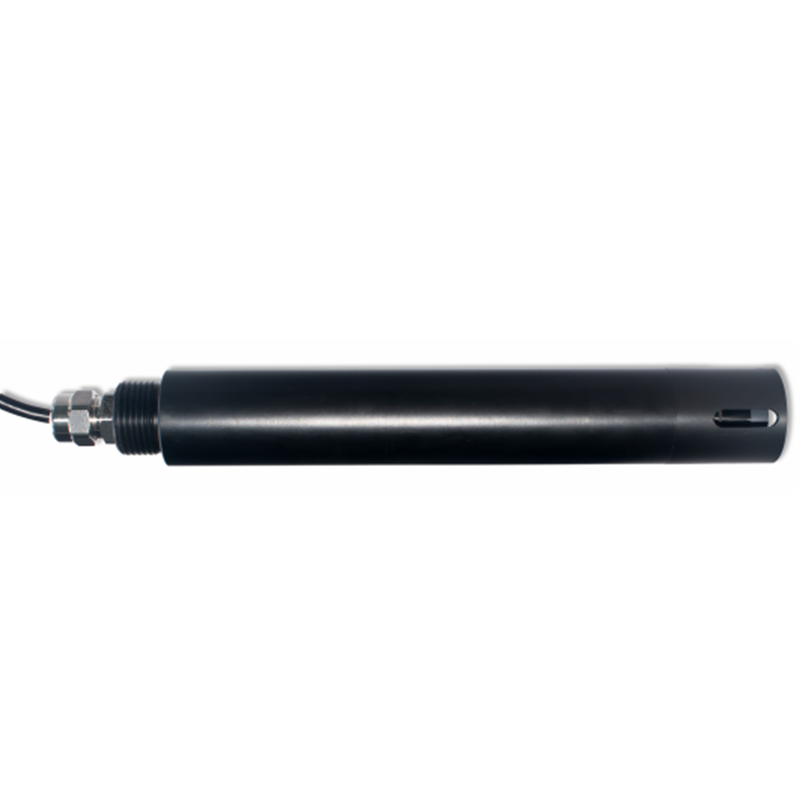

Digital conductivity sensor series CS3740ZD
Product Name: Digital Conductivity Sensor
Product model:CS3740ZD
Product brand：FLUIDINGS
Power supply voltage: 9-36VDC
CS3740ZD Digital Conductivity Sensor: Conductivity sensor technology is an important field of engineering technology research, suitable for high-conductivity applications in semiconductor, electric power, water and pharmaceutical industries. These sensors are compact and easy to use. Determining the specific conductivity of an aqueous solution is more and more important for determining the impurities in the water. The measurement accuracy is greatly affected by factors such as temperature changes, surface polarization of contact electrodes, and cable capacitance.
Features:
1.large sensitive area fast response, stable signal
2.PP material，Work well at 0~60℃
3.The lead is made of pure copper, which can directly realize remote transmission, which is more accurate and stable than the lead signal of copper-zinc alloy.
| Parameter | CS3740ZD |
| Power Supply | 9~36VDC |
| Output Signal | RS485 or 4-20mA |
| Measure Materials | Graphite |
| Housing Materials | PP |
| Waterproof | IP68 |
| Measured Range | EC：0-500000us/cm |
| TDS：0-250000mg/L | |
| Salinity：0-700ppt | |
| Accuracy | ±1%F.S |
| Pressure Range | ≤0.6Mpa |
| Temp Compensation | NTC10K |
| Temp Range | 0-50℃ |
| Calibration | Sample and standard liquid calibration |
| Wire Connection | 4 or 6 core cable |
| Cable Length | 10 m or Customized |
| Thread | NPT3/4 |
| Application | River water, lake, drinking water, etc |
| Cable Length | 10m (default) |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
