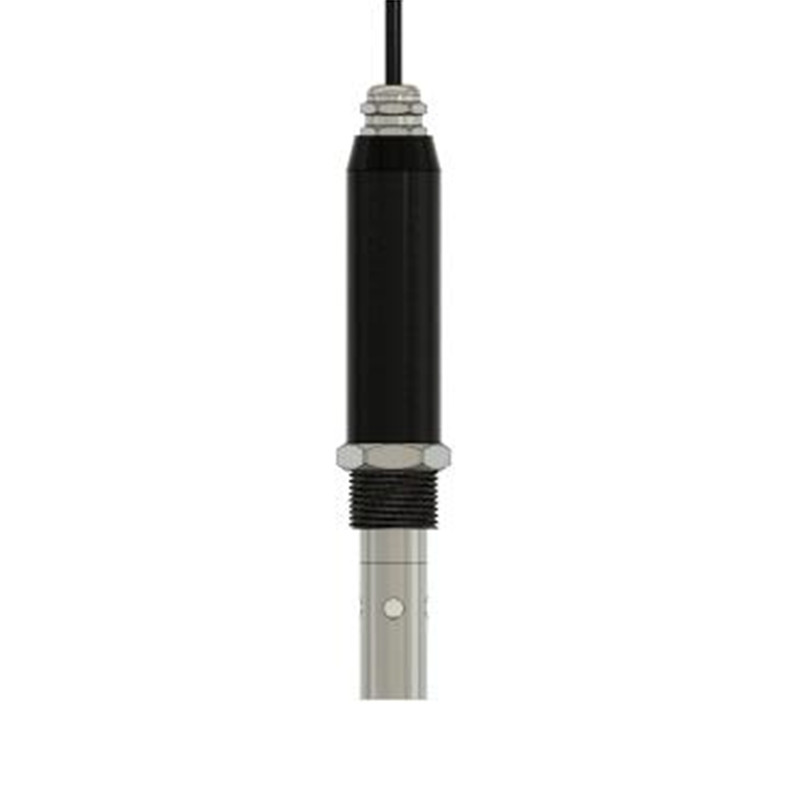

CS3742D Conductivity Sensor

Product Name:Conductivity Sensor

Product model:CS3742D

Product brand:FLUIDINGS

Power supply voltage: 9-36VDC

Designed for Pure, Boiler Feed water, Power Plant, Condensate Water.

Easy to connect to PLC, DCS, industrial control computers, general purpose controllers, paperless recording instruments or touch screens and other third party devices.Measuring specific conductivity of aqueous solutions is becoming increasingly important for determining impurities in water.The measurement accuracy is greatly affected by temperature variation, polarization of the contact electrode surface, cable capacitance, etc.Twinno has designed a variety of sophisticated sensors and meters that can handle these measurements even in extreme conditions.


DESCRIPTION

Features:

Model NO.CS3742D
Power/Outlet9~36VDC/RS485 MODBUS RTU
Cell constantK=0.1
Measure materialGraphite (2 Electrode)
Housing materialPP
Waterproof gradeIP68
Measurement range1-1000us/cm
Accuracy±1%F.S
Pressure resistance≤0.6Mpa
Temperature compensationNTC10K
Temperature range0-130℃
CalibrationSample calibration, standard liquid calibration
Connection methods4 core cable
Cable lengthStandard 10m cable, can be extended to 100m

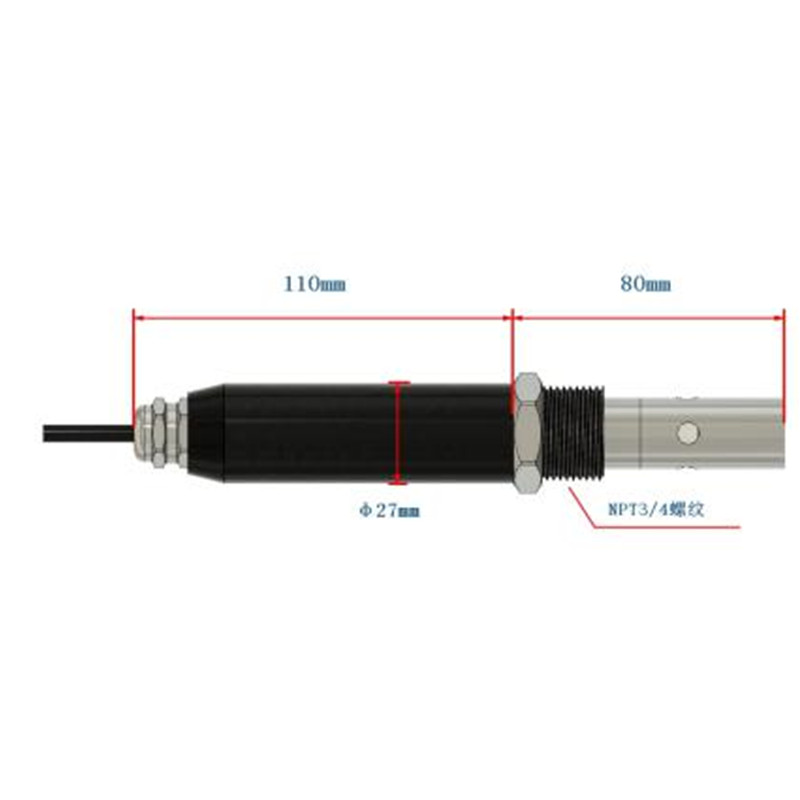

Installation threadNPT3/4’’
ApplicationGeneral application, river, lake , drink water,etc.


application area

safety

environmental protection

oil

chemical

pharmaceutical

metallurgy

coal chemical industry

storage
