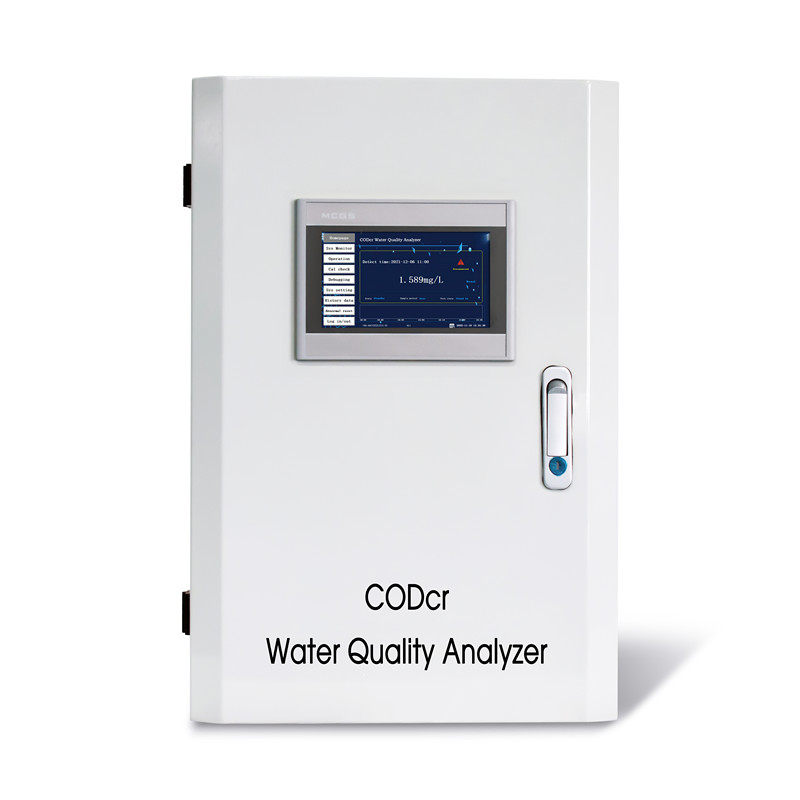

T9000 CODcr Water Quality On-line Automatic Monitor
Product Name:CODcr Water Quality On-line Automatic Monitor
Product model：T9000
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
Chemical oxygen demand (COD) refers to the mass concentration of oxygen consumed by oxidants when oxidizing organic and inorganic reducing substances in water samples with strong oxidants under certain conditions. COD is also an important index reflecting the degree of pollution of water by organic and inorganic reducing substances.
The analyzer can work automatically and continuously for a long time without attendance according to the site settings. It is widely used in industrial pollution source discharge wastewater, industrial process wastewater, industrial sewage treatment plant wastewater, municipal sewage treatment plant wastewater and other occasions. According to the complexity of site test conditions, the corresponding pretreatment system can be selected to ensure the test process is reliable,test results are accurate, and fully meet the needs of different occasions.
Features:
Water samples, potassium dichromate digestion solution, silver sulfate solution (silver sulfate as catalyst can be added to oxidize linear aliphatic compounds more effectively) and concentrated sulfuric acid mixture heated to 175℃. The color of organic compounds in dichromate ion oxidation solution will change. The analyzer detects the color change and converts the change into COD value then output the value.The amount of dichromate ion consumed is equivalent to the amount of oxidizable organic matter, namely COD.
| No. | Name | Technical Specifications |
| 1 | Application Range | Suitable for wastewater with COD in the range of 10~5,000mg/L and chloride concentration less than 2.5g/L Cl-. According to customers' actual demand, it can be extended to wastewater with chloride concentration less than 20g/L Cl-. |
| 2 | Test Methods | Potassium dichromate digestion at high temperature, colorimetric determination |
| 3 | Measuring range | 10~5,000mg/L |
| 4 | Lower limit of Detection | 3 |
| 5 | Resolution | 0.1 |
| 6 | Accuracy | ±10% or ±8mg/L(Take the bigger value) |
| 7 | Repeatability | 10% or 6mg/L(Take the larger value) |
| 8 | Zero Drift | ±5mg/L |
| 9 | Span Drift | ±10% |
| 10 | Measurement cycle | Minimum 20 minutes. According to the actual water sample, the digestion time can be set from 5 to120 minutes. |
| 11 | Sampling period | Time interval (adjustable), integral hour or trigger measurement mode can be set. |
| 12 | Calibration | Automatic calibration (1-99 days adjustable), according to actual water samples, manual calibration can be set. |
| cycle | ||
| 13 | Maintenance cycle | Maintenance interval is more than one month, about 30 minutes each time. |
| 14 | Human-machine operation | Touch screen display and instruction input. |
| 15 | Self checking protection | Working status is self-diagnostic, abnormal or power failure will not lose data. Automatically eliminates residual reactants and resumes work after abnormal reset or power failure. |
| 16 | Data storage | No less than half a year data storage |
| 17 | Input interface | Switch quantity |
| 18 | Output interface | Two RS485 digital output, One 4-20mA analog output |
| 19 | Working Conditions | Working indoors; temperature 5-28℃; relative humidity≤90% (no condensation,no dew) |
| 20 | Power Supply Consumption | |
| AC230±10%V, 50~60Hz, 5A | ||

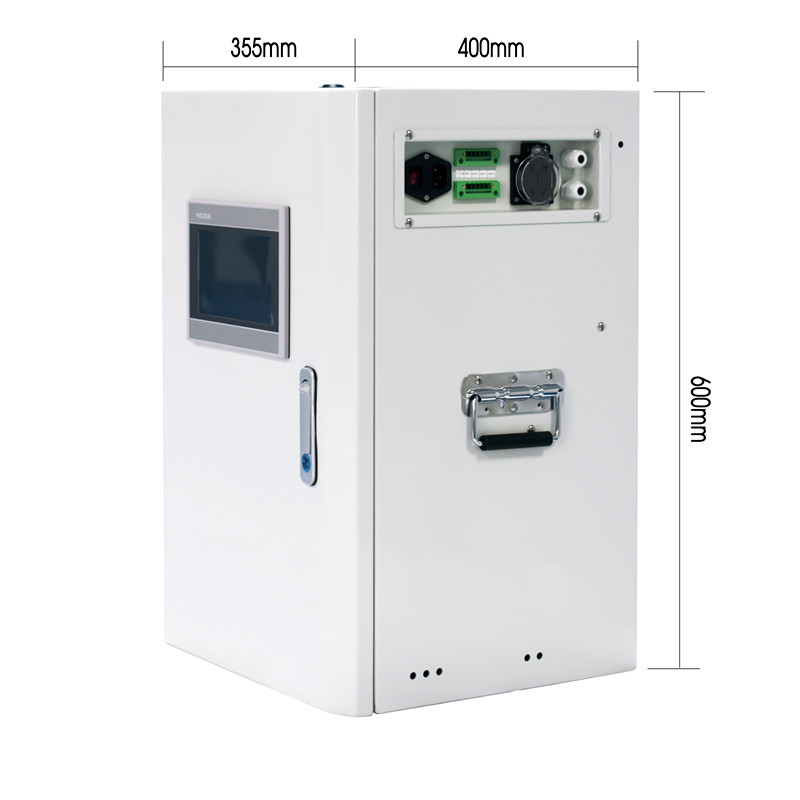

| 21 | Dimensions | 355×400×600(mm) |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
