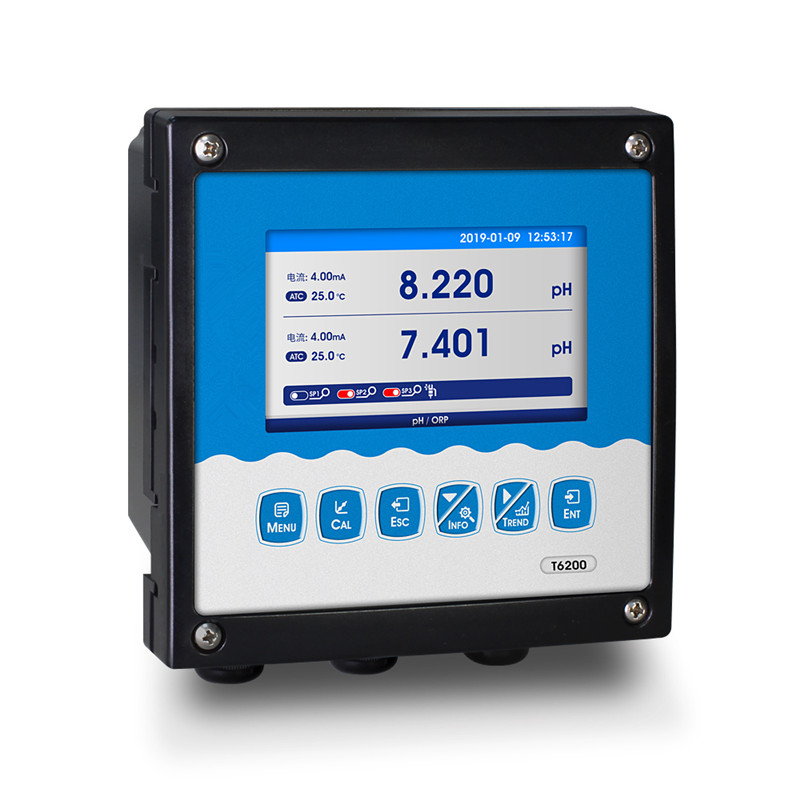

T6200 dual-channel controller
Product Name: dual-channel controller
Product model：T6200
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
1.Large LCD screen color LCD display
2.Smart menu operation
3.Data record & curve display
4.Manual or automatic temperature compensation
5.Three groups of relay control switches
6.High limit, low limit, hysteresis control
7.4-20ma &RS485 multiple output modes
8.Same interface display input value, temperature, current value, etc
9.Password protection to prevent non-staff error operation
Features:
(1)Access signal: 2-channel RS485 communication sensor;
(2)Two-channel current output:
0/4 ~ 20 mA (load resistance < 750 Ω);
(3)Communication output: RS485 MODBUS RTU;
(4)Three groups of relay control contacts:5A 250VAC, 5A 30VDC;
(5)Power supply:85 ~ 265VAC±10%,50±1Hz, power ≤3W;
9 ~ 36VDC, power: ≤3W;

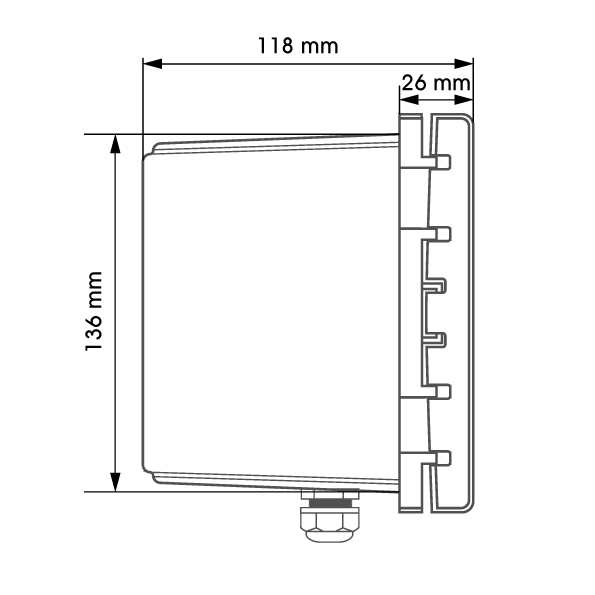

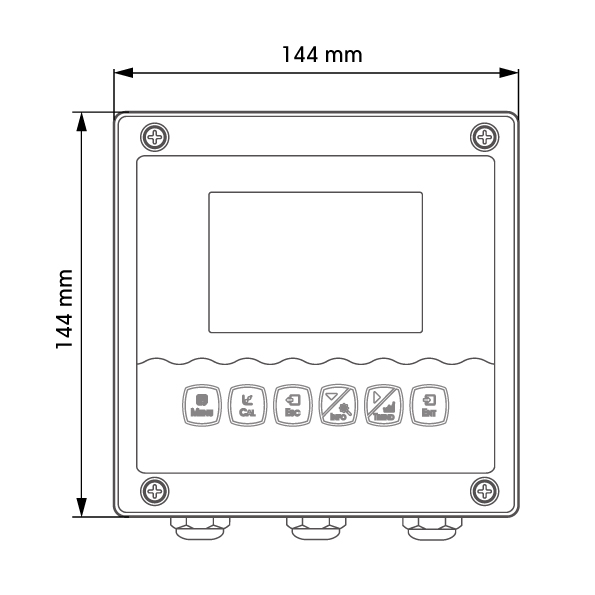

(6)Dimension: 144×144×118mm;
(7)Installation method: panel, wall mounting or pipe;
Panel opening size: 138×138mm;
(8)Protection grade: IP65;
(9)Weight: 0.8kg;
(10)Working environment:
Ambient temperature: -10 ~ 60℃;
Relative humidity: no more than 90%;
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
