Online DO&DO Dual Channel Transmitter T6200

Product Name: Online DO&DO Dual Channel Transmitter

Product modelT6200

Product brand:FLUIDINGS

Power supply voltage: 9~36VDC

Industrial on-line DO/DO transmitter is an on-line water quality dual channel monitoring and control instrument with microprocessor.The DO value and temperature value of aqueous solution were continuously monitored and controlled.

The instrument is equipped with different types of sensors. Widely used in power plants, petrochemical industry, metallurgical

electronics, mining, paper industry, biological fermentation engineering, medicine, food and beverage, environmental

protection water treatment, aquaculture, modern agricultural planting and other industries.



DESCRIPTION

Features:

1. Large display, standard 485 communication, with    online and offline alarm, 144*144*118mm meter size, 138*138mm hole size, 4.3 inch large screen display.

2. Intelligent menu operation

3. Multiple automatic calibration

4. Differential signal measurement mode, stable and reliable

5. Manual and automatic temperature compensation

6. Three relay control switches

7. 4-20mA & RS485,Multiple output modes

8. Multi parameter display simultaneously shows – DO/ DO, Temp, current,etc.

9. Password protection to prevent misoperation by non- staff.

10. The matching installation accessories make the installation of the controller in complex working conditions more stable and reliable.

11. High & low alarm and hysteresis control. Various alarm outputs. In addition to the standard two-way normally open contact design, the option of normally closed contacts is also added to make the dosing control more targeted.

12. The 3-terminal waterproof sealing joint effectively prevents water vapor from entering, and isolates the input, output and power supply, and the stability is greatly improved. High resilience silicone keys, easy to use, can use combination keys, easier to operate.

13. The outer shell is coated with protective metal paint, and safety capacitors are added to the power board,which improves the strong magnetic anti-interference ability of industrial field equipment. The shell is made of PPS material for more corrosion resistance.The sealed and waterproof back cover can effectively prevent water vapor from entering, dustproof, waterproof

Measuring rangeDO: 0-20mg/L
Unitmg/L
Resolution0.01mg/L
Basic error±0.1mg/L
Temperature-10~150.0τ(  Depend on the Sensor)
Temp. resolution0.1τ
Temp. accuracy±0.3τ
Temp. compensation0~150.0τ
Temp. compensationManual or automatic
StabilitypH:≤0.01pH/24h;
Current outputsTwo 4~20mA,20~4mA,0~20mA
Signal outputRS485 MODBUS RTU
Other functionsData record &Curve display
Three relay control contacts5A 250VAC,5A 30VDC
Optional power supply85~265VAC,9~36VDC,power consumption ≤3W
Working conditionsNo strong magnetic field interference around except the geomagnetic field.
Working temperature-10~60τ
Relative humidity≤90%
Waterproof ratingIP65
Weight0.8kg

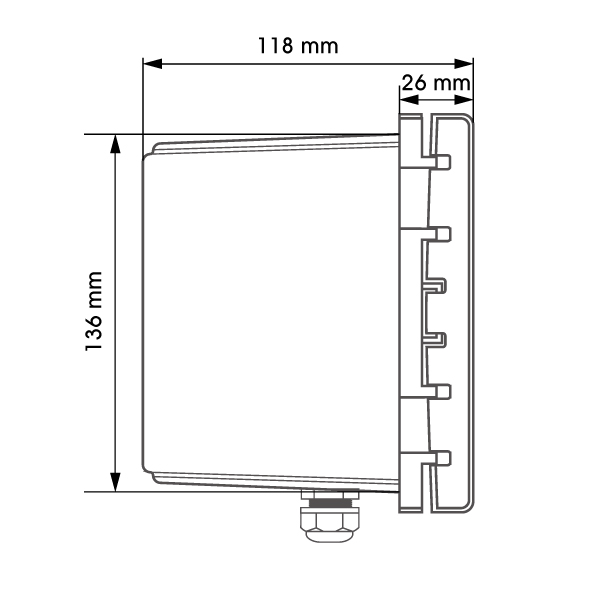

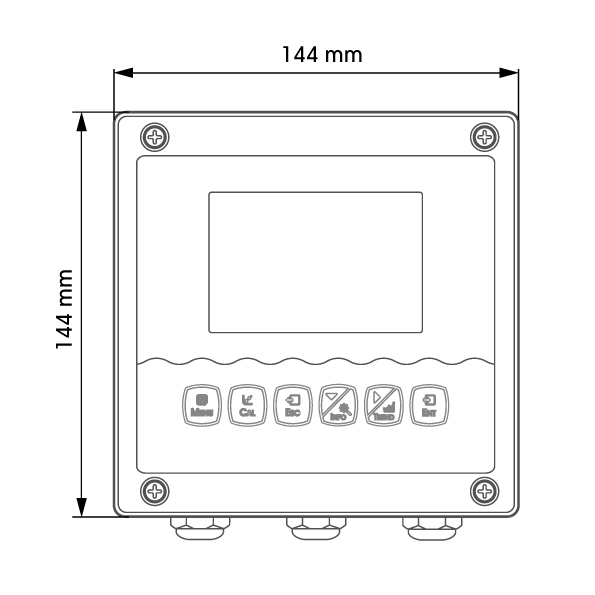

Dimensions144×144×118mm
Installation opening size138×138mm
Installation methodsPanel & wall mounted or pipeline
