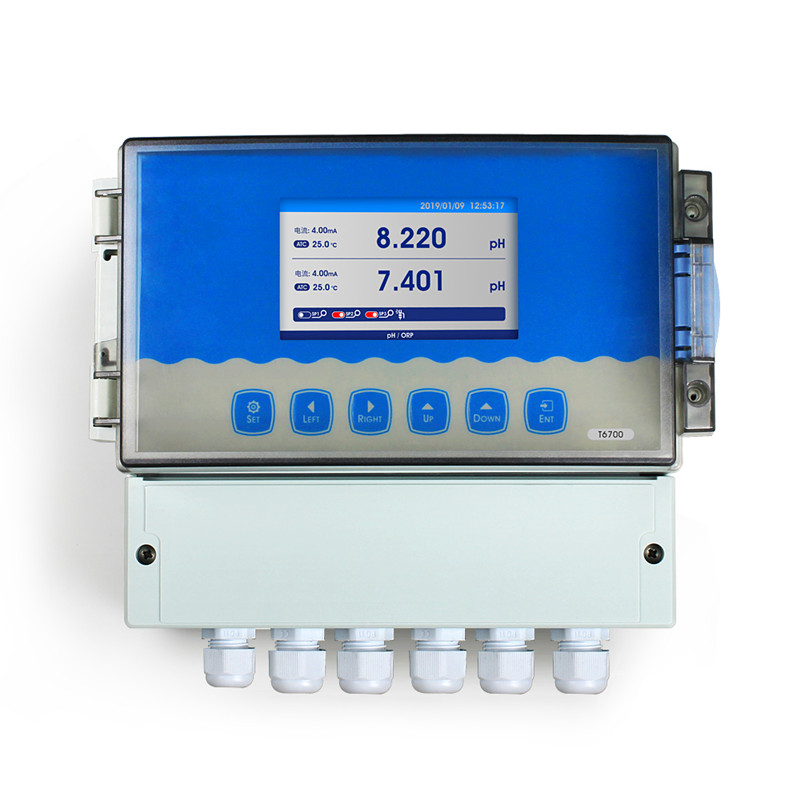

T6700 dual-channel controller
Product Name: Dual-channel Controller
Product model：T6700
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
● Large LCD screen color LCD display
● Smart menu operation
● Data record & curve display
● Manual or automatic temperature compensation
● Three groups of relay control switches
● High limit, low limit, hysteresis control
● 4-20ma &RS485 multiple output modes
● Same interface display input value, temperature, current value, etc
● Password protection to prevent non-staff error operation
Features:
(1) Access signal: 2-channel analog signal or RS485 communication
(2) Two-channel current output:
0/4 ~ 20 mA (load resistance < 750 Ω);
(3) Communication output: RS485 MODBUS RTU;
(4) Three groups of relay control contacts:5A 250VAC, 5A 30VDC;
(5) Power supply:85 ~ 265VAC±10%,50±1Hz, power ≤3W;
9 ~ 36VDC, power: ≤3W;

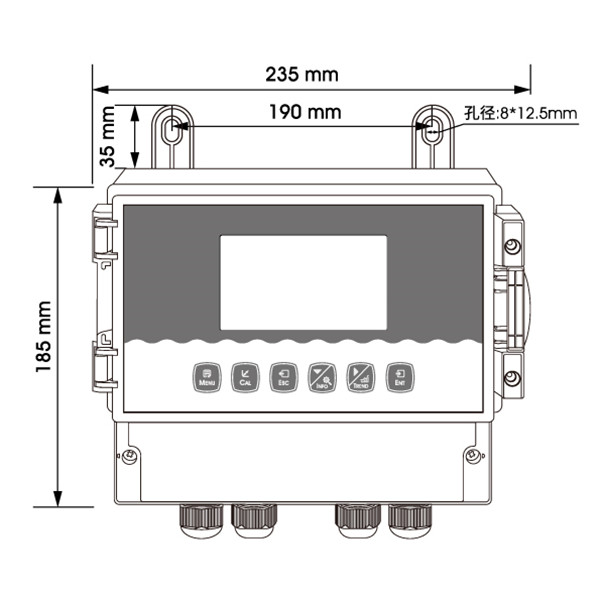

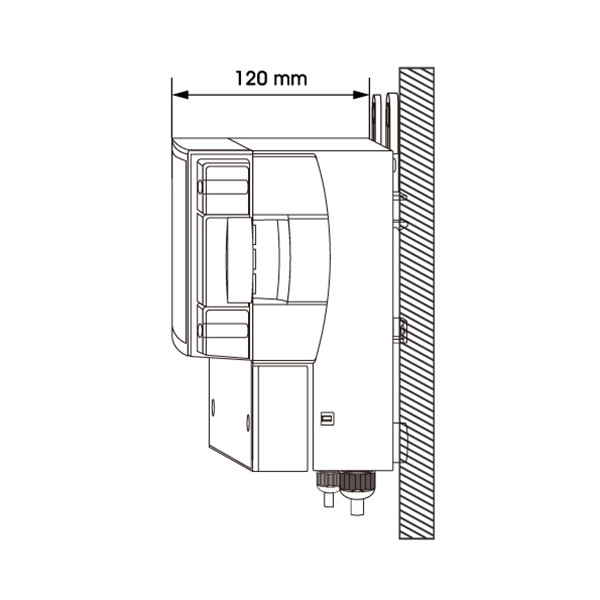

(6) Dimension: 235×185×120mm;
(7) Installation method: Wall mounting ;
(8) Protection grade: IP65;
(9) Weight: 1.5kg;
(10) Working environment:
Ambient temperature: -10 ~ 60℃;
Relative humidity: no more than 90%;
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
