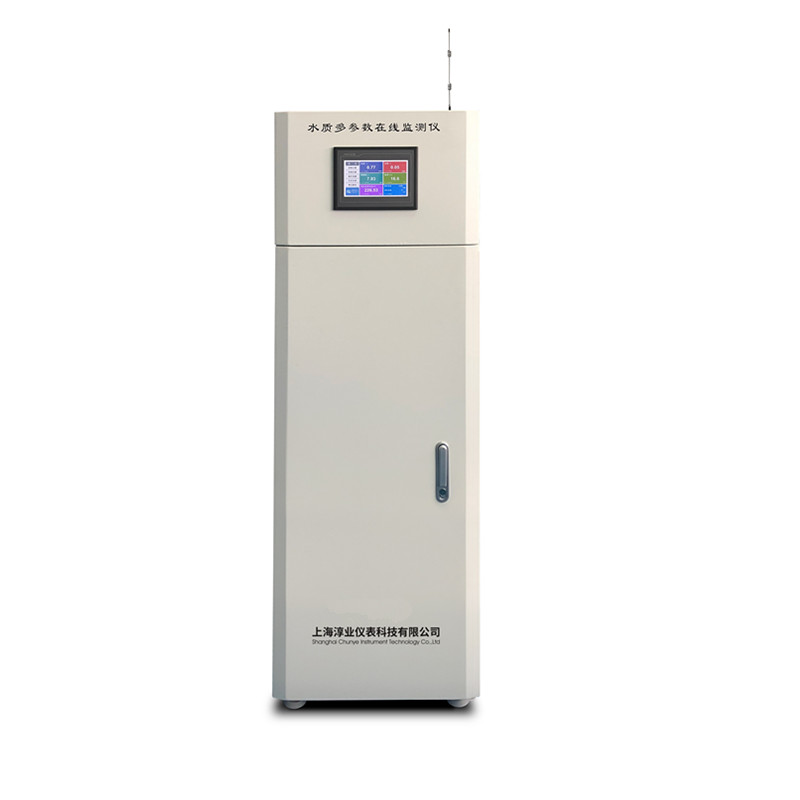

T9050 Multi-parameter water quality on-line monitor
Product Name: Multi-parameter water quality on-line monitor
Product model：T9050
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
Designed for online monitoring of water quality such as rivers, lakes, enterprise outlets, inlets and outlets of sewage treatment plants.
Features:
1.Builds water quality database of outlet and pipe network system;
2.Multi-parameter on-line monitoring system can support six parameters at the same time. Optional: pH, Conductivity, Dissolved oxygen, TSS/Turb, COD/BOD, Ammonia nitrogen, No3/No2, Temperature;

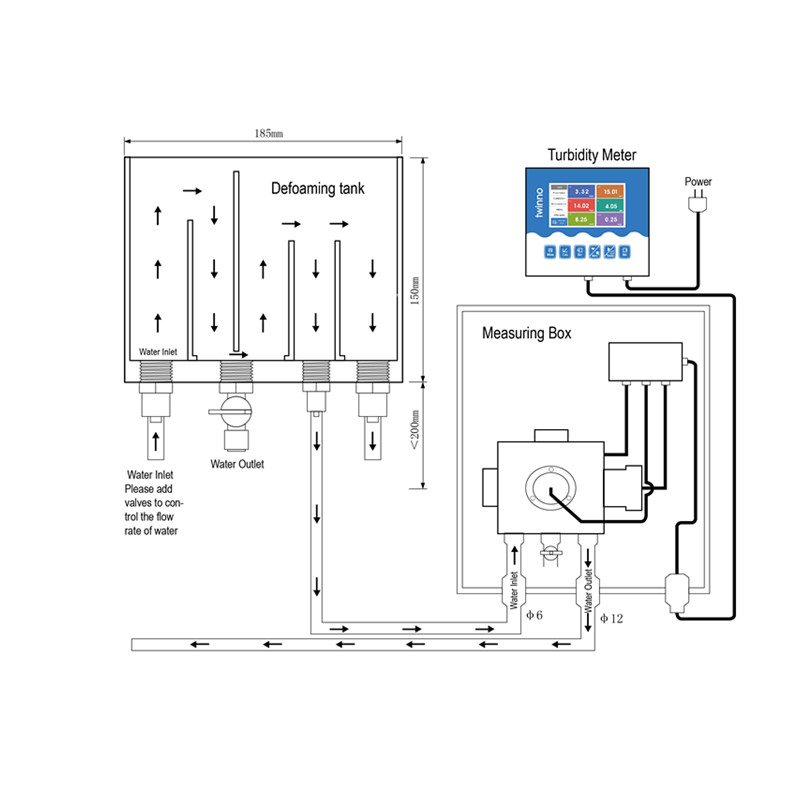

3.Easy to install. The system has only one sample inlet, one waste outlet and one power supply connection;
4.The historical record: Yes
5.Installation mode: Vertical type;
6.The sample flow rate is 400 ~ 600mL/min;
7.4-20mA or DTU remote transmission.GPRS;
8.Anti-explosion.
| Project | Technical Parameters | Project | Technical Parameters |
| pH | Dissolved Oxygen | ||
| Principle | Glass electrode method | Principle | Fluorescence optical technique |
| Range | 0~14 pH | Range | 0~20mg/L ；0~200% |
| Accuracy | ±0.1pH | Accuracy | ±0.3mg/L |
| Resolution | 0.01pH | Resolution | 0.01mg/L |
| MTBF | ≥1440H | MTBF | ≥1440H |
| Conductivity | TSS/Turb | ||
| Principle | Four pole electrode method | Principle | 90°infrared |
| Range | 0~500ms/cm | Range | 0.01-500mg/L or 0.01~200NTU |
| Automatic range switching | |||
| Accuracy | ±0.5% | Accuracy | ±5% |
| Resolution | 0.01/0.1ms/cm | Resolution | 0.01mg/L or 0.01NTU |
| COD（COD/TOC/BOD） | Ammonia Nitrogen | ||
| Principle | Ultraviolet fluorescence | Principle | Ion selective electrode |
| Range | 0~500mg/L | Range | 0~100mg/L |
| Accuracy | ±5% | Accuracy | ±5% |
| Resolution | 0.1/1mg/L | Resolution | 0.1/1mg/L |
| Water Temperature | |||
| Principle | Thermal resistance | Accuracy | ±0.2℃ |
| Range | 0℃~60℃ | MTBF | ≥1440H |

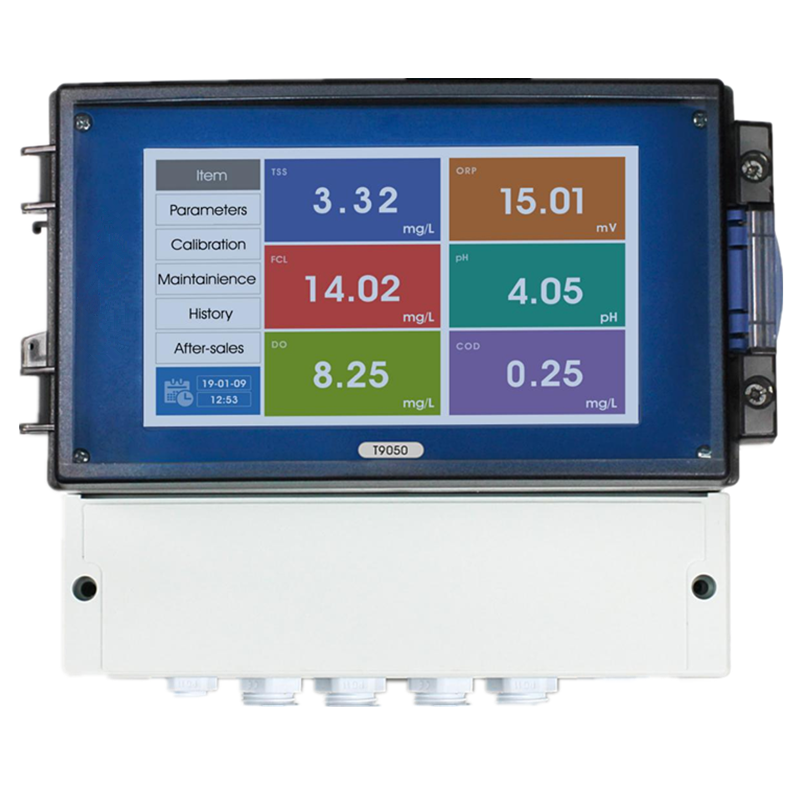

| Controller | |||
| Dimensions | 1470*500*400mm | Power supply | 100～240VAC or 9～36VDC |
| IP Grade | IP54 or Customize IP65 | Power | 3W～5W |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
