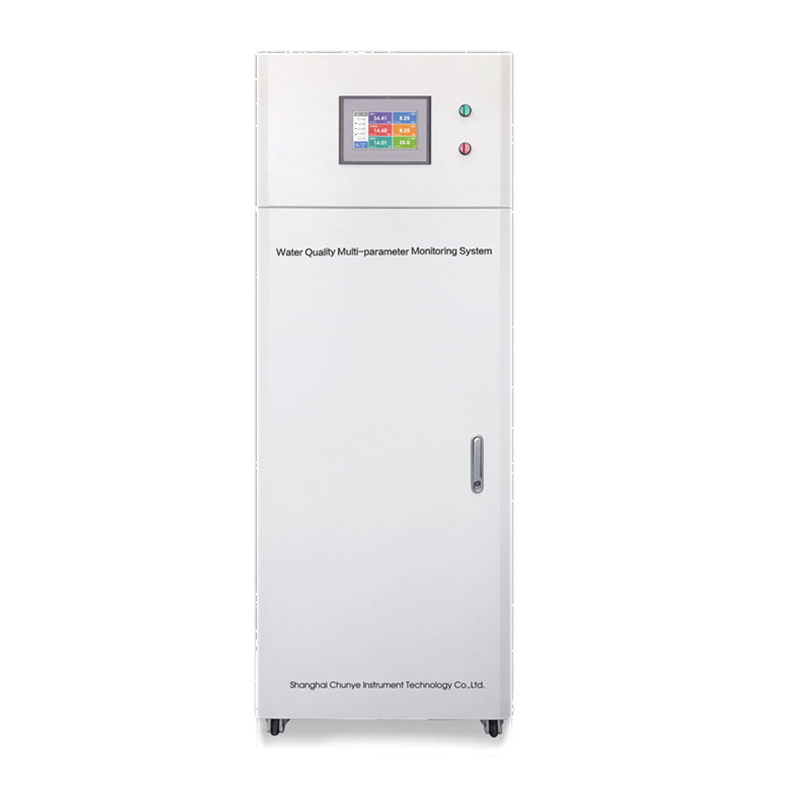

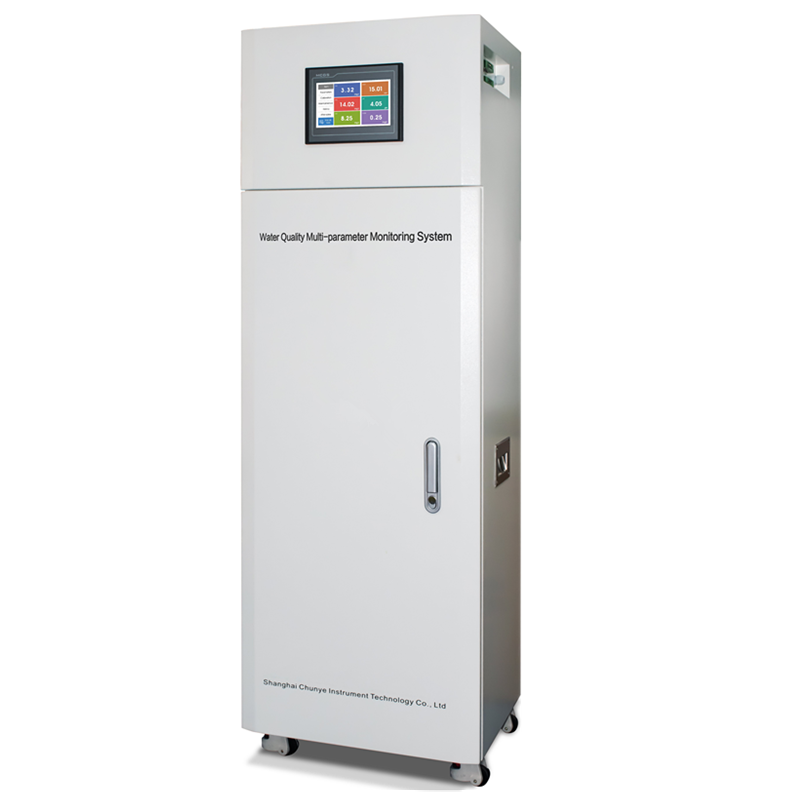

T9060 Multi-parameter Online Water Quality Monitoring system
Product Name: Water Quality Multi-parameter online monitoring system
Product model:T9060
Product brand:FLUIDINGS
Power supply voltage: 9~36VDC
Designed for online monitoring of water supply and outlet, water quality of pipe network and secondary water supply of residential area.
Features:
1. Builds water quality database of outlet and pipe network system;
2. Multi-parameter on-line monitoring system can support six parameters at the same time. Customizable parameters.
3. Easy to install. The system has only one sample inlet, one waste outlet and one power supply connection;
4. The historical record: Yes
5. Installation mode: Vertical type;
6. The sample flow rate is 400 ~ 600mL/min;
7. 4-20mA or DTU remote transmission. GPRS;
8. Anti-explosion.
Project | Technical Parameters | Project | Technical Parameters |
pH | Dissolved Oxygen | ||
Principle | Glass electrode method | Principle | Fluorescence optical technique |
Range | 0~14 pH | Range | 0~20mg/L ;0~200% |
Accuracy | ±0.1pH | Accuracy | ±0.3mg/L |
Resolution | 0.01pH | Resolution | 0.01mg/L |
MTBF | ≥1440H | MTBF | ≥1440H |
Conductivity | TSS/Turbidity | ||
Principle | Four pole electrode method | Principle | 90°infrared |
Range | 0~500ms/cm | Range | 0.01-500mg/L or 0.01~200NTU |
Automatic range switching | |||
Accuracy | ±0.5% | Accuracy | ±5% |
Resolution | 0.01/0.1ms/cm | Resolution | 0.01mg/L or 0.01NTU |
COD(COD/TOC/BOD) | Ammonium Nitrogen | ||
Principle | Ultraviolet fluorescence | Principle | Ion selective electrode |
Range | 0~500mg/L | Range | 0~1000mg/L |
Accuracy | ±5% | Accuracy | ±5% |
Resolution | 0.1/1mg/L | Resolution | 0.1/1mg/L |
Water Temperature | |||
Principle | Thermal resistance | Accuracy | ±0.2℃ |
Range | 0℃~60℃ | MTBF | ≥1440H |
Controller | |||
Dimensions | 1470*500*400mm | Power supply | 100~240VAC or 9~36VDC |
IP Grade | IP54 or Customize IP65 | Power | 3W~5W |
