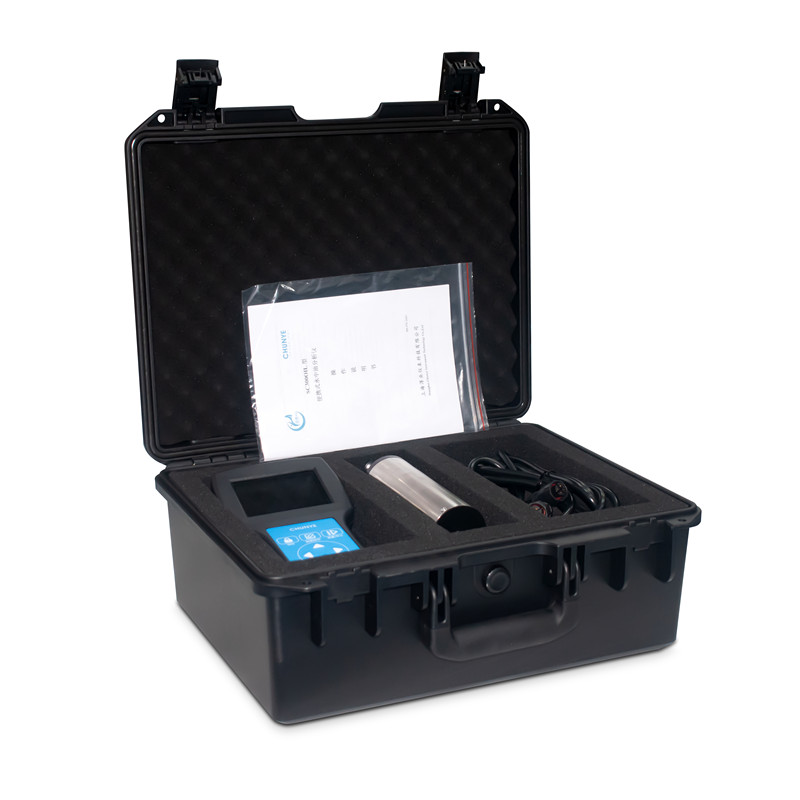

SC300OIL Portable Oil-in-water Analyzer

Product Name:  Portable Oil-in-water Analyzer

Product model: SC300OIL

Product brand:FLUIDINGS

Power supply voltage: 9-36VDC


DESCRIPTION

Features:

    1.Measurement Range: 0.1-200mg/L

2.Measurement Accuracy: ±5%

3.Resolution: 0.1mg/L

4.Calibration: Standard solution calibration, water sample calibration

5.Housing Material: Sensor:SUS316L+POM;Main  unit housing:PA+glass fiber

6.Storage Temperature:-15 to 60°C

7.Operating Temperature: 0 to 40°C

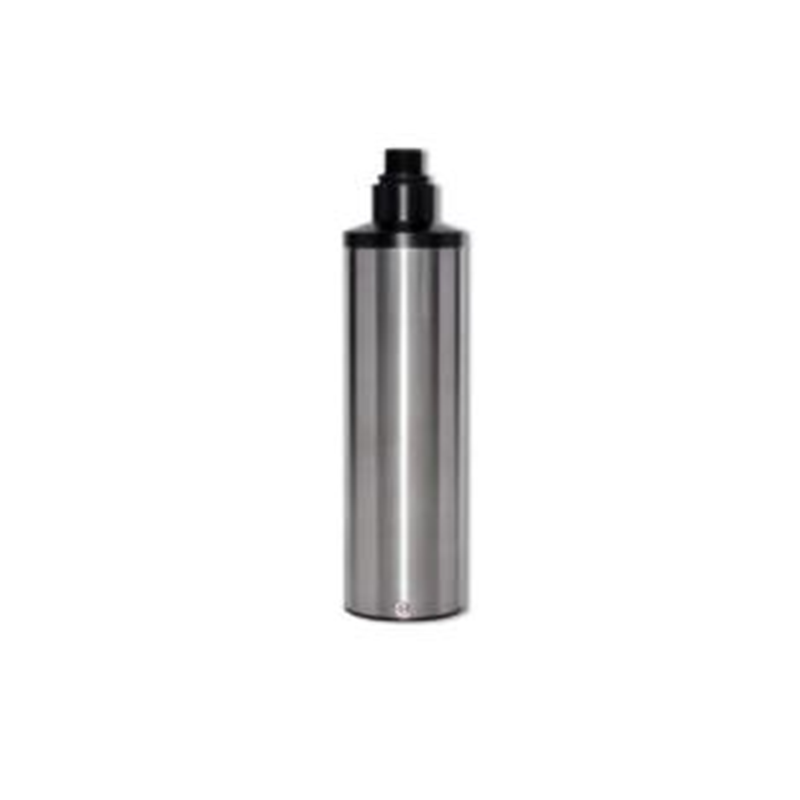

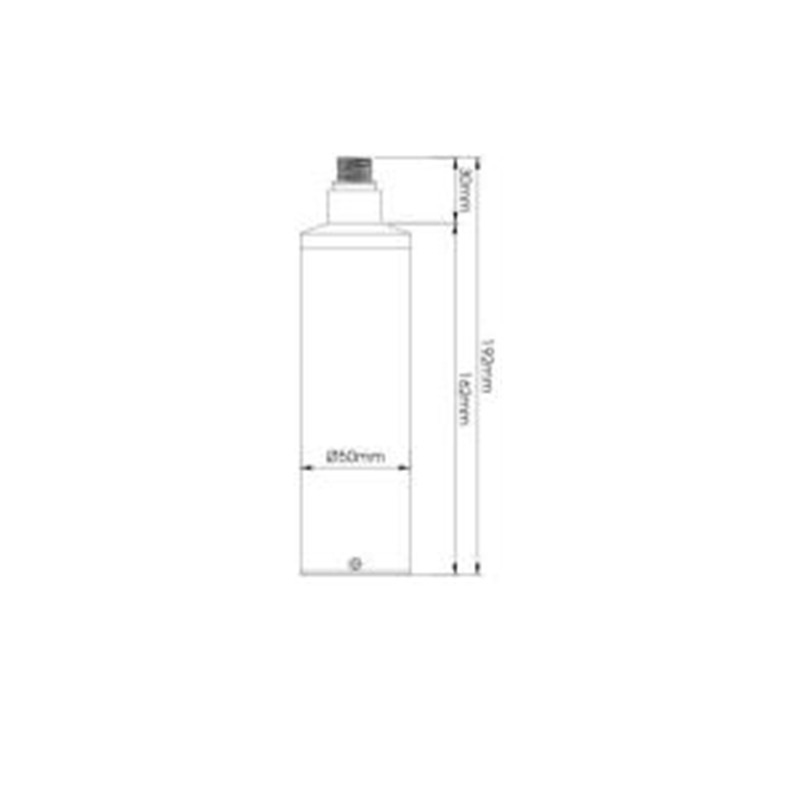

8.Sensor  Dimensions:Diameter 50mm * Length 192mm;  Weight(excluding cable): 0.6KG

9.Main Unit Dimensions: 23511880mm; Weight: 0.55KG

10.Protection Rating: Sensor: IP68; Main unit: IP66

11.Cable Length: 5 meter cable as standard (extendable)

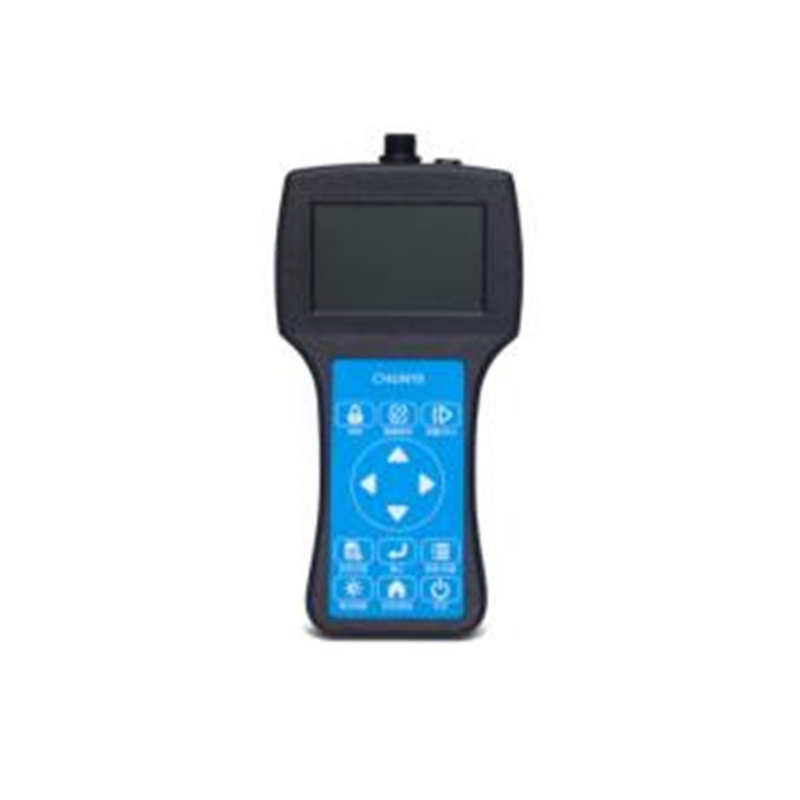

12.Display: 3.5-inch color screen,adjustable backlight

13.Data Storage: 16MB data storage space, approximately 360,000 sets of data

14.Power Supply: 10000mAh built-in lithium battery

15.Charging and Data Export: Type-C



application area

safety

environmental protection

oil

chemical

pharmaceutical

metallurgy

coal chemical industry

storage
