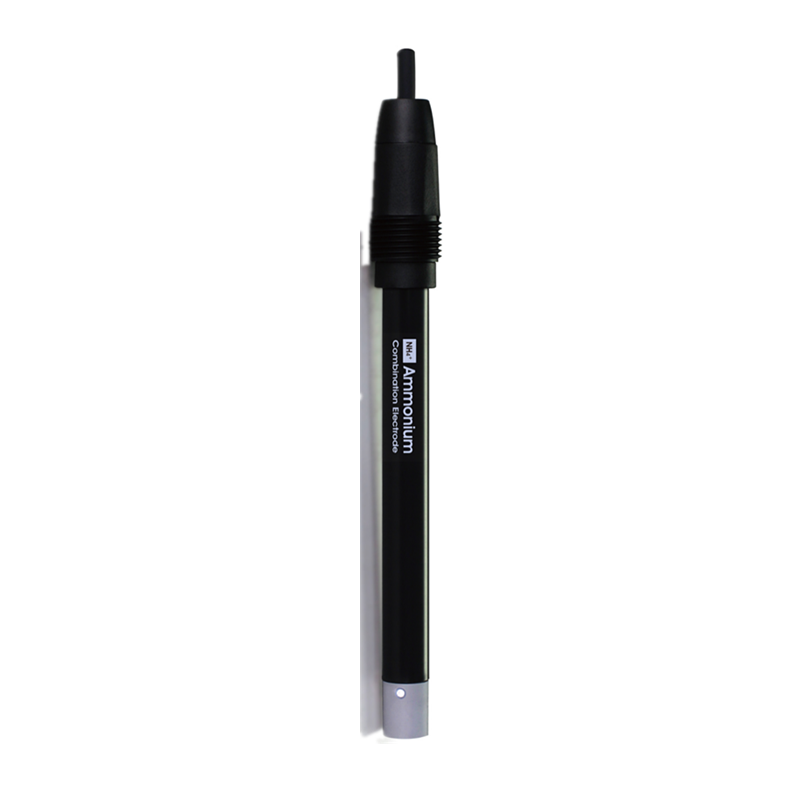

Online Ammonia Ammonium Ion sensor Water Quality
Product Name:Online Ammonium ion Sensor
Product model：CS6514
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
Ion selective electrode is a kind of electrochemical sensor that uses membrane potential to measure the activity or concentration of ions in the solution. When it comes into contact with the solution containing the ions which are to be measured, it will generate contact with the sensor at the interface between its sensitive membrane and the solution. Ion activity is directly related to membrane potential. Ion selective electrodes are also called membrane electrodes. This type of electrode has a special electrode membrane that selectively responds to specific ions. The relationship between the potential of the electrode membrane and the ion content to be measured conforms to the Nernst formula. This type of electrode has the characteristics of good selectivity and short equilibrium time, making it the most commonly used indicator electrode for potential analysis.
Features:
1.CS6514 Ammonium Ion Sensor is solid membrane ion selective electrodes, used to test ammonium ions in water, which can be fast, simple, accurate and economical;
2. The design adopts the principle of single-chip solid ion selective electrode, with high measurement accuracy;
3.PTEE large-scale seepage interface, not easy to block, anti-pollution Suitable for wastewater treatment in the semiconductor industry, photovoltaics, metallurgy, etc. and pollution source discharge monitoring;l
4.High-quality imported single chip, accurate zero point potential without drift ;
Parameters:
| Model No. | CS6514 |
| Measurement range | 0.1-1000mg/L or customize |
| Reference system | PVC membrane ion selective electrode |
| Membrane resistance | <600MΩ |
| Housing material | PP |
| Waterproof grade | IP68 |
| pH range | 2-12pH |
| Accuracy | ±0.1 mg/L |
| Pressure resistance | 0~0.3MPa |
| Temperature compensation | NTC10K,PT100,PT1000 (Optional) |
| Temperature range | 0-80℃ |
| Calibration | Sample calibration, standard liquid calibration |
| Cable length | Standard 5m cable, can be extended to 100m |
| Installation thread | PG13.5 |
| Application | Water quality and soil analysis, clinical laboratory, ocean survey, industrial process control, geology, metallurgy, agriculture, food and drug analysis and other fields. |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
