Measuring range:

Ion concentration:0~50000mg/L;
Temperature:-5~150.0ºC;
Temperature:-10~150.0ºC;

Resolution:

Ion concentration: 0.01mg/L;
Temperature:0.1ºC;

Accuracy:

Ion concentration:±2.5%;
Temperature:±0.3ºC;

Two current outputs:

0/4~20mA(load resistance<750Ω);
20~4mA(load resistance<750Ω);
Temperature:±0.3ºC;

Signal output:

RS485 MODBUS RTU;

Three sets of relay control contacts:

5A 250VAC,5A 30VDC;

Power supply:

85~265VAC±10%,50±1Hz,power≤3W;
9~36VDC,power consumption:≤3W;

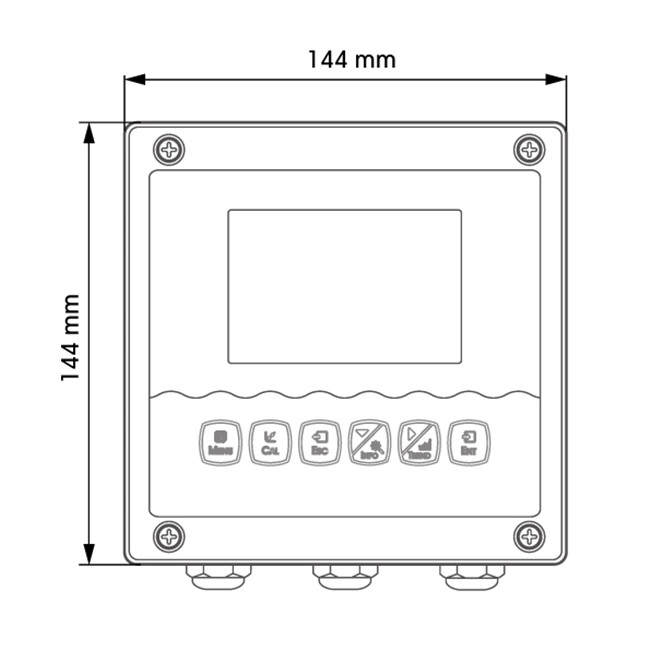

Dimensions:

144×144×118mm;

Installation:

Panel & wall mounting or pipeline

Panel opening size :

138×138mm;

Protection Level:

IP65;

)Weight:

0.8kg

Working conditions:

Working temperature:-10~60ºC;
Relative humidity: ≤90%;

Application：

General application, river, lake , drink water,etc.
Relative humidity: ≤90%;
