Industrial ph sensor Aquaculture 4 20mA RS485 Output

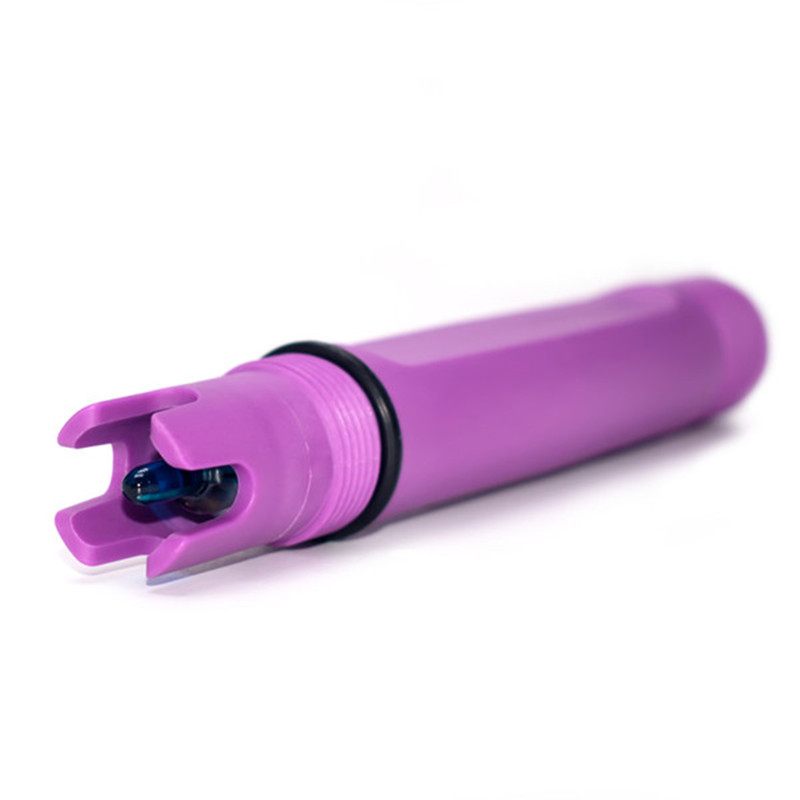

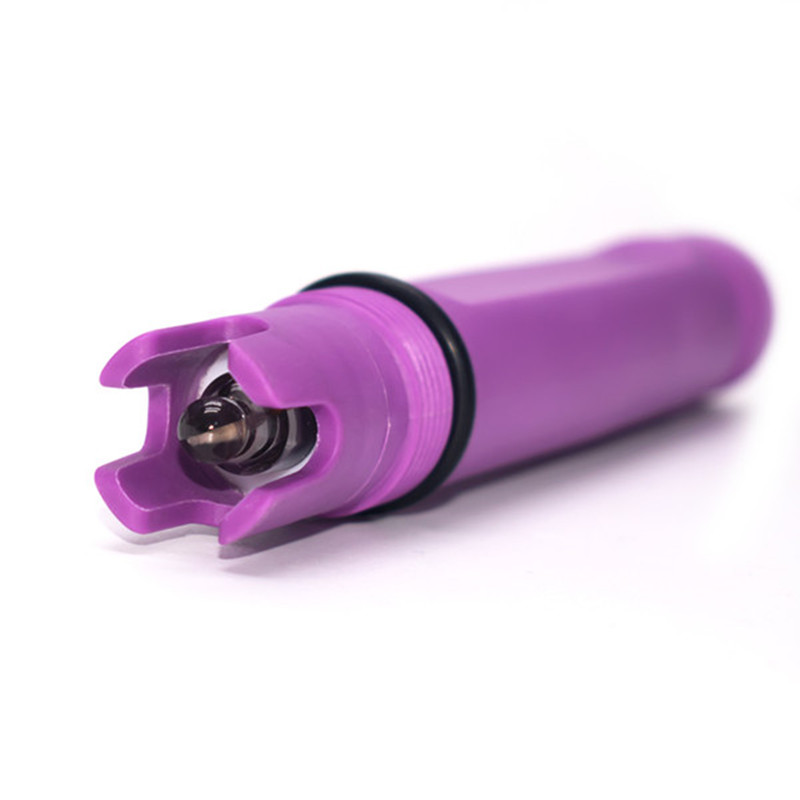

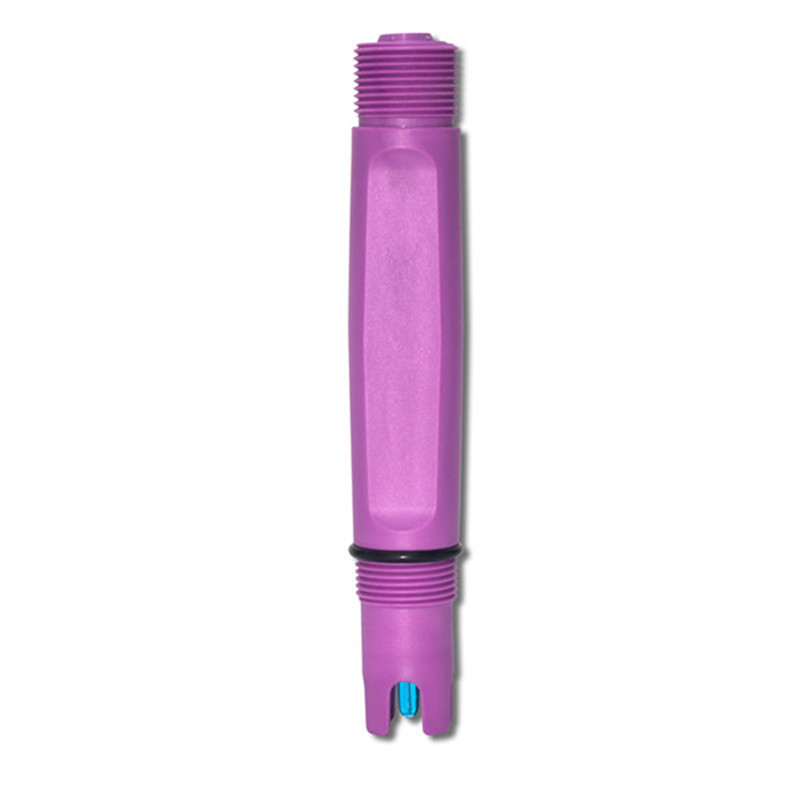

Product Name:Hydrofluoric acid environment PH Sensor
Product model：CS1728C
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
To measure and control pH value of water samples for industrial and production water treatment, easy to connect to PLC, DCS, industrial control computers, general purpose controllers, paperless recording instruments or touch screens and other third party devices.
Features:
pH range: 0-12pH
pH zero point: 7.00±0.25
Hydrofluoric acid concentration: ≤4000ppm Temperature range: 0-80°C
Pressure resistance:0-0.6MPa
Temperature sensor: NTC10K/NTC2.2K/PT100/PT1000
Shell material: PP
Membrane resistance: <800MΩ
Reference system: Ag/AgCL
Liquid interface: porous ceramic
Double salt bridge system: Yes
Electrolyte solution: KCL
Connection thread: NPT3/4'' Cable length: 10m or as agreed
Cable connector: Pin, BNC or as agreed
Part Numbers:
application area
safety
environmental protection
oil
