Dissolved Oxygen Tester For Fish Framing Water Quality Meter
Product Name:Dissolved Oxygen Tester
Product model：DO30
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
Accurate and stable, economical and convenient, easy to maintain, DO30 dissolved oxygen brings you more convenience, create a new experience of dissolved oxygen application.
Features:
-Waterproof and dustproof housing, IP67 waterproof grade.
-Precise & easy operation, all functions operated in one hand.
-Unit display can be selected:ppm or %.
-Automatic temp. Compensates after salinity /barometric manual input.

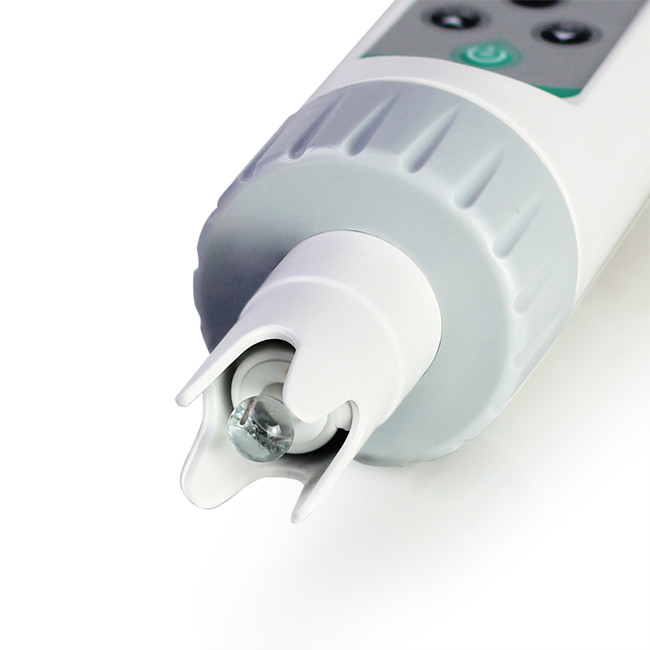

-User replaceable electrode & membrane cap (CS49303H1L).
-Field throw-out measurement(automatic locking function)
-Easy maintenance, no tools needed to change batteries or electrode.
-Backlight display,multiple line display, easy to read.
-Self-Diagnostic for easy troubleshooting (e.g battery indicator, message codes).
-1*1.5 AAA long battery life.
-Auto-Power Off saves battery after 5mins non-use.
Specifications:
| DO30 Dissolved Oxygen Tester Specifications | |
| Measuring Range | 0.00 - 20.00 ppm;0.0 - 200.0% |
| Resolution | 0.01 ppm;0.1% |
| Accuracy | ±2% F.S |
| Temperature Range | 0 - 100.0ºC / 32 - 212ºF |
| Working Temperature | 0 - 60.0ºC / 32 - 140ºF |
| Auto Temp.Compensation | 0 - 60.0ºC / 32 - 140ºF |
| Calibration | 1 or 2points auto calibrate ( zero calibration or 100% in air calibration) |
| Salinity Compensation | 0.0 - 40.0 ppt |
| Barometric Compensation | 600 - 1100 mbar |
| Screen | 20 * 30 mm multiple line LCD |
| Lock Function | Auto/Manual |
| Protection Grade | IP67 |
| Auto backlight off | 30 seconds |
| Auto power off | 5 minutes |
| Power Supply | 1x1.5V AAA7 battery |
| Dimensions | (HXWXD) 185X40X48 mm |
| Weight | 95g |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
