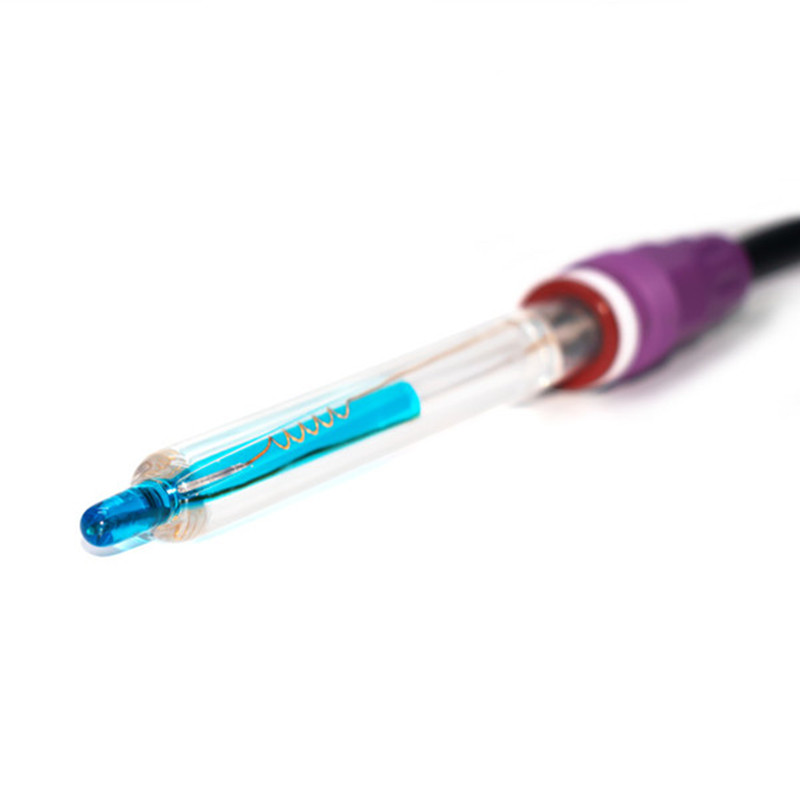

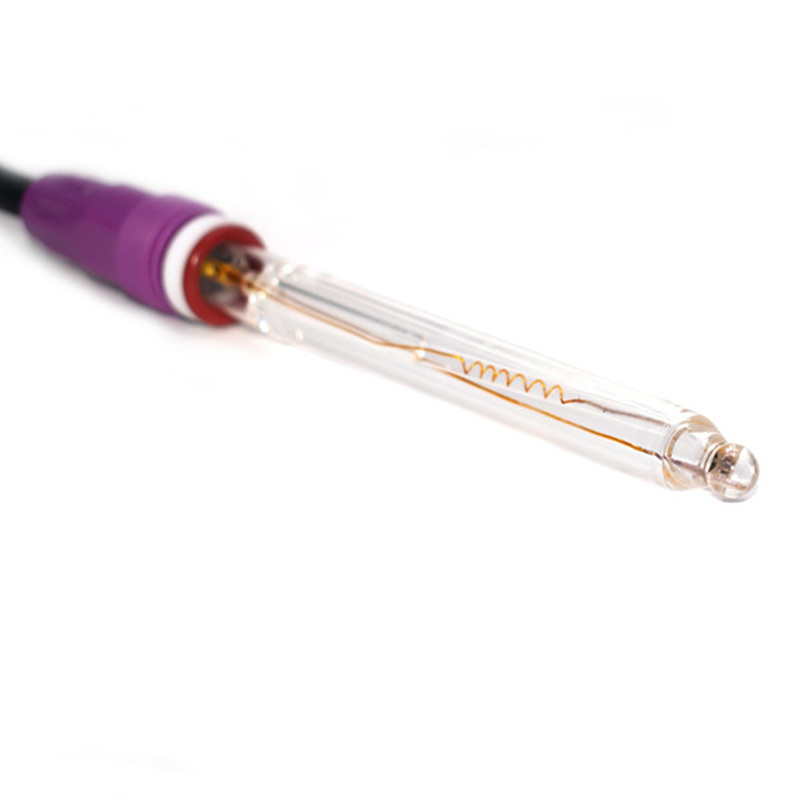

PH Meter 0-14 Range pH Calcium Hydroxide Electrode Probe
Product Name:calcium hydroxide PH Sensor
Product model：CS1544CDB/CS1544CDBT
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
To measure and control pH value of water samples for industrial and production water treatment, easy to connect to PLC, DCS, industrial control computers, general purpose controllers, paperless recording instruments or touch screens and other third party devices.
Specifications
pH range: 0-14pH
pH zero point: 7.00±0.25
Hydrofluoric acid concentration: ≤4000ppm
Temperature range: 0-100°C
Pressure resistance: 0-0.6MPa
Temperature sensor: CS1543C: None
CS1543CT: NTC10K/NTC2.2K/PT100/PT1000 Shell material: glass
Membrane resistance: <800MΩ
Liquid interface: porous ceramic
Double salt bridge system: Yes
Electrolyte solution:KCL
Connection thread: PG13.5
Cable length: 5m or as agreed Cable connector: Pin, BNC or as agreed
Part Numbers
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
