High Precision Water Quality ISE Fluoride Chloride Nitrite Ion Transmitter analy

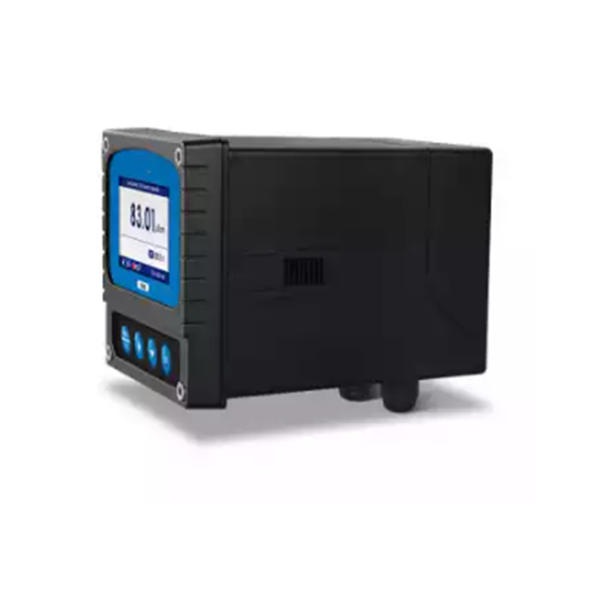

Product Name:Online Nitrite Ion Transmitter analyzer
Product model：T3030
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
Industrial online conductivity meter is a microprocessor-based water quality online
monitoring control instrument. This instrument is widely used in power plants,
petrochemical industry, mining industry, paper industry,semiconductor industry , medicine, food and beverage and other industries.It is suitable for softening water, raw water, steam condensate water, seawater distillation and deionized water, etc. It can continuously monitor and control the conductivity, resistivity, TDS, salinity and temperature of aqueous solutions.
Instrument features:
●Color LCD Display
●Intelligent menu operation
●Multiple signal output modes
●Manual or automatic temperature compensation
●Two sets of relay control switches
●High & low alarm, hysteresis control
●Display pH/ORP, temperature, state, etc. on the same interface
●With password protect function to prevent misoperation by non-staff
Technical parameters:
| Online PH/ORP Meter-T3000 | |
| Measuring Range | -2-16.00pH;±2000mV |
| Measuring Unit | pH,mV |
| Resloution | 0.01pH;1mV |
| Basic Error | ±0.01 pH;+1mV; |
| Tempreature | -10-150.0℃[According to the electrode] |
| Temperature resolution | 0.1°C |
| Temperature error | +0.3°C |
| Automatic or Manual heating range | 0-150℃ |
| Temperature resolution | Automatic or Manual |
| Stability | pH:≤0.01 pH/24h;ORP:≤1mV/24h; |
| Current Output | Two Groups;4-20mA, 20-4mA, 0-20mA |
| Communication output | RS485 Modbus RTU & RS232 Modbus RTU |
| Relay control contact | Three Groups:5A 250VAC, 5A 30VDC |
| Power Supply | 85~265VAC or 9~36VDC,Power:≤3W |
| Work environment | In addition to the earth's magnetic field around no strong magnetic interference. |
| Ambient temperature | -10-60℃ |
| Relative humidity | ≤90% |
| Protection grade | P65 |
| Weight | 0.6kg |
| Size | 98x98x130mm |
application area
safety
environmental protection
oil
