Industrial Online Acid/alkali/salt Concentration Analyzer
Product Name:Online Acid/alkali/salt Concentration Analyzer
Product model：T6036
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
Industrial on-line acid/alkali/salt concentration monitor is a water quality on-line controller with microprocessor. The instrument is widely used in thermal power, chemical industry, steel pickling and other industries, such as the regeneration of ion exchange resin in power plant, chemical and chemical industrial process, etc., to continuously detect and control the concentration of chemical acid or alkali in aqueous solution.
Features:
Color LCD Display
Intelligent menu operation
Multiple signal output modes
Manual or automatic temperature compensation
Three sets of relay control switches
High & low alarm,hysteresis control
4-20mA&RS485 Multiple output modes
Multi parameter display Simultaneously shows - measured value, Temp,etc.
With password protect function to prevent misoperation by non-staff
Technical parameters:
| HCL | 0 ~ 10% |
| NaCL | 0 ~ 10% |
| NaOH | 0 ~ 16% |
| HNO3/H2SO4 | 0 ~ 10% |
| CaCL2 | 0 ~ 22% |
| Temperature | -10~150℃ |
| Resolution | ±0.3℃ |
| Temperature compensation | Automatic or manual |
| Current output | 2 Rd 4~20mA |
| Communication output | RS 485 Modbus RTU |
| Other function | Data recording, curve display, data uploading |
| Relay control contact | 3 Groups: 5A 240VAC,5A 28VDC or 120VAC |
| Optional power supply | 85~265VAC,9~36VDC, Power: ≤3W |
| The work environment | In addition to the earth's magnetic field around no strong magnetic field interference |
| The environmental temperature | -10~60℃ |
| Relative humidity | No more than 90% |
| Protection grade | IP65 |
| The instrument weight | 0.8kg |

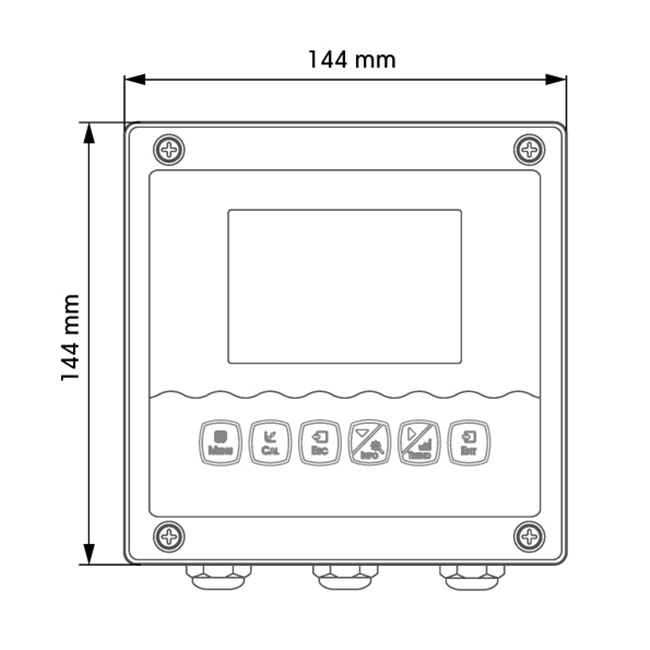

| Instrument dimensions | 144*144*118mm |
| Mounting hole dimensions | 138*138mm |
| Installation | Embedded, wall - mounted, pipeline |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
