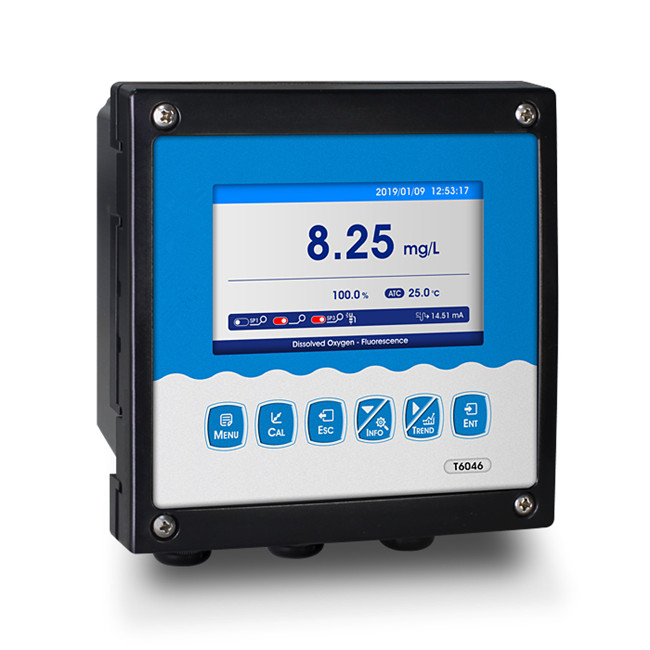

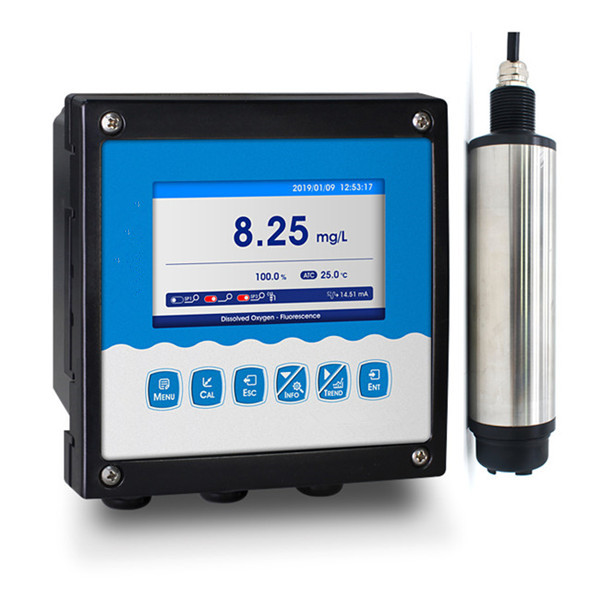

Online Dissolved Oxygen Meter T6042

Product Name:Online Dissolved Oxygen Meter

Product model:T6042

Product brand:FLUIDINGS

Power supply voltage: 9~36VDC

Industrial on-line dissolved oxygen meter is a microprocessor-based water quality on-line monitoring and control instrument.The instrument equipped with Polarographic dissolved oxygen electrodes.It is  widely used in power plants,metallurgical electronics, mining, paper industry,medicine, food and beverage, water treatment, aquaculture and other industries;It continuously monitor and control the dissolved oxygen value and temperature value of water solutions.

DESCRIPTION

Instrument features:

●Color LCD display

●Intelligent menu operation

●Data Recording & Curve Display

●Various automatic calibration functions

●Manual or automatic temperature compensation

●Three sets of relay control switches

●High & low alarm, and hysteresis control

●4-20mA&RS485Multiple output modes

●Dissolved oxygen, temperature, state, etc.shows in the same interface

●Password protection function to prevent misoperation by non-staff


Technical specifications:

Measurement range0~200ug/L, 0~20mg/L;
Measurement unitmg/L; %
Resolution0.01ug/L;    0.01mg/L;
Basic error±1%F.S
Temperature-10~150℃
Temperature Resolution0.1℃
Temperature Basic error±0.3℃
Current Output4~20mA,20~4mA,(load resistance<750Ω)
Communication outputRS485 MODBUS RTU
Relay control contacts5A 240VAC,5A 28VDC or 120VAC
Power supply (optional)85~265VAC,9~36VDC,power consumption≤3W
Working conditionsNo  strong  magnetic  field   interference  around  except  the geomagnetic field.
Working temperature-10~60℃
Relative humidity≤90%
IP rateIP65
Instrument Weight0.8kg

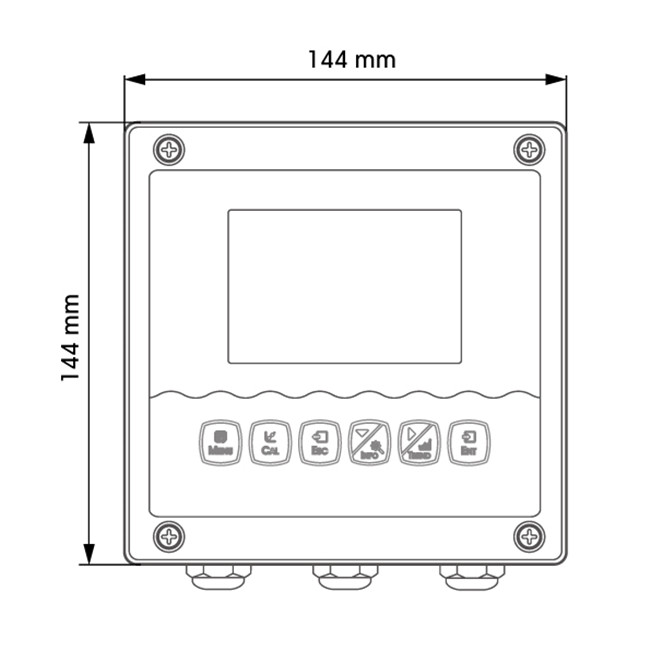

Instrument Dimensions144×144×118mm
Mounting hole dimensions138*138mm
Installation methodsPanel,Wall mounted,pipeline
