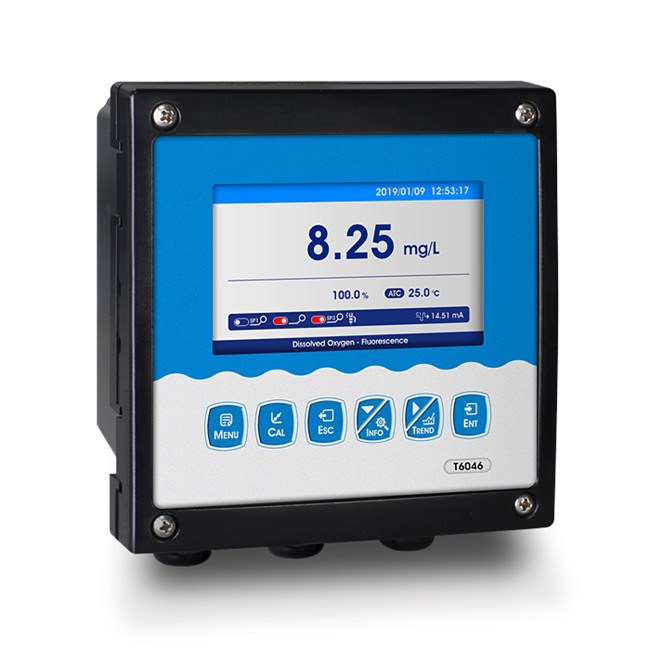

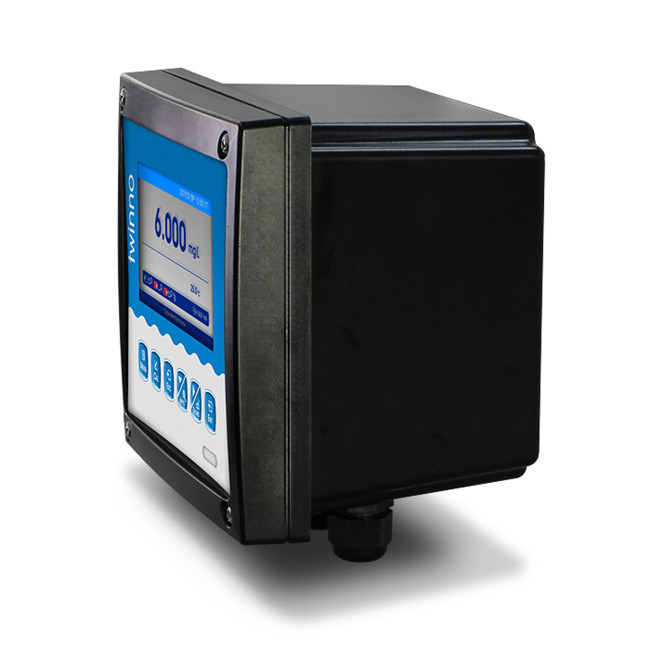

Online Dissolved Oxygen Meter
Product Name:Online Dissolved Oxygen Meter
Product model：T6046
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
The online dissolved oxygen meter is a special instrument for detecting oxygen content in liquids in environmental protection sewage related industries. It has the characteristics of fast response, stability, reliability, and low use cost, and is suitable for large-scale use in water plants, aeration tanks, aquaculture, and sewage treatment plants.
Instrument Features:
●Color LCD display
●Intelligent menu operation
●Various automatic calibration functions
●Manual or automatic temperature compensation
●Two sets of relay control switches
●High and low alarm,hysteresis control
●4-20mA&RS485Multiple output modes
●Dissolved oxygen, temperature, current, etc. shows in the same interface
Technical specifications
| Measurement range | 0~40.00mg/L; 0~400.0% |
| Measurement unit | mg/L; % |
| Resolution | 0.01mg/L; 0.1% |
| Basic error | ±1%F.S |
| Temperature | -10~150℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Basic error | ±0.3℃ |
| Current Output | 4~20mA,20~4mA,(load resistance<750Ω) |
| Communication output | RS485 MODBUS RTU |
| Relay control contacts | 5A 240VAC,5A 28VDC or 120VAC |
| Power supply (optional) | 85~265VAC,9~36VDC,power consumption≤3W |
| Working conditions | No strong magnetic field interference around except the geomagnetic field. |
| Working temperature | -10~60℃ |
| Relative humidity | ≤90% |
| IP rate | IP65 |
| Instrument Weight | 0.8kg |
| Instrument Dimensions | 144×144×118mm |
| Mounting hole dimensions | 138*138mm |
| Installation methods | Panel,Wall mounted,pipeline |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
