online dissolved oxygen meter Analyzer For Sewage Treatment

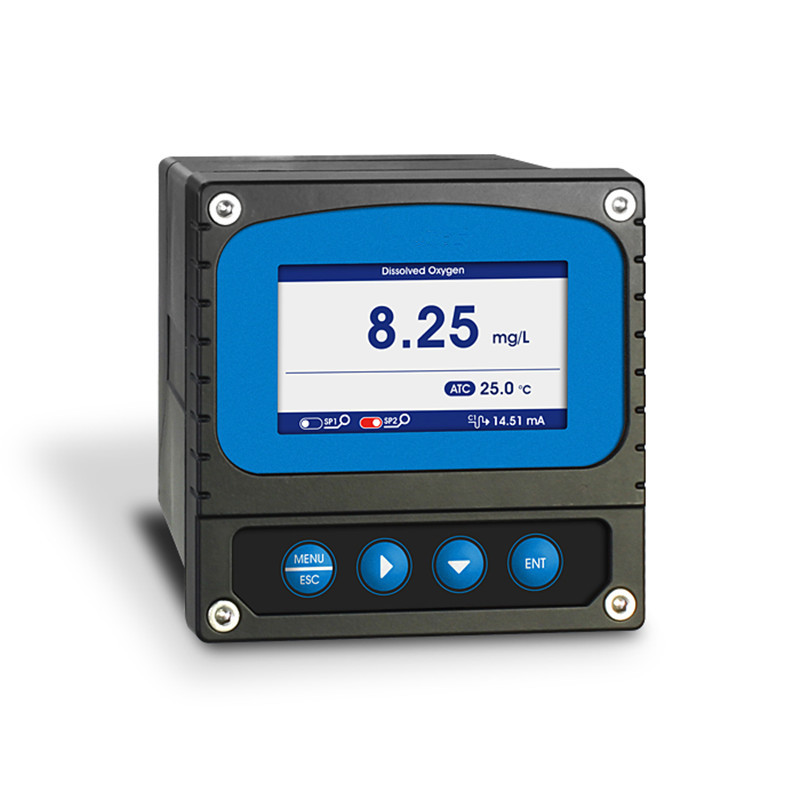

Product Name:Fluorescence online dissolved oxygen meter
Product model：T4046
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
Fluorescence online dissolved oxygen meter is a water quality on-line monitoring and control instrument with microprocessor. The instrument is equipped with polarographic dissolved oxygen electrode, which is widely used in power plants, petrochemical industry, metallurgical electronics, mining industry, paper industry, biological fermentation, medicine, food and beverage,water treatment, aquaculture and other industries.It continuously monitor and control the dissolved oxygen value and temperature value of water solutions.
Instrument Features:
●Color LCD display
●Intelligent menu operation
●Various automatic calibration functions
●Manual or automatic temperature compensation
●Two sets of relay control switches
●High and low alarm,hysteresis control
●4-20mA&RS485Multiple output modes
●Dissolved oxygen, temperature, current, etc. shows in the same interface
Technical specifications
| Measurement range | 0~20.00mg/L; 0~200.0% |
| Measurement unit | mg/L; % |
| Resolution | 0.01mg/L; 0.1% |
| Basic error | ±1%F.S |
| Temperature | -10~150℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Basic error | ±0.3℃ |
| Current Output | 4~20mA,20~4mA,(load resistance<750Ω) |
| Communication output | RS485 MODBUS RTU |
| Relay control contacts | 5A 240VAC,5A 28VDC or 120VAC |
| Power supply (optional) | 85~265VAC,9~36VDC,power consumption≤3W |
| Working conditions | No strong magnetic field interference around except the geomagnetic field. |
| Working temperature | -10~60℃ |
| Relative humidity | ≤90% |
| IP rate | IP65 |
| Instrument Weight | 0.6kg |
| Instrument Dimensions | 98×98×130mm |
| Mounting hole dimensions | 92.5*92.5mm |
| Installation methods | Panel,Wall mounted,pipeline |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
