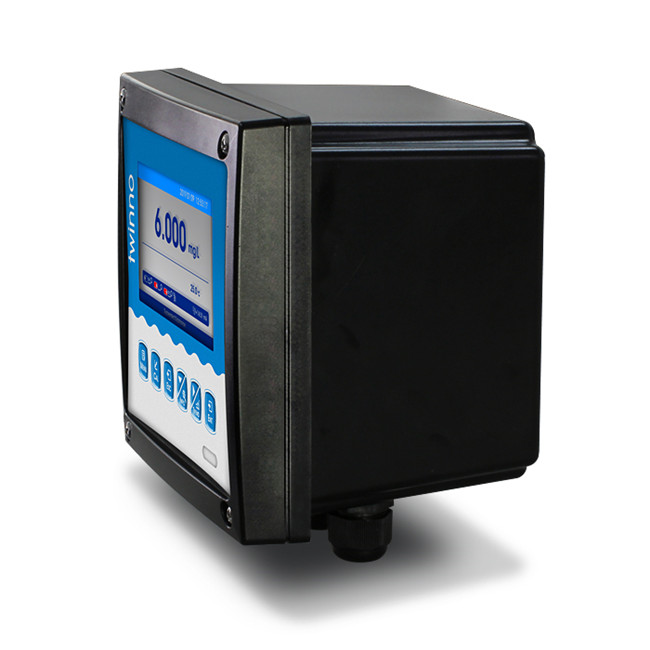

Online Suspended Solids Analyzer
Product Name:Online Suspended Solids Analyzer
Product model：T7045
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
The online suspended solids meter is an online analytical instrument designed to measure the sludge concentration of water from waterworks, municipal pipeline network,industrial process water quality monitoring, circulating cooling water, activated carbon filter effluent, membrane filtration effluent, etc. especially in the treatment of municipal sewage or industrial wastewater. Whether evaluating activated sludge and the entire biological treatment process, analyzing wastewater discharged after purification treatment,or detecting sludge concentration at different stages, the sludge concentration meter can give continuous and accurate measurement results.
Features：
●LCD colour display screen
●Intelligent menu operation
●Manual or Automatic temperature compensation
●Two sets of relay control switches
●High alarm, low alarm, hysteresis control
●4-20mA & RS485 Multiple output mode
●Concentration,temperature & current value simultaneously displayed in one screen
●Password protection function to prevent misoperation by non-staff
Parameters:
| Measurement range | 0~500~5000mg/L;0~100g/L(Can be extended) |
| Measurement unit | mg/L; g/L |
| Resolution | 0.001mg/L;0.1g/L |
| Basic error | ±1%F.S |
| Temperature | 0~50「 |
| Temperature Resolution | 0.1「 |
| Temperature Basic error | ±0.3「 |
| Current outputs | Two 4~20mA,20~4mA,0~20mA |
| Signal output | RS485 MODBUS RTU |
| Other functions | Data record |
| Three relay control contacts | 5A 250VAC,5A 30VDC |
| Optional power supply | 85~265VAC,9~36VDC,power consumption ≤3W |
| Working conditions | No strong magnetic field interference around except the geomagnetic field. |
| Working temperature | -10~60「 |
| Relative humidity | ≤90% |
| Waterproof rating | IP65 |
| Weight | 0.6kg |
| Dimensions | 98×98×130mm |
| Installation opening size | 92.5×92.5mm |
| Installation methods | Panel & wall mounted or pipeline |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
