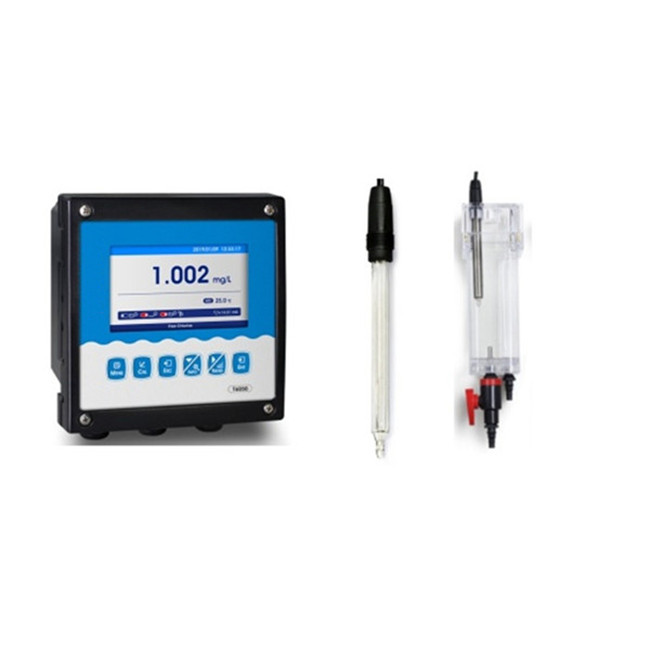

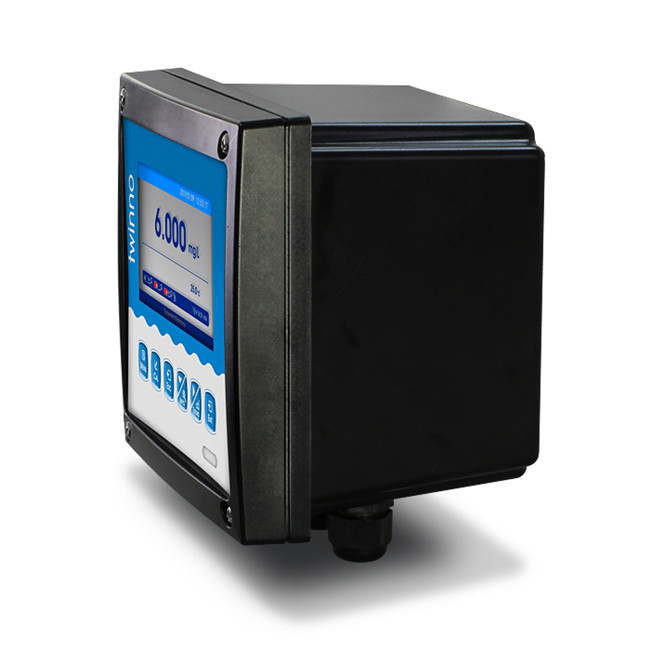

Online Chlorine Dioxide Monitor
Product Name:Online Chlorine Dioxide Monitor
Product model：T4053
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC
Industrial online chlorine dioxide monitor is a water quality online monitor with microprocessor. It is widely used in drinking water treatment plants, drinking water distribution networks, swimming pools, water treatment projects, sewage treatment, water disinfection and other industrial processes.It continuous monitoring and control chlorine dioxide & temperature value in water solution.
Features：
●Color LCD display
●Intelligent menu operation
●Multiple signal output modes
●Two sets of relay control switches
●High alarm & low alarm, hysteresis control
●Chlorine dioxide, temperature and current, etc. displayed in one interface
●Password protection function to prevent misoperation by non-staff
Parameters:
| Measurement range | 0.005 ～20.00mg/L ; 0.005 ～20.00ppm |
| Measurement unit | Potentiometric method |
| Resolution | 0.001mg/L ; 0.001ppm |
| Basic error | ±1%F.S |
| Temperature | - 10~150.0汇( Based on sensor) |
| Temperature Resolution | 0.1汇 |
| Temperature Basic error | ±0.3汇 |
| Current output | 2 groups: 4~20mA |
| Signal output | RS485 Modbus RTU |
| Other functions | Data record &Curve display |
| Three relay control contacts | 2 groups:5A 250VAC,5A 30VDC |
| Optional power supply | 85~265VAC,9~36VDC,power consumption≤3W |
| Working conditions | No strong magnetic field interference around except the geomagnetic field. |
| Working temperature | - 10~60汇 |
| Relative humidity | ≤90% |
| Waterproof rating | IP65 |
| Weight | 0.6kg |
| Dimensions | 98×98×130mm |
| Installation opening size | 92.5×92.5mm |
| Installation methods | Panel & wall mounted or pipeline |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
