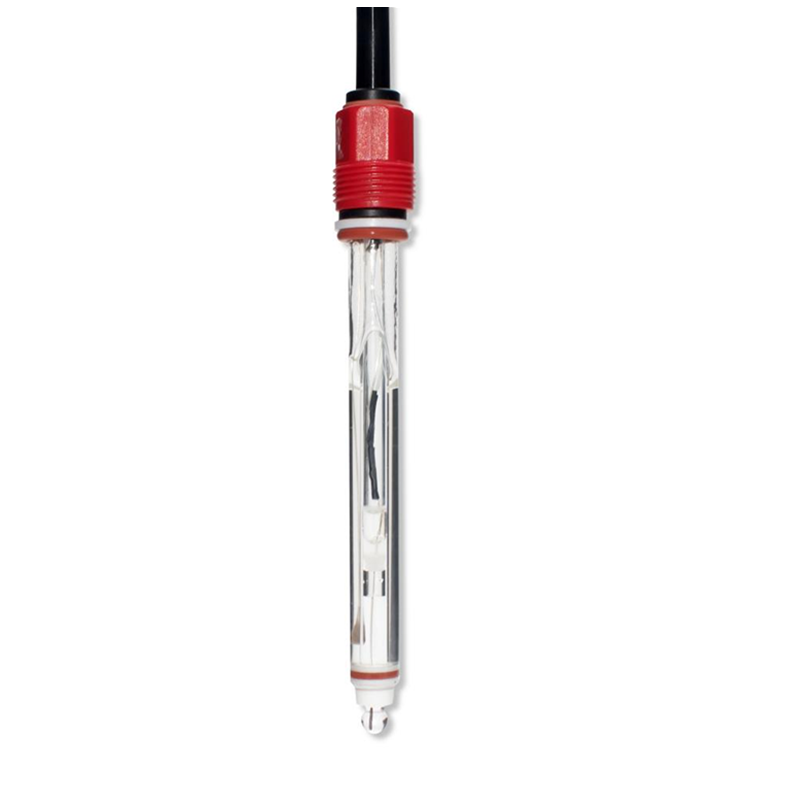

CS1545MD Digital pH Sensor
Product Name:Digital RS485 pH Sensor Electrode
Product model：CS1545MD
Product brand：FLUIDINGS
Power supply voltage: 9~36VDC/RS485 MODBUS RTU
Designed for high temperature and biological fermentation process.
CS1545MD pH electrode adopts the most advanced solid dielectric in the world and large-area PTFE liquid junction. Not easy to block, easy to maintain. The long-distance reference diffusion path greatly prolongs the service life of the electrode in harsh environments. With built-in temperature sensor (Pt100, Pt1000, etc. can be selected according to user requirements) and wide temperature range, it can be used in explosion-proof areas.
Features
1, Take use of ceramic diaphragm, so that the electricity has a stable liquid connection potential and low resistance characteristics,
anti-blocking, anti-pollution.
2, High temperature resistance, 130℃ steam disinfection (disinfection 30-50 times),
safety and health, in line with the requirements of food hygiene, fast response, stability, long service life.
3, With high temperature disinfection sensitive glass membrane, pH range: 0-14pH, temperature range: - 10-130 ℃,
pressure range or less 0.6 Mpa, zero potential PH = 7.00.
4, The electrode is mainly used for high temperature sterilization of biochemical fermentation of pH value measurement.
| Model No. | CS1545MD |
| Power/Outlet | 9~36VDC/RS485 MODBUS RTU |
| Measure material | Glass |
| Housing material | PPS |
| Waterproof grade | IP68 |
| Measurement range | 0-14pH |
| Accuracy | ±0.05pH |
| Pressure resistance | ≤0.6Mpa |
| Temperature compensation | PT1000 |
| Temperature range | 0-130℃ |
| Calibration | Sample calibration, standard liquid calibration |
| Connection methods | 4 core cable |
| Cable length | Standard 10m cable, can be extended to 100m |
| Installation thread | PG13.5 |
| Application | High temperature and biological fermentation process. |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
