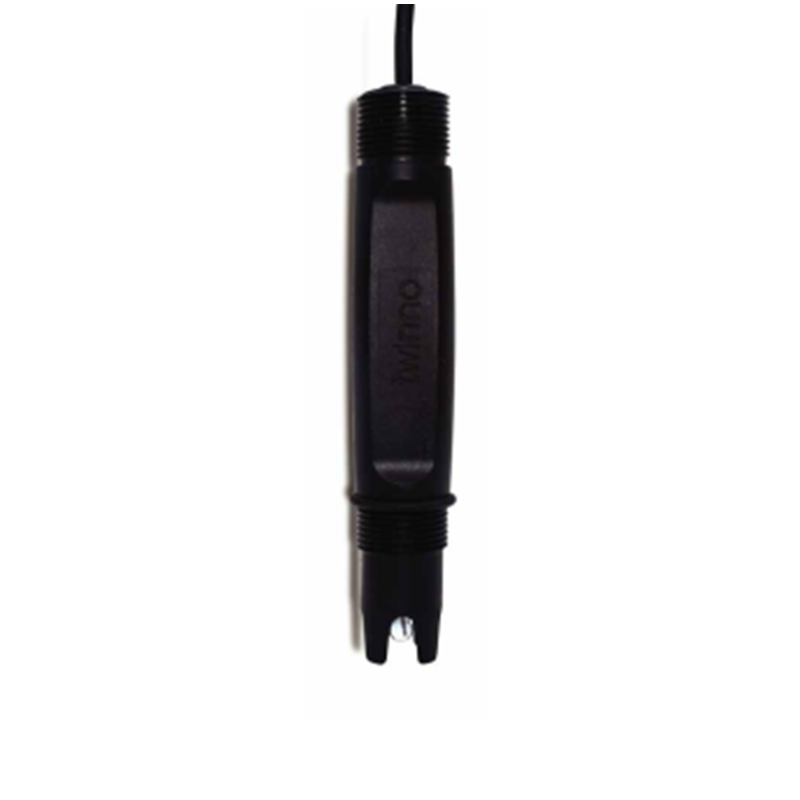

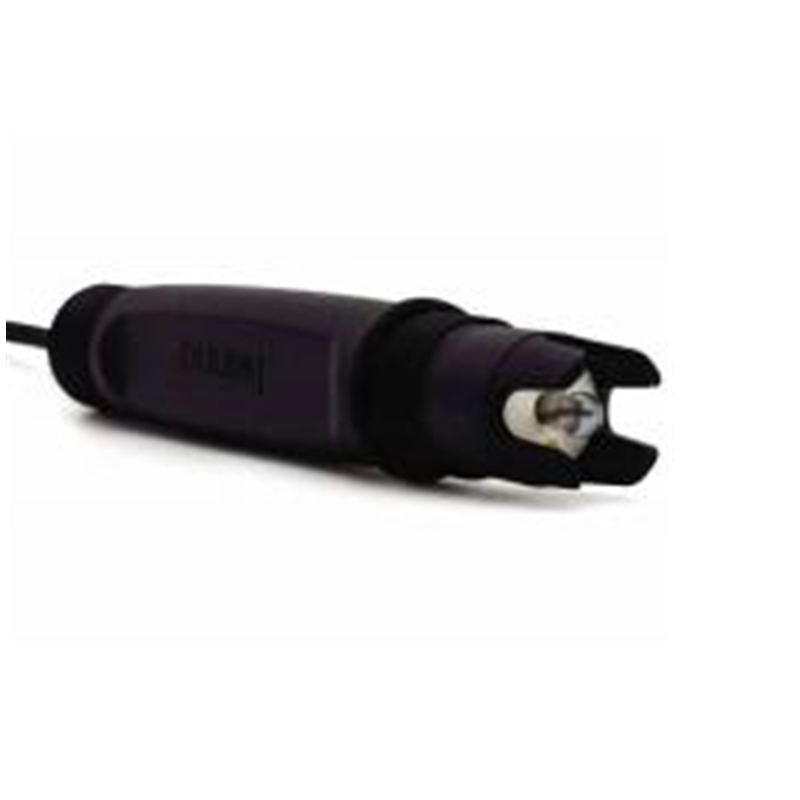

CS1701D Digital pH Sensor

Product Name: Digital pH Sensor

Product model: CS1701D

Product brand:FLUIDINGS

Power supply voltage: 9-36VDC

Designed for water fertilizer machine.

Easy to connect to PLC, DCS, industrial control computers, general purpose controllers,

paperless recording instruments or touch screens and other third party devices.


DESCRIPTION

Features


1.CS1701D pH electrode adopt the most advanced solid dielectric in the world and large-area PTFE liquid junction. Not easy to block, easy to maintain.



2.The long-distance reference diffusion path greatly prolongs the service life of the electrode in harsh environments. With built-in temperature sensor (NTC10K, Pt100, Pt1000, etc. can be selected according to user requirements) and wide temperature range, it can be used in explosion-proof areas.



3.The newly designed glass bulb increases the bulb area, prevents the generation of interfering bubbles in the internal buffer, and makes the measurement more reliable. Adopt PPS/PP shell, upper and lower 3/4NPT pipe thread, easy to install, no need for sheath, and  low installation cost. The electrode is integrated with pH, reference, solution grounding, and temperature compensation.



4.The electrode adopts high-quality low-noise cable, which can make the signal output longer than 20 meters without interference.



5.The electrode is made of ultra-bottom impedance-sensitive glass film, and it also has the characteristics of fast response, accurate measurement, good stability, and not easy to hydrolyze in the case of low conductivity and high purity water.

Model No.CS1701D
Power/Outlet9~36VDC/RS485 MODBUS RTU
Measure materialGlass/silver+ silver chloride
Housing materialPP
Waterproof gradeIP68
Measurement range2-12pH
Accuracy±0.05pH
Pressure resistance≤0.3Mpa
Temperature compensationNTC10K
Temperature range0-80℃
CalibrationSample calibration, standard liquid calibration
Connection methods4 core cable
Cable lengthStandard 10m cable, can be extended to 100m
Installation threadNPT3/4’’
ApplicationGeneral water quality



application area

safety

environmental protection

oil

chemical

pharmaceutical

metallurgy

coal chemical industry

storage
