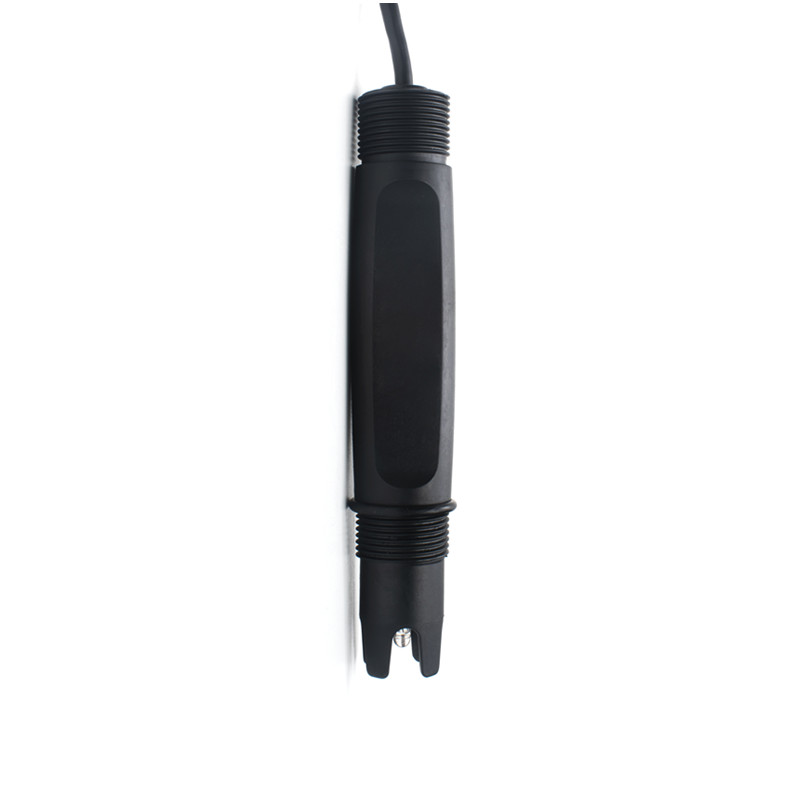

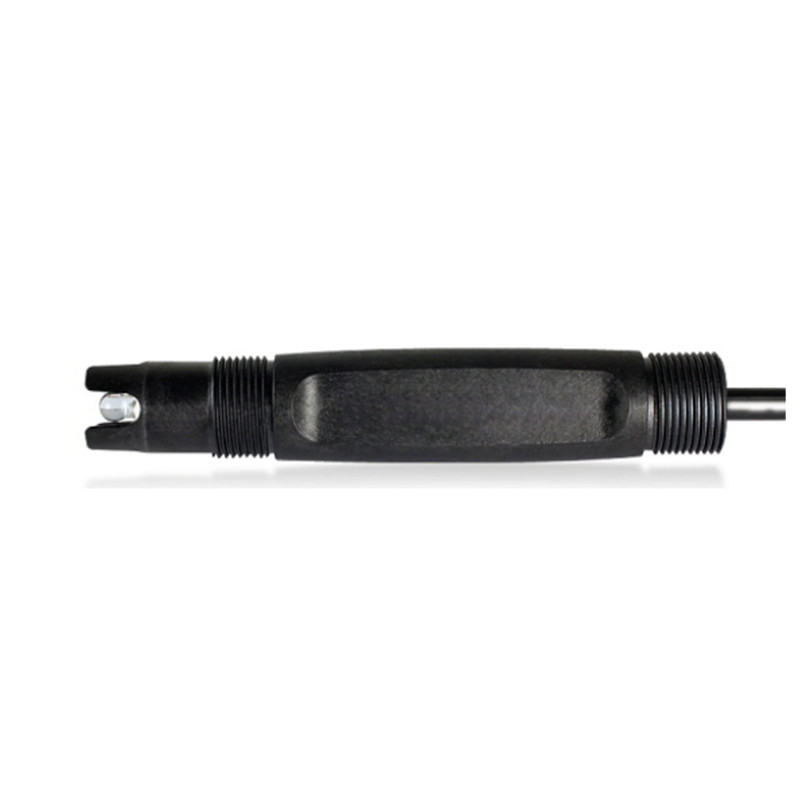

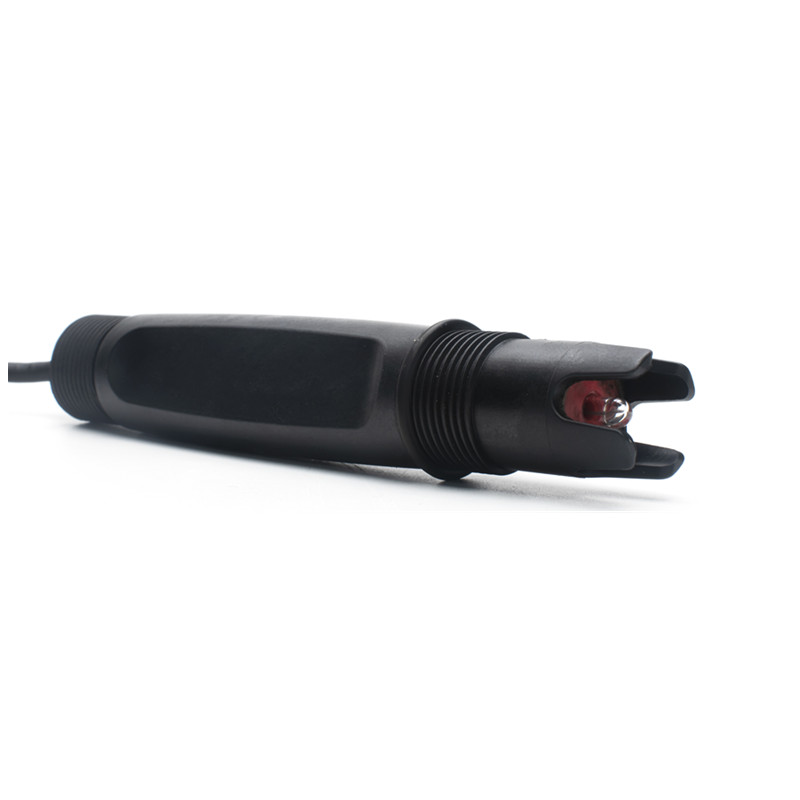

CS1729D Digital pH Sensor

Product Name: Digital pH Sensor

Product model: CS1729D

Product brand:FLUIDINGS

Power supply voltage: 9-36VDC

Designed for seawater environment.

Easy to connect to PLC, DCS, industrial control computers,general purpose controllers,

paperless recording instruments or touch screens and other third party devices.

The outstanding application of SNEX CS1729D pH electrode in seawater pH measurement.






DESCRIPTION

Features:

1. Solid-state liquid junction design: The reference electrode system is a non-porous, solid, non-exchange reference system. Completely avoid various problems caused by the exchange and blockage of the liquid junction,such as the reference electrode is easy to be polluted, reference vulcanization poisoning, reference loss and other problems.



2. Anti-corrosion material: In the strongly corrosive seawater, the SNEX CS1729D pH electrode is made of marine titanium alloy material to ensure the stable performance of the electrode.



3. The measurement data is stable and accurate: In the seawater environment, the reference electrode maintains high efficiency and stable performance, and the measuring electrode is specially designed for corrosion resistance. It ensures the stable and reliable measurement of the pH value process.



4. Low maintenance workload: Compared with ordinary electrodes, SNEX CS1729D pH electrodes only need to be calibrated once every 90 days. The service life is at least 2-3 times longer than that of ordinary electrodes.


Model No.CS1729D
Power/Outlet9~36VDC/RS485 MODBUS RTU
Measure materialGlass/silver+ silver chloride
Housing materialPP
Waterproof gradeIP68
Measurement range0-14pH
Accuracy±0.05pH
Pressure resistance≤0.6Mpa
Temperature compensationNTC10K
Temperature range0-80℃
CalibrationSample calibration, standard liquid calibration
Connection methods4 core cable
Cable lengthStandard 10m cable, can be extended to 100m

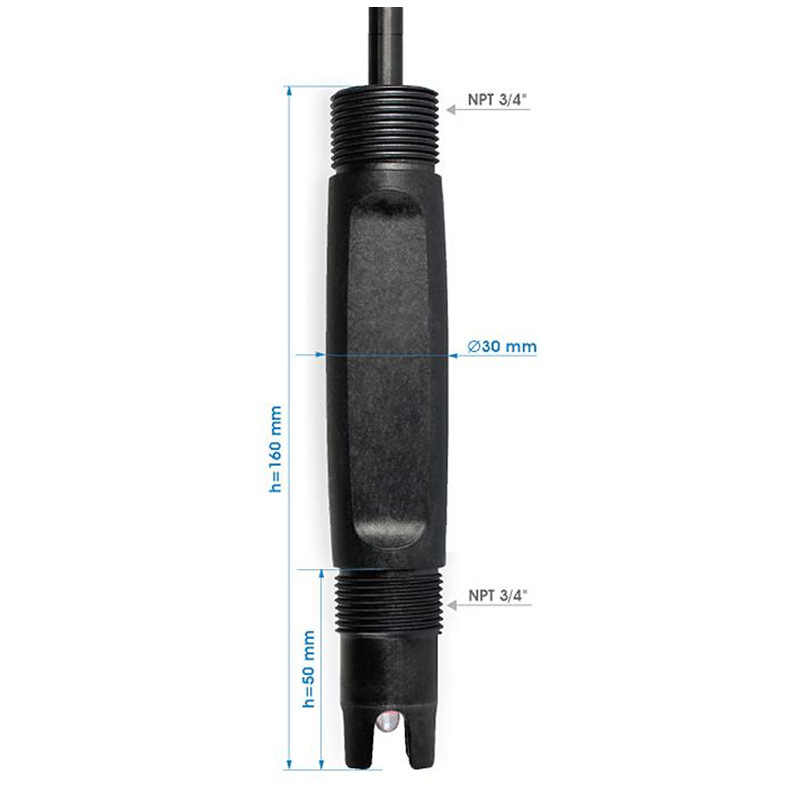

Installation threadNPT3/4’’
ApplicationSeawater



application area

safety

environmental protection

oil

chemical

pharmaceutical

metallurgy

coal chemical industry

storage
