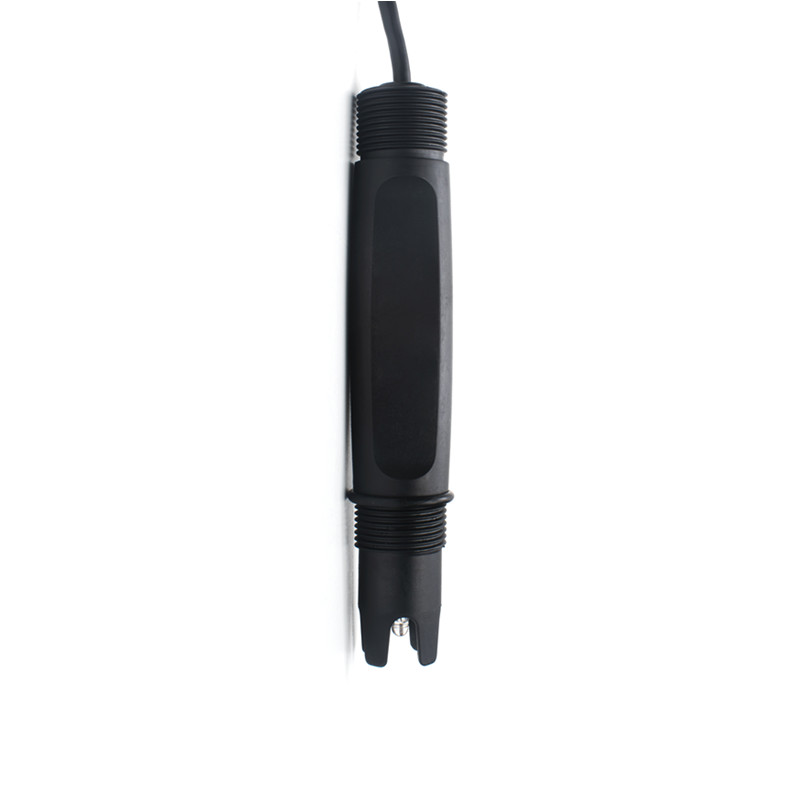

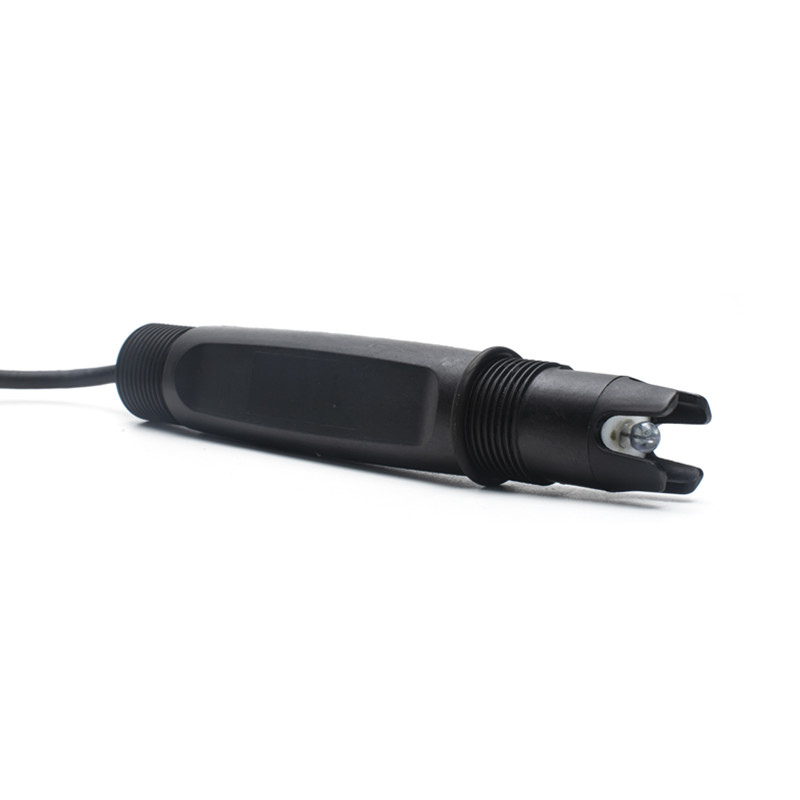

CS1768D Digital pH Sensor
Product Name: Digital pH Sensor
Product model: CS1768D
Product brand：FLUIDINGS
Power supply voltage: 9-36VDC
Designed for viscous fluids, protein environment, silicate, chromate, cyanide, NaOH, seawater, brine, petrochemical, natural gas liquids, high-pressure environment.Easy to connect to PLC, DCS, industrial control computers, general purpose controllers, paperless recording instruments or touch screens and other third party devices.
Features:
1. Double salt bridge design, double layer seepage interface, resistant to medium reverse seepage.
2. The ceramic hole parameter electrode seeps out of the interface, which is not easy to be blocked.
3. High-strength glass bulb design, the glass appearance is stronger.
4. Large sensing bulbs increase the ability to sense hydrogen ions, and perform well in complex environment.
5. The electrode material PP has high impact resistance, mechanical strength and toughness, resistance to a variety of organic solvents and acid and alkali corrosion.
6. Digital sensor with strong anti-interference ability, high stability and long transmission distance.
| Model No. | CS1768D |
| Power/Outlet | 9~36VDC/RS485 MODBUS RTU |
| Measure material | Glass/silver+ silver chloride; SNEX |
| Housing material | PP |
| Waterproof grade | IP68 |
| Measurement range | 0-14pH |
| Accuracy | ±0.05pH |
| Pressure resistance | -1.0~2.0Mpa |
| Temperature compensation | NTC10K |
| Temperature range | 0-90℃ |
| Calibration | Sample calibration, standard liquid calibration |
| Connection methods | 4 core cable |
| Cable length | Standard 10m cable, can be extended to 100m |

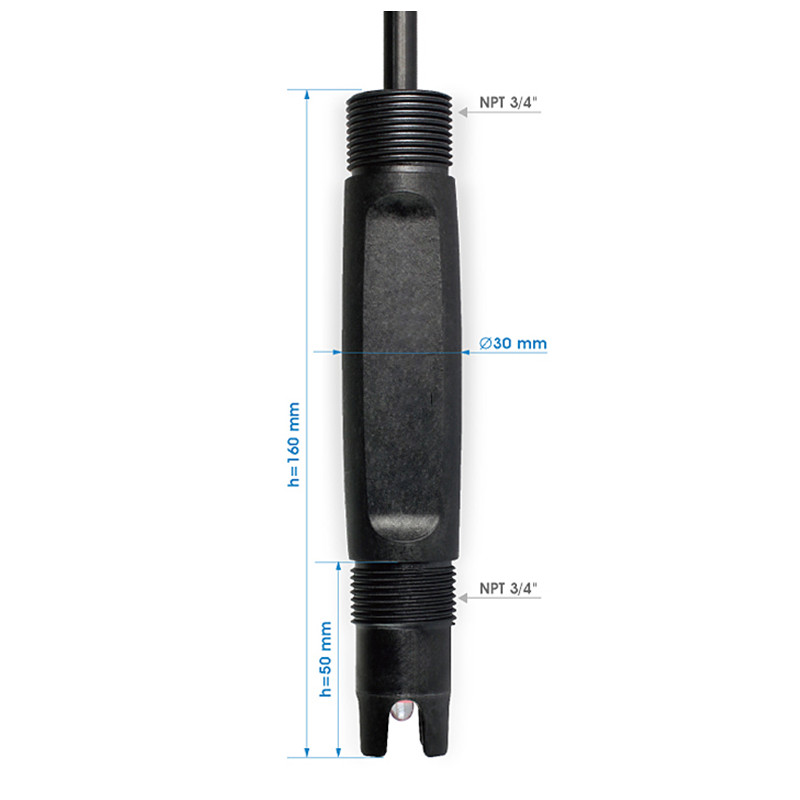

| Installation thread | NPT3/4’’ |
| Application | High pressure, complex working conditions |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
