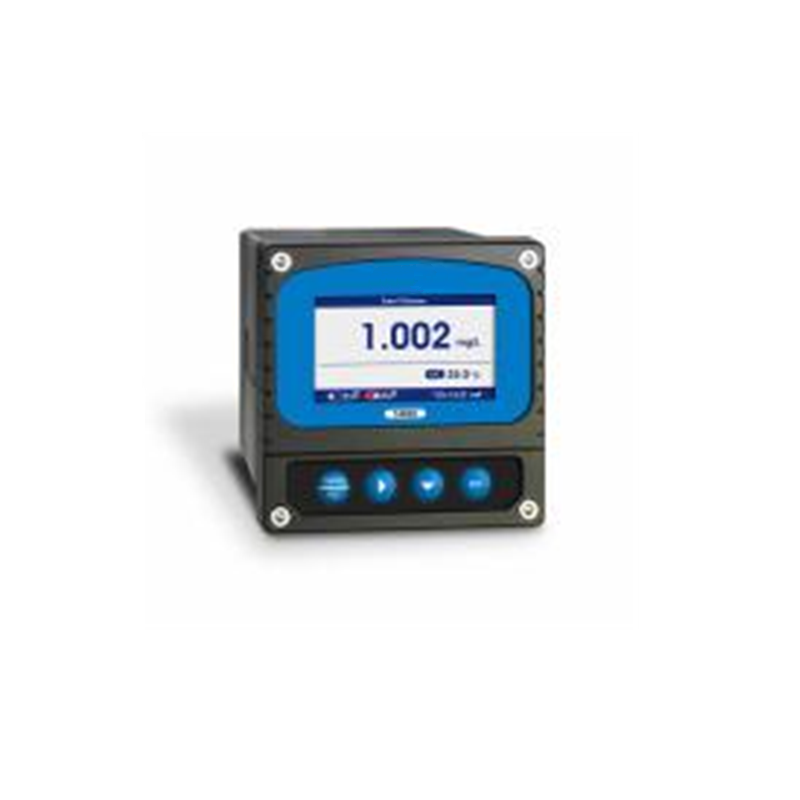

Digital Free Chlorine Controller SC4050

Product Name:Digital  Free Chlorine Controller

Product modelSC4050

Product brand:FLUIDINGS

Power supply voltage: 9~36VDC

This instrument is widely used in online monitoring of water supply,tap water, rural drinking water,circulating water,washing film water,disinfectant water, pool water. and other industrial processes.It continuous monitoring and control residual chlorine and temperature value in aqueous solution.


DESCRIPTION

Features:

1. Large display, standard 485 communication, with online and offline alarm,

98*98*130mm meter size, 92.5*92.5mm hole size,3.0 inch large screen display.


2. Historical curve: The residual chlorine measurement data can be stored automatically every 5 minutes,

and the residual chlorine value can be stored continuously for a month. Provide standard solution calibration and field calibration.


3. Built-in various measurement functions, one machine with multiple functions,

meeting the requirements of various measurement standards.


4. The design of the whole machine is waterproof and dustproof,and the back cover of the connection terminal is

added to extend the service life in harsh environments.


5. Panel/wall/pipe installation, three options are available to meet various industrial site installation requirements.


Measurement range0.05 ~20.00mg/L ; 0.05 ~20.00ppm
Measurement unitPotentiometric method
Resolution0.001mg/L ; 0.001ppm
Basic error±1%F.S
Temperature


-10~150.0℃(  Based on sensor)
Temperature Resolution0.1℃
Temperature Basic error±0.3℃
Current output2 groups: 4~20mA
Signal outputRS485 Modbus RTU
Other functionsData record &Curve display
Three relay control contacts2 groups:5A 250VAC,5A 30VDC
Optional power supply85~265VAC,9~36VDC,power consumption≤3W
Working conditionsNo strong magnetic field interference around except the geomagnetic field.
Working temperature-10~60℃
Relative humidity≤90%
Waterproof ratingIP65
Weight0.6kg

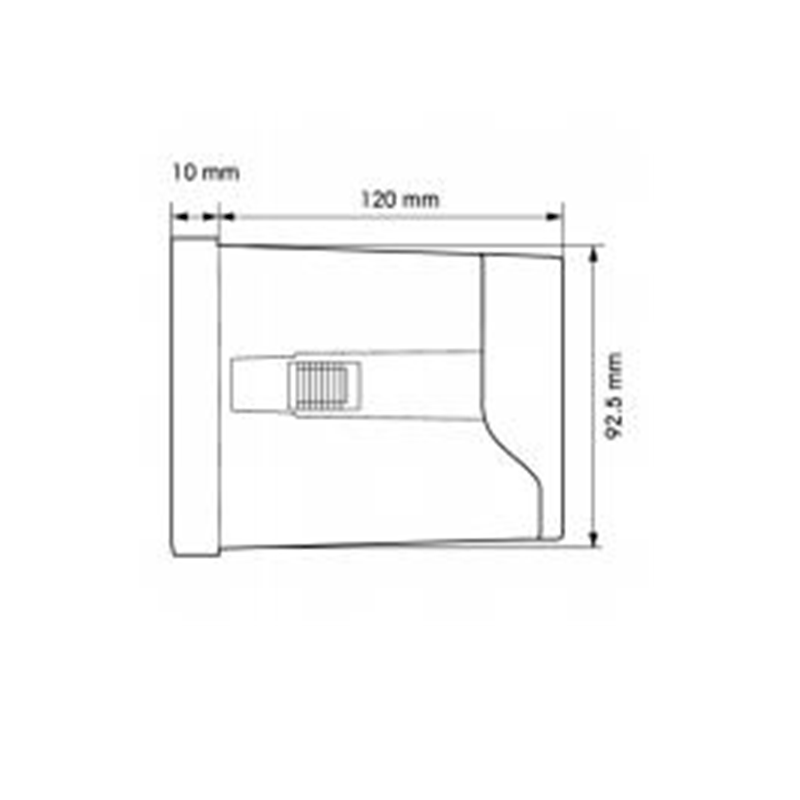

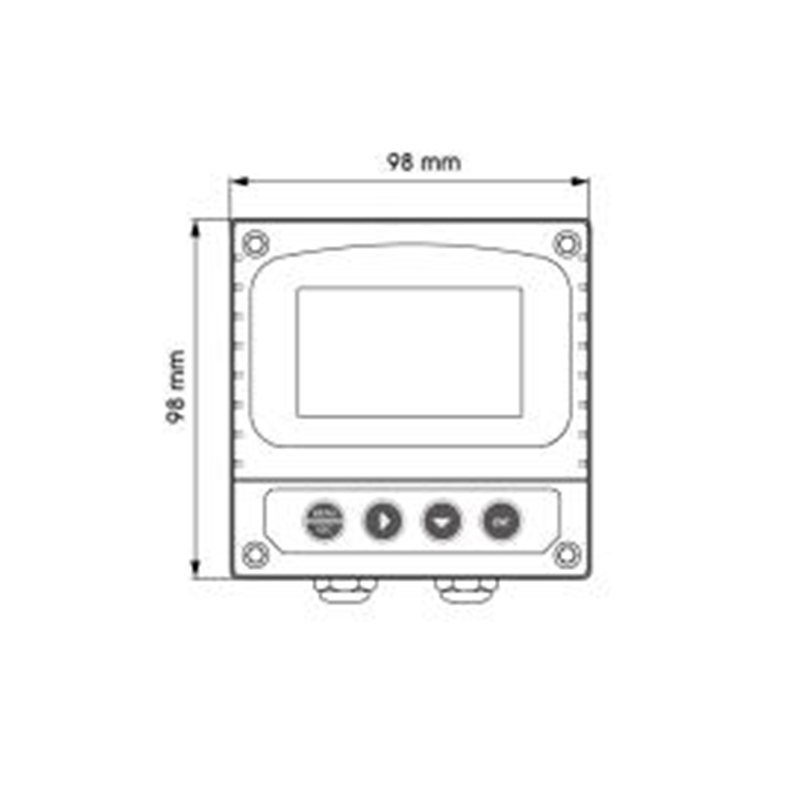

Dimensions98×98×130mm
Installation opening size92.5×92.5mm
Installation methodsPanel & wall mounted or pipeline



application area

safety

environmental protection

oil

chemical

pharmaceutical

metallurgy

coal chemical industry

storage
