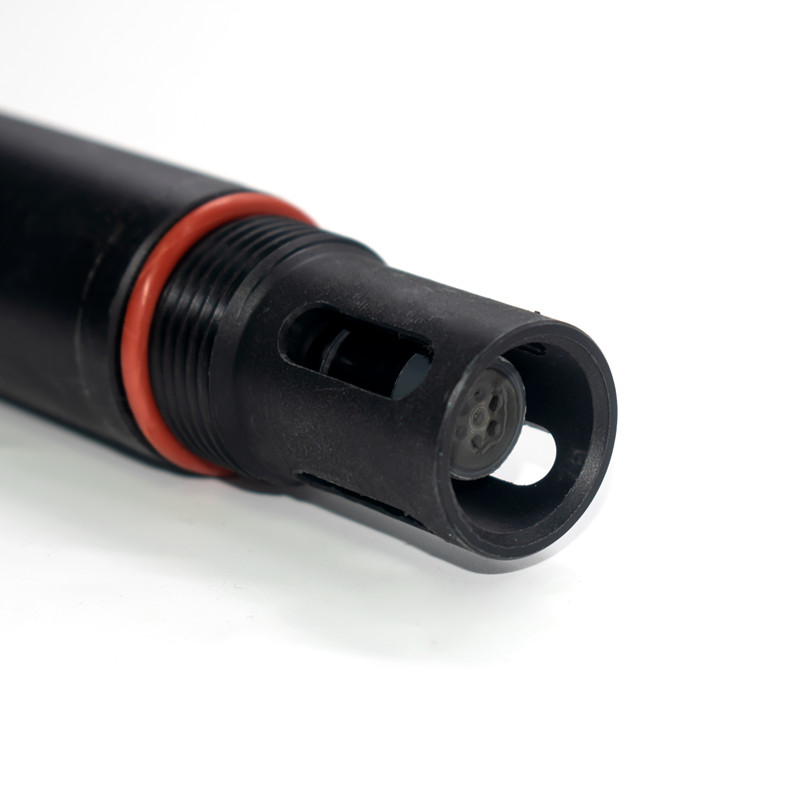

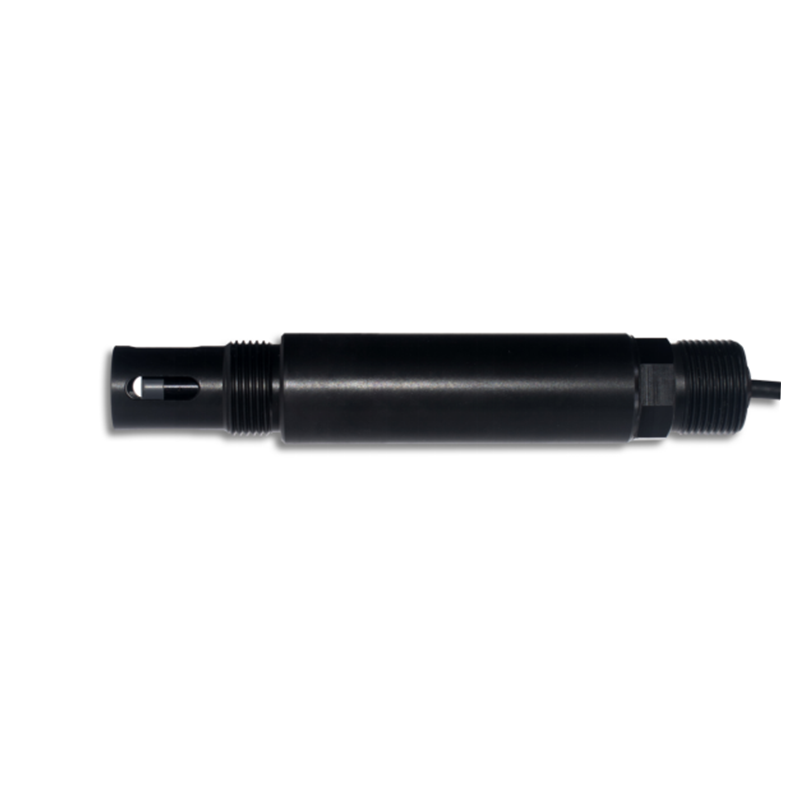

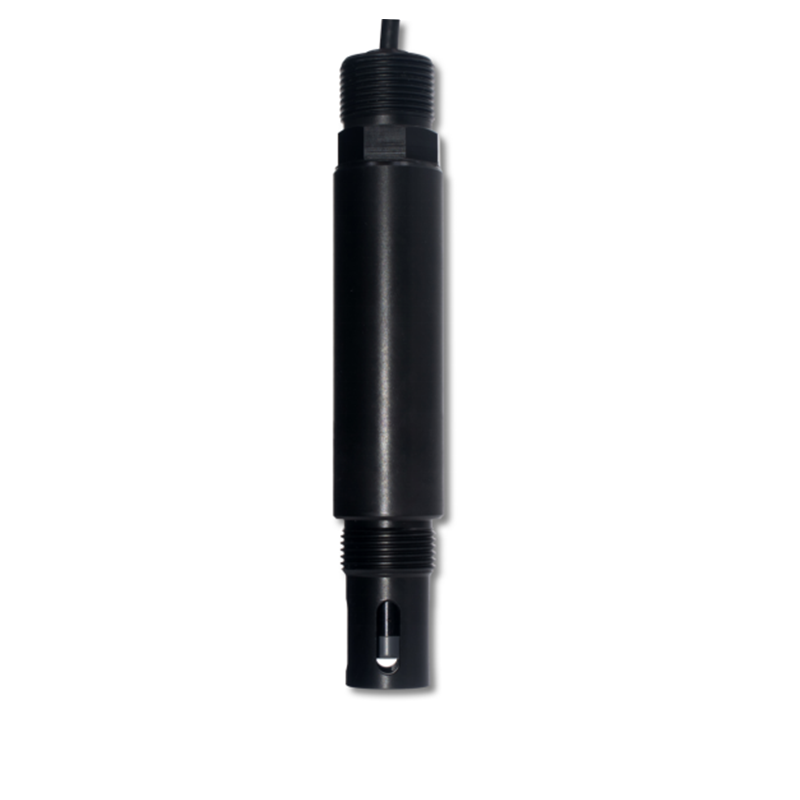

Digital ISE Sensor Series CS6718AD
Product Name: Digital ISE Sensor Series
Product model: CS6718AD
Product brand：FLUIDINGS
Power supply voltage: 9-36VDC
Easy to connect to PLC, DCS, industrial control computers, general purpose controllers, paperless recording instruments or touch screens and other third party devices. The CS6718AD potassium ion selective electrode is an effective method to measure the potassium ion content in the sample. Potassium ion selective electrodes are also often used in online instruments, such as industrial online potassium ion content monitoring , Potassium ion selective electrode has the advantages of simple measurement, fast and accurate response. It can be used with PH meter, ion meter and online potassium ion analyzer, and also used in electrolyte analyzer, and ion selective electrode detector of flow injection analyzer.
Features:
1.large sensitive area fast response, stable signal
2.PP material，Work well at 0~50℃。
3.The lead is made of pure copper, which can directly realize remote transmission, which is more accurate and stable than the lead signal of copper-zinc alloy.
| Parameter | CS6718AD |
| Measured Range | 0~1000mg/L(Customizable) |
| Principle | Ion selective sensor |
| Temp Range | 0-50℃ |
| Output Signal | RS485 or 4-20mA |
| Pressure Range | 0—0.1MPa |
| Temperature Sensor | NTC10K |
| Housing Materials | PP+PVC |
| Membrane Resistance | ＜500MΩ |
| Calibration | Standard liquid calibration |
| Accuracy | ±2.5% |
| Resolution | 0.1mg/L |
| Connection method | 4 or 6 core cable |
| Threaded connection | NPT3/4’’ |
| Cable Length | 10m or Customize |
| Wire Connection | Pin, BNC or Customize |
application area
safety
environmental protection
oil
chemical
pharmaceutical
metallurgy
coal chemical industry
