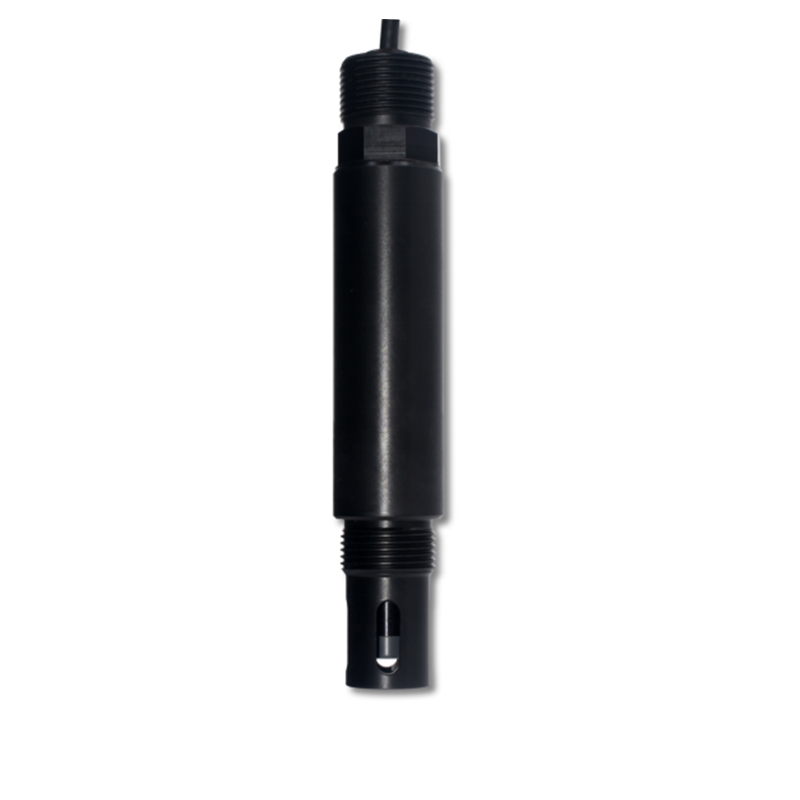

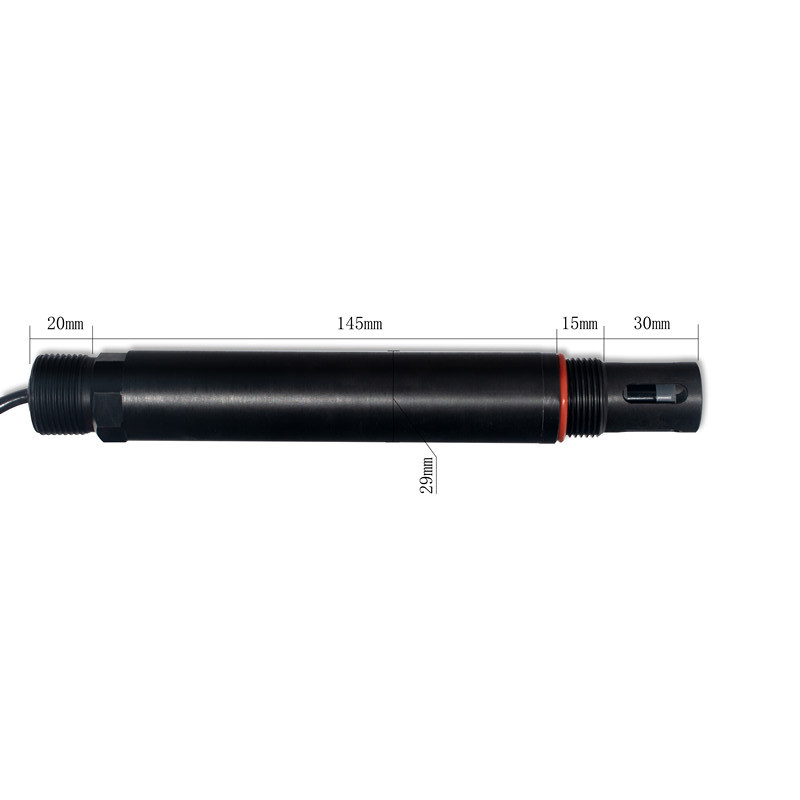

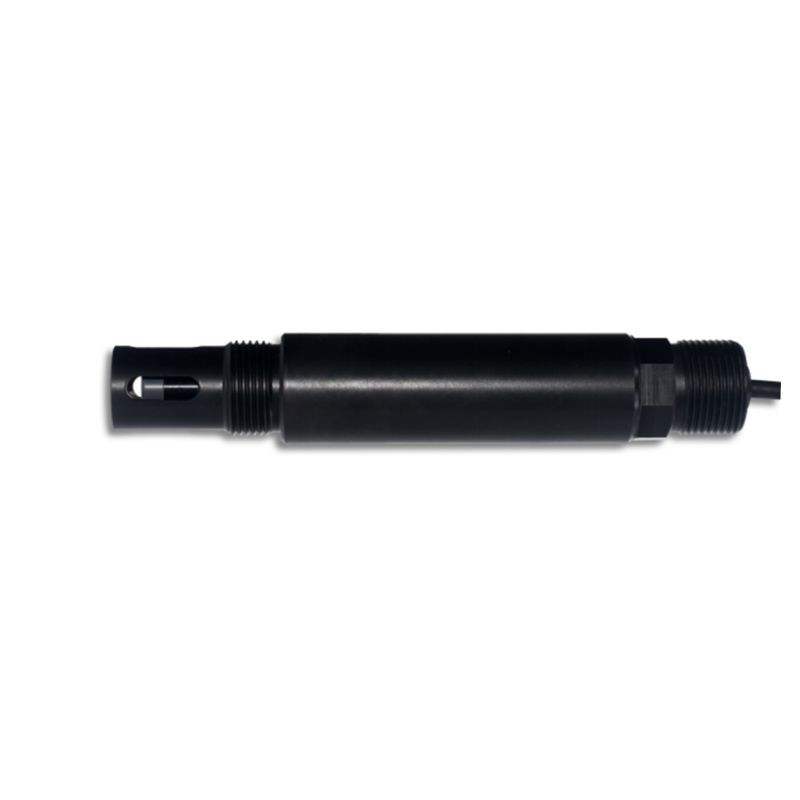

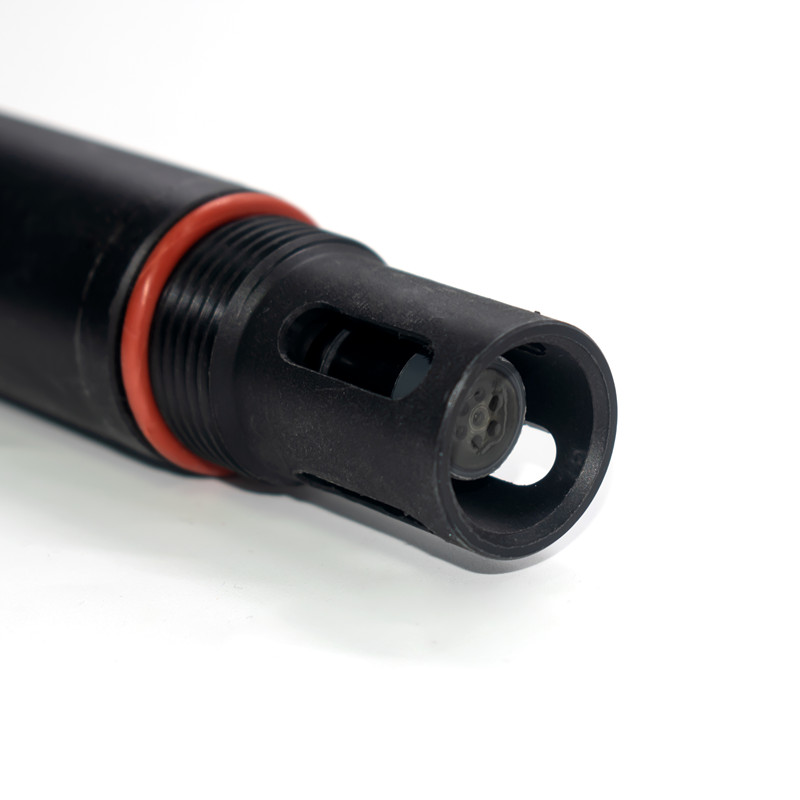

CS6720AD Digital ISE Sensor Series

Product Name: Digital ISE Sensor Series

Product model: CS6720AD

Product brand:FLUIDINGS

Power supply voltage: 9-36VDC

CS6720AD digital nitrate ion selective electrode is a kind of electrochemical sensor that uses membrane potential to measure the activity or concentration of ions in the solution. When it comes into contact with the solution containing the ions which are to be measured, it will generate contact with the sensor at the interface between its sensitive membrane and the solution. Ion activity is directly related to membrane potential. Ion selective electrodes are also called membrane electrodes.This type of electrode has a special electrode membrane that selectively responds to specific ions. The relationship between the  potential of the electrode membrane and the ion content to be measured conforms to theNernst formula. This type of electrode  has the characteristics of good selectivity and short equilibrium time, making it the most commonly used indicator electrode for potential analysis.




DESCRIPTION

Features:


1.large sensitive area fast response, stable signal

2.PP material,Work well at 0~50℃。

3.The lead is made of pure copper, which can directly realize remote transmission, which is more accurate and stable than the lead signal of copper-zinc alloy.

ParameterCS6720AD
Measured   Range0~1000mg/L(Customizable)
PrincipleIon selective sensor
Temp Range0-50℃
Output   SignalRS485 or 4-20mA
Pressure Range0—0.1MPa
Temperature SensorNTC10K
Housing MaterialsPP+PVC
Membrane Resistance<500MΩ
CalibrationStandard liquid calibration
Accuracy±2.5%
Resolution0.1mg/L
Connection method4 or 6 core cable
Threaded connectionNPT3/4’’
Cable Length10m or Customize
Wire ConnectionPin, BNC or Customize


application area

safety

environmental protection

oil

chemical

pharmaceutical

metallurgy

coal chemical industry

storage
