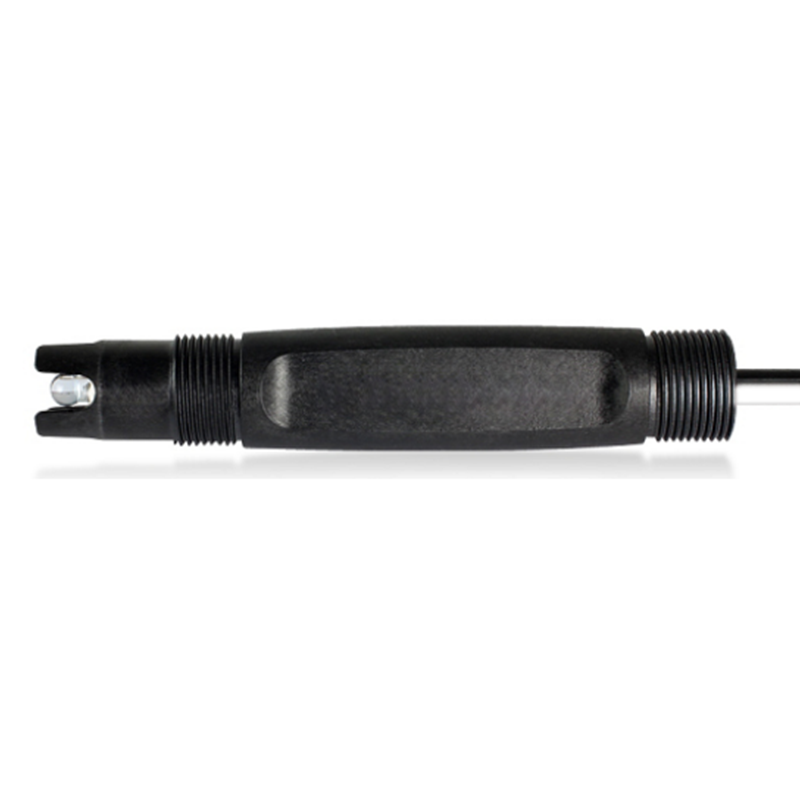

CS2768D Digital ORP Sensor

Product Name: Digital ORP Sensor

Product model: CS2768D

Product brand:FLUIDINGS

Power supply voltage: 9-36VDC

Designed for viscous fluids, protein environment, silicate, chromate, cyanide, NaOH, seawater, brine, petrochemical, natural gas liquids, high-pressure environment.Easy to connect to PLC, DCS, industrial control computers, general purpose controllers, paperless recording instruments or touch screens and other third party devices.




DESCRIPTION

Features:

1.Double salt bridge design, double layer seepage interface, resistant to medium reverse seepage.

2.The ceramic hole parameter electrode seeps out of the interface, which is not easy to be blocked.

3.High-strength glass bulb design, the glass appearance is stronger.

4.Large sensing bulbs increase the ability to sense hydrogen ions, and perform well in complex environment.

5.The electrode material PP has high impact resistance, mechanical strength and toughness, resistance to a variety of organic solvents and acid and alkali corrosion.

6.Digital sensor with strong anti-interference ability, high stability and long transmission distance.

Model No.CS2768D
Power/Outlet9~36VDC/RS485 MODBUS RTU
Measure materialGlass/silver+ silver chloride; SNEX
Housing materialPP
Waterproof gradeIP68
Measurement range±1000mV
Accuracy±0.1mV
Pressure resistance-1.0~2.0Mpa
Temperature compensationNTC10K
Temperature range0-90℃
CalibrationSample calibration, standard liquid calibration
Connection methods4 core cable
Cable lengthStandard 10m cable, can be extended to 100m

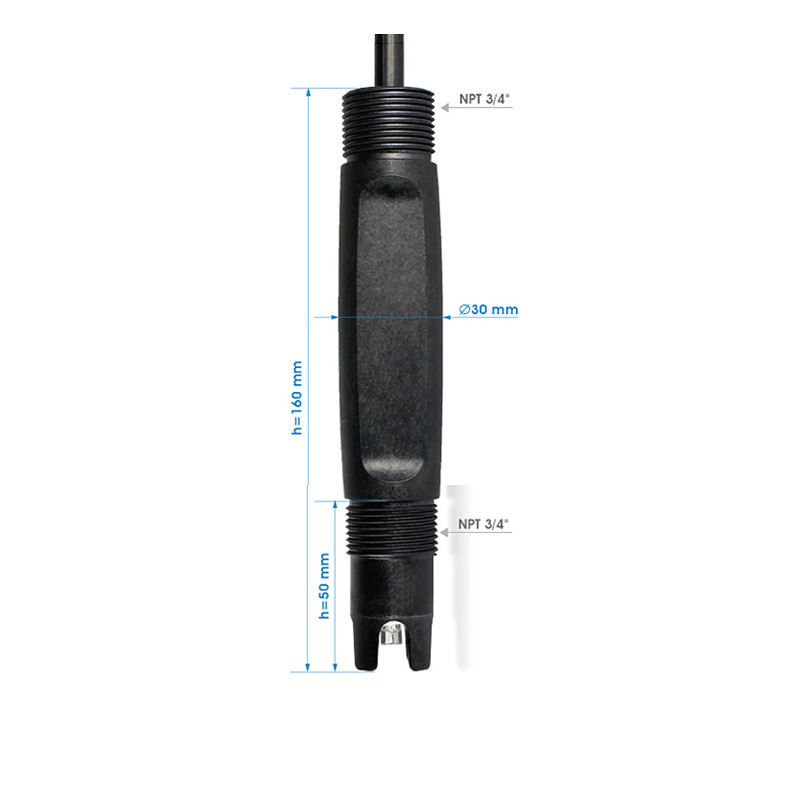

Installation threadNPT3/4’’
ApplicationHigh pressure, complex working conditions


application area

safety

environmental protection

oil

chemical

pharmaceutical

metallurgy

coal chemical industry
